| CPU | Intel |
| Socket | LGA1700 |

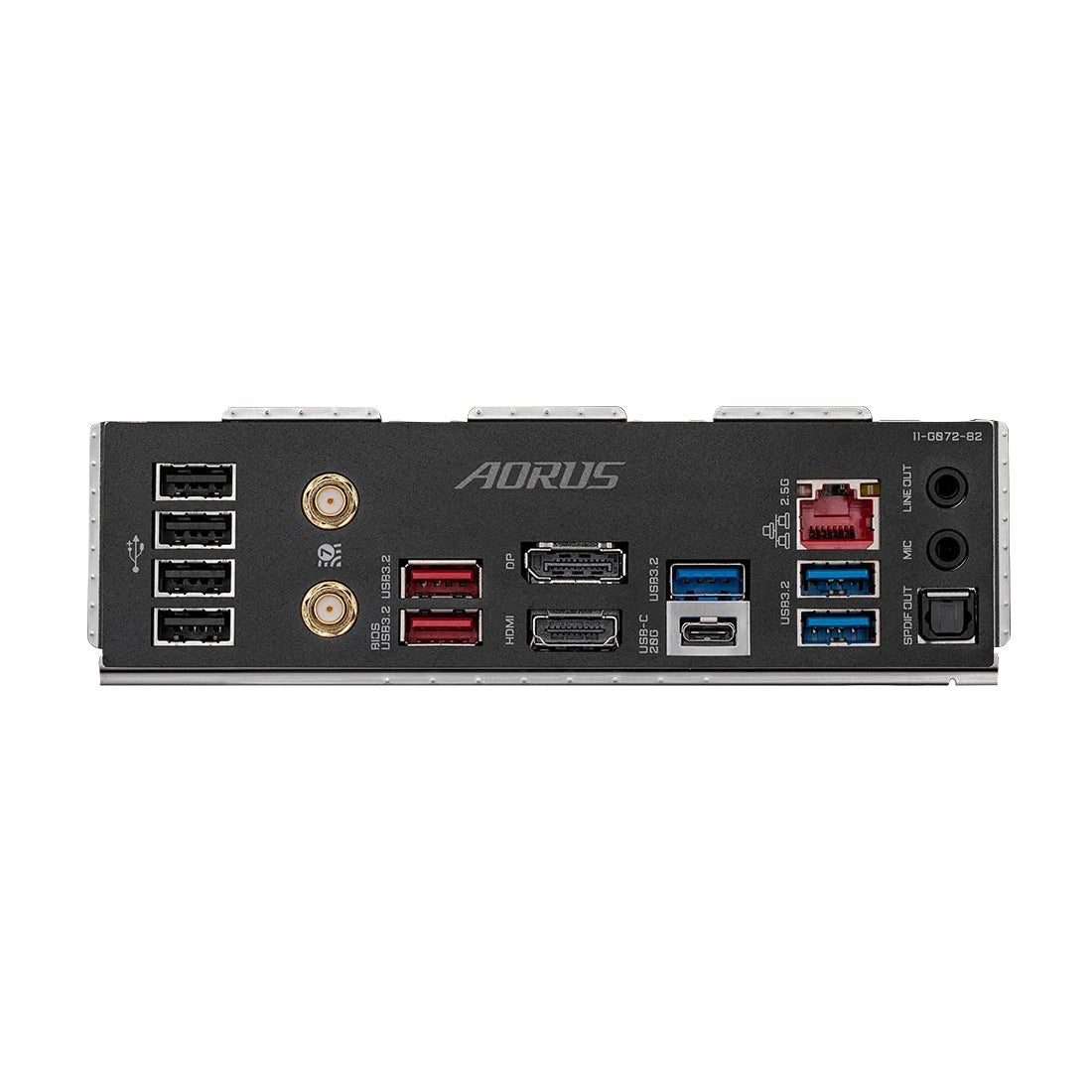

| Back Panel I/O | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support |
| | 2 x USB 3.2 Gen 2 Type-A ports (red) |
| | 3 x USB 3.2 Gen 1 ports |
| | 4 x USB 2.0/1.1 ports |
| | 2 x SMA antenna connectors (2T2R) jk |
| | 1 x HDMI port |
| | 1 x DisplayPort |
| | 1 x RJ-45 port |
| | 1 x optical S/PDIF Out connector |
| | 2 x audio jacks |
| Memory Slots | 4 x DDR5 |
| Storage Expansion | CPU: |
| | - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
| | be sure to install it in the PCIEX16 slot. |
| | Chipset: |
| | - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 |
| | (PCIEX4_1/PCIEX4_2) |
| Internal I/O | 1 x 24-pin ATX main power connector |
| | 2 x 8-pin ATX 12V power connectors |
| | 1 x CPU fan header |
| | 1 x CPU fan/water cooling pump header |
| | 3 x system fan headers |
| | 1 x system fan/water cooling pump header |
| | 3 x addressable RGB Gen2 LED strip headers |
| | 1 x RGB LED strip header |
| | 4 x M.2 Socket 3 connectors |
| | 6 x SATA 6Gb/s connectors |
| | 1 x front panel header |
| | 1 x front panel audio header |
| | 1 x USB Type-C® header, with USB 3.2 Gen 2 support |
| | 1 x USB 3.2 Gen 1 header |
| | 2 x USB 2.0/1.1 headers |
| | 2 x Thunderbolt™ add-in card connectors |
| | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ |
| | GC-TPM2.0 SPI V2 module only) |
| | 1 x reset button |
| | 1 x Q-Flash Plus button |
| | 1 x Clear CMOS button |
| | 1 x reset jumper |
| | 1 x Clear CMOS jumper |
| Front Panel I/O | Chipset: |
| | - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support |
| | - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the |
| | internal USB header |
| | - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
| | - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available |
| | through the internal USB header) |
| | Chipset+2 USB 2.0 Hubs: |
| | - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through |
| | the internal USB headers) |
| Audio | Realtek® ALC1220-VB CODEC |
| | High Definition Audio |
| | 2/4/5.1/7.1-channel |
| | * You can change the functionality of an audio jack using the audio software. To configure |
| | 7.1-channel audio, access the audio software for audio settings. |
| | Support for S/PDIF Out |
| Wireless | MediaTek Wi-Fi 7 MT7927, RZ738 (PCB rev. 1.0) |
| | - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands |
| | - BLUETOOTH 5.3 |
| | - Support for 11be 320MHz wireless standard |
| | Intel® Wi-Fi 7 BE200 (PCB rev. 1.1) |
| | - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands |
| | - BLUETOOTH 5.3 |
| | - Support for 11be 320MHz wireless standard |
| | (Actual data rate may vary depending on environment and equipment.) |
| Software | Support for Windows 11 64-bit |
| Dimensions | ATX Form Factor; 30.5cm x 24.4cm |
