Asus ROG Maximus Z690 Extreme Glacial - DDR5 LGA 1700 EATX Intel Motherboard - اللوحة الأم

Availability:
In Stock
Product Code:
10312410
Brand:
ASUS
QAR 4,699.00
Store 974
Update Last Updated: 2025-06-30 16:39:11
Buy Now
Compare this Product

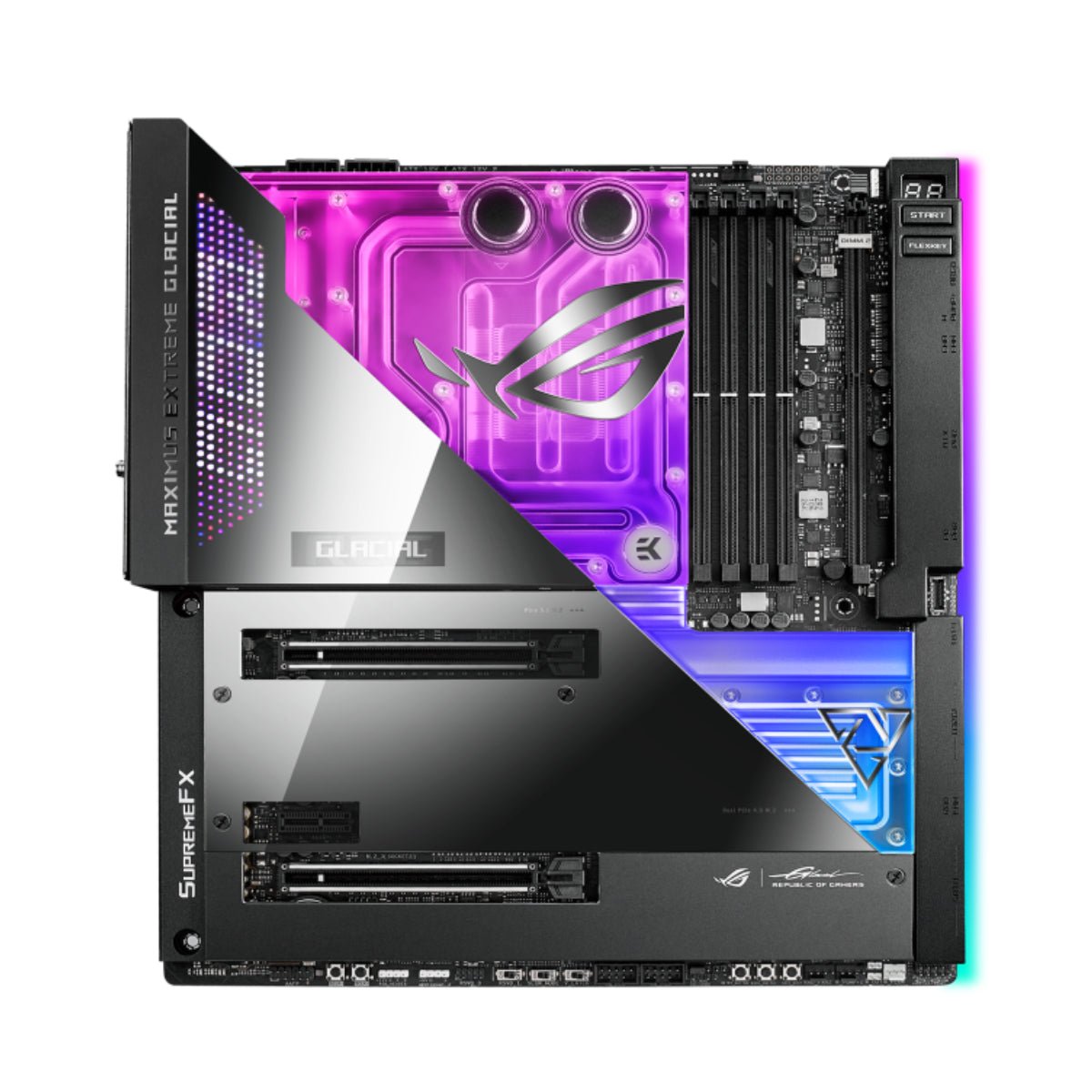

ROG Maximus Z690 Extreme Glacial is the pinnacle of liquid-cooled engineering. It features an eye-catching monolithic cooling system known simply as the EK UltraBlock, which can effortlessly chill the entire motherboard with a carefully engineered labyrinth of water channels, sensors, and heatsinks. The Z690 Extreme Glacial also builds upon knowledge gained from engineering the previous generation to ambitiously expand an already ample landscape of heatsinks and coolant circulation. Two additional M.2 slots now benefit from UltraBlock magic, and VRM cooling has been boosted even further to support the power stages that 12th Gen Intel Core processors can take advantage of.

CPUIntel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
ChipsetIntel Z690
Memory4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 MT/s Non-ECC, Un-buffered Memory
 Dual Channel Memory Architecture
 Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics Outputs1 x HDMI® port
 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs
 *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
PCI SlotsIntel® 12th Gen Processors
 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)br>Intel® Z690 Chipset
 1 x PCIe 3.0 x1 slot
StorageTotal supports 5 x M.2 slots and 6 x SATA 6Gb/s ports
 Intel® 12th Gen Processors
 M.2_1 slot (Key M), type 2242/2260/2280/22110
 - Intel® 12th Gen processors support PCIe 5.0 x4 mode
 M.2_2 slot (Key M), type 2280
 - Intel® 12th Gen processors support PCIe 4.0 x4 mode
 Intel® Z690 Chipset
 M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes)
 DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
 DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
 6 x SATA 6Gb/s ports
Networking1 x Intel® 2.5Gb Ethernet
 Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
 Bluetooth v5.2 hardware ready
AudioROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
 - ESS® SABRE9018Q2C DAC/AMP

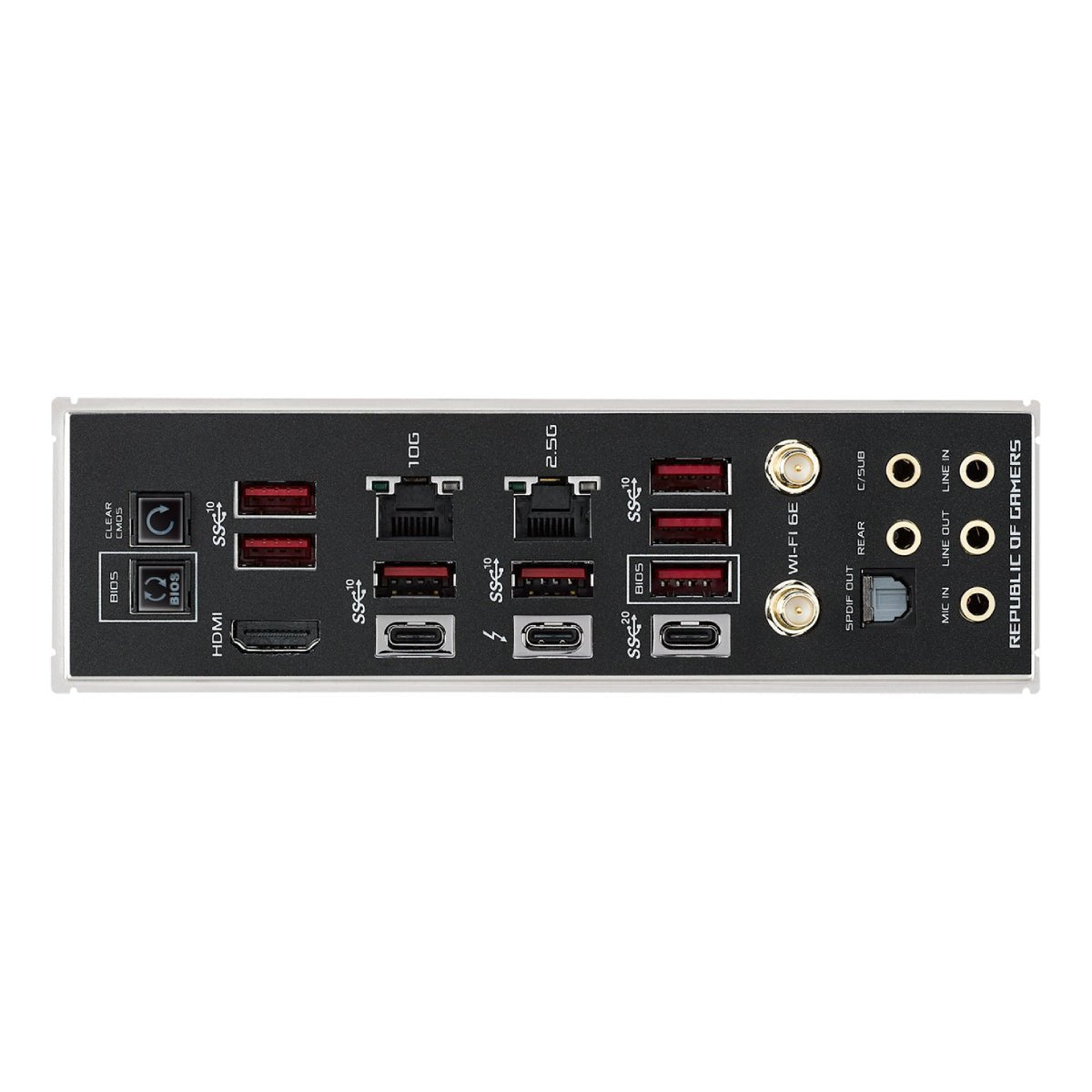

ConnectivityRear:
 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
 Internal
 1 x Thunderbolt™ 4 connector (1 x USB Type-C®)
 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Internal Ports2 x 4-pin Chassis Fan headers
 2 x 4-pin Radiator Fan headers
 2 x W_PUMP+ header
 1 x WB_SENSOR header
 1 x 2-pin Water In header
 1 x 2-pin Water Out header
 1 x 3-pin Water Flow header
 1 x 24-pin Main Power connector
 2 x 8-pin +12V Power connector
 1 x 6-pin PCIe Graphics Card connector
 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
 1 x Addressable Gen 2 header
 1 x AURA RGB header
 1 x WB_ADD header
 1 x BIOS Switch button
 2 x BCLK button
 1 x FlexKey button
 1 x Front Panel Audio header (AAFP)
 1 x LN2 Mode jumper
 1 x Osc sence header
 12 x ProbeIt Measurement Points
 1 x ReTry button
 1 x RSVD switch
 1 x RSVD header
 1 x Safe Boot button
 1 x Slow Mode switch
 1 x Start button
 1 x V_Latch switch
 1 x 10-1 pin System Panel header
 1 x Thermal Sensor header
Form FactorEATX Form Factor - 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )
