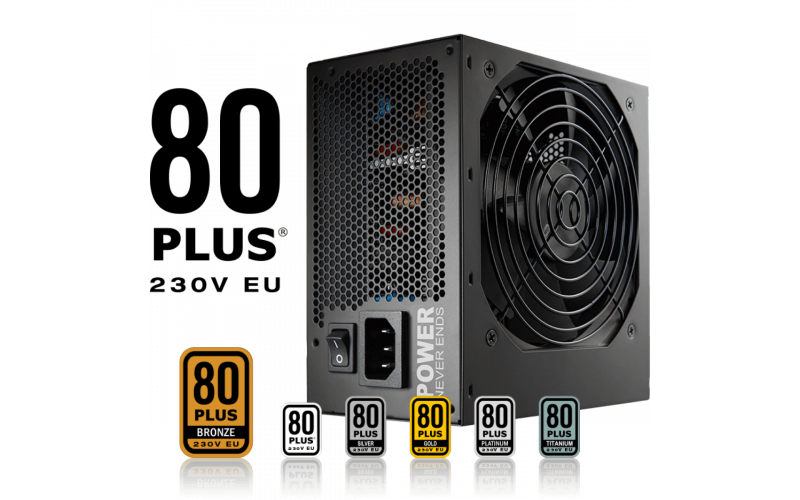

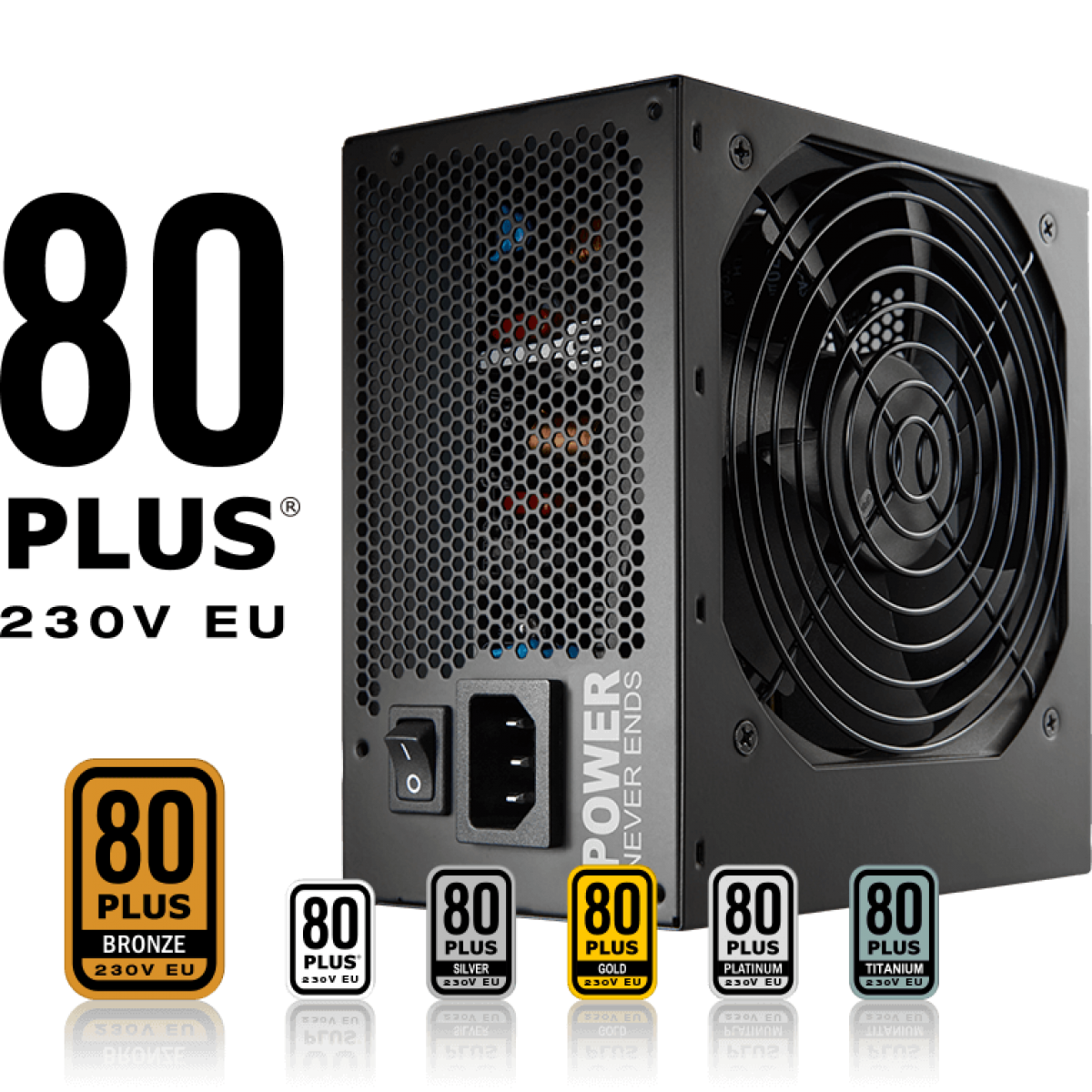

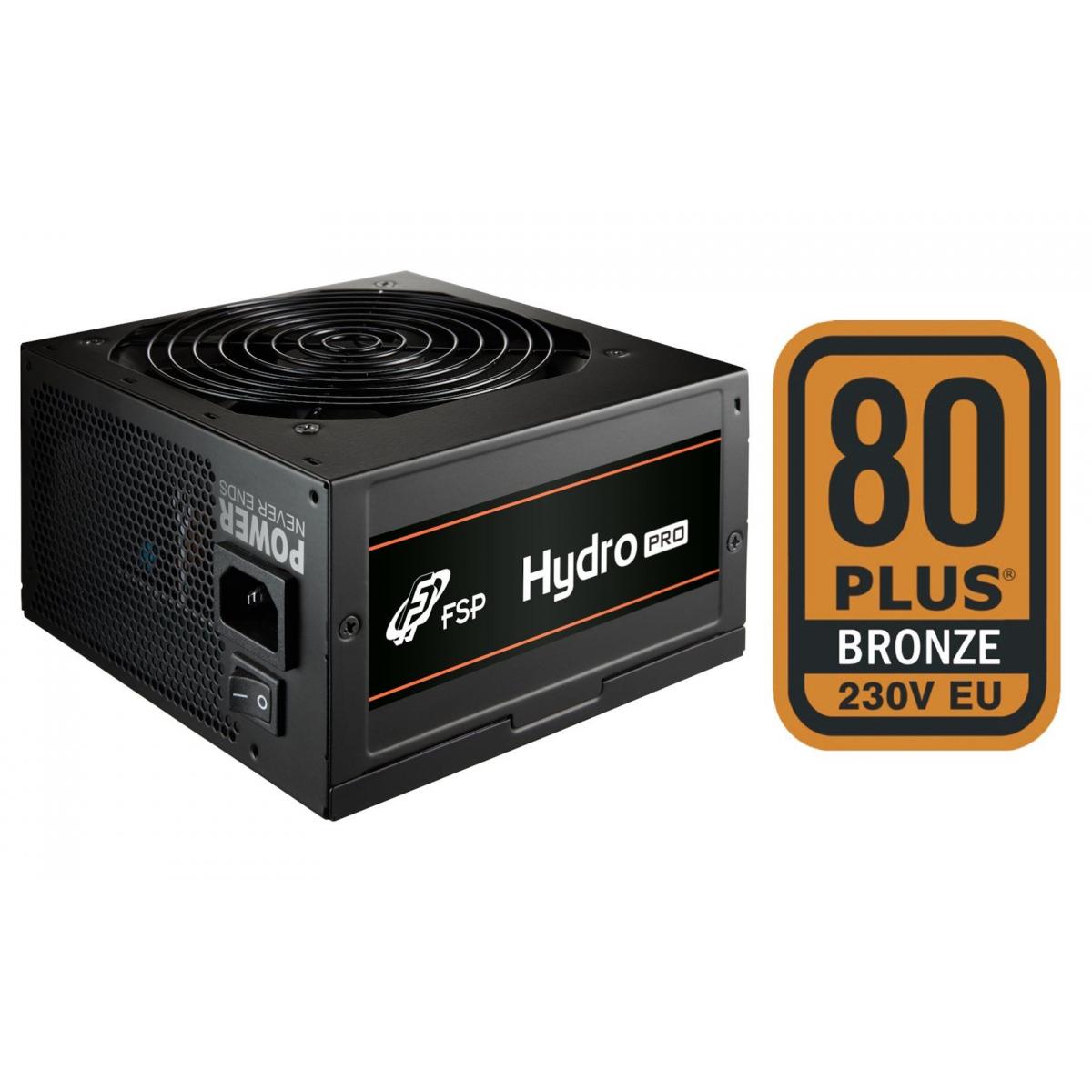

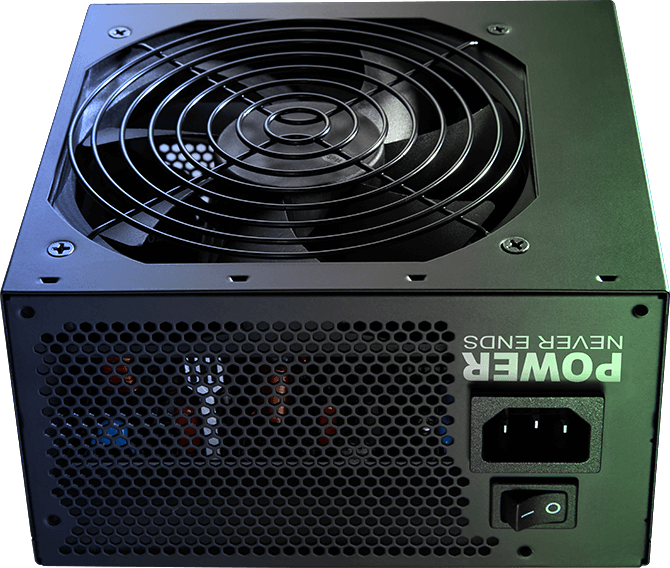

FSP HYDRO PRO HP2-800 800W 80+ Bronze ATX Power Supply Black
- Complies with ATX12 v2.52 & EPS12 V2.92
- Efficiency ≥ 88% @ typical Load
- Active PFC ≥ 0.9
- Hold up time > 17ms @ 80% Load
- +5V & 3.3V DC to DC module design
- +12V Single-Rail Design
- 120mm Silent & long life Fan
- Complete Protections: OCP/OVP/OPP/SCP
80 Plus® 230V EU Bronze Certification
HYDRO PRO series, 80 PLUS® 230V EU bronze certified, saves energy through its high efficiency up to 85% and excesses the standard through its high efficiency up to 88%.

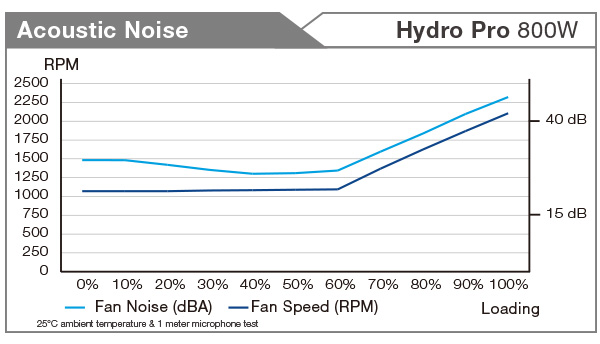

Intelligent Fan Speed Control
An advanced fan control designs to detect heat, adjusts fan speed for optimal cooling performance and also protects valuable components at their time of maximum heat stress.
Optimal Cooling
HYDRO PRO series are quieter at idle, and the 120mm fan reduces noise even when you're pushing your system hard.
450V 105C, Heavy-duty capacitor
The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.
DC-to-DC Module Design
With a 12V SR circuit and the DC to DC structure, HYDRO PRO series ensure you outstanding conversion efficiency and provides stable output voltage.
All Black Coating and Cables
The mat black coating and flat cables give your system a superior look and straightforward rather so many entry-level power supplies.
Energy Related ErP/Eup 2013
Green Power! The total AC power consumption of the completed system is less than 5Vsb rail to support the new EU Regulation ErP 2013 for modern day systems.

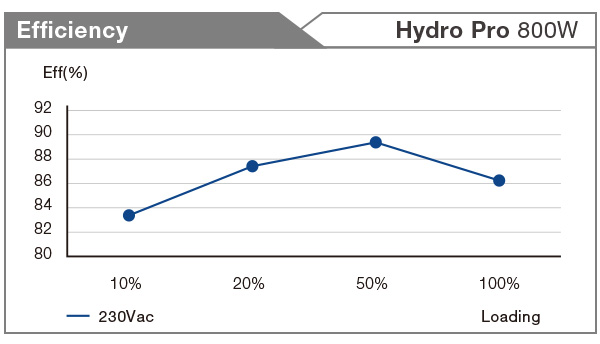

Performance
AC/DC
| AC Input | 200-240Vac~ 6A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 66.66A | 0.3A | 2.5A |
| Max Combined Power | 100W | 799.9W | 3.6W | 12.5W | |
| Total Power | 800W | ||||

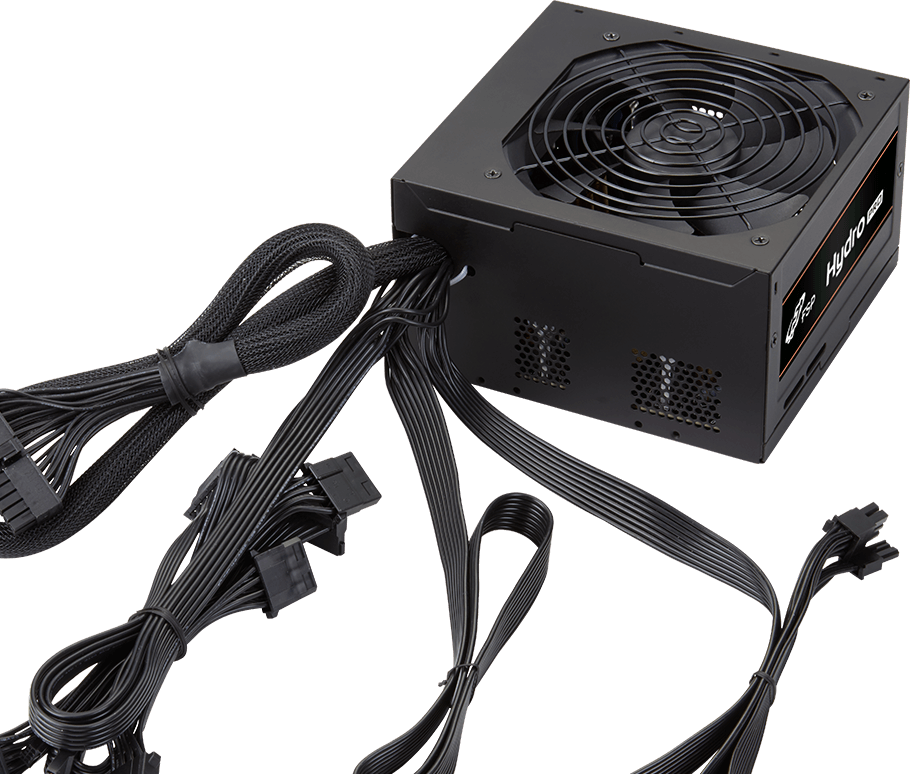

Cables
 |  |  |  |  |  | |
| ATX 24 | 4+4 PIN | PCI-E 6+2 | SATA | Molex (PERIPHERAL) | Floppy | |
| Connectors | 1 | 2 | 4 | 8 | 2 | 1 |
Specifications
| Model | HP2-800 |
| Rated Output Power | 800W |
| Form Factor | ATX |
| 80 PLUS Certification | Bronze 230V EU |
| Input Voltage | 200V-240V |
| Input Current | 4.5A |
| Input Frequency | 50-60Hz |
| PFC | Active |
| Efficiency | ≥ 88% |
| Fan Type | Sleeve Fan |
| Dimensions(L x W x H) | 150 x 140 x 86 mm |
| Weight | 1.472kg |
| Protection | OCP/OVP/OPP/SCP |
| PSU Specification | |
|---|---|
| Maximum Power | 800W - 999W |
| Energy - Efficient | 80+ Bronze |
| Modular | Standard Cables |
