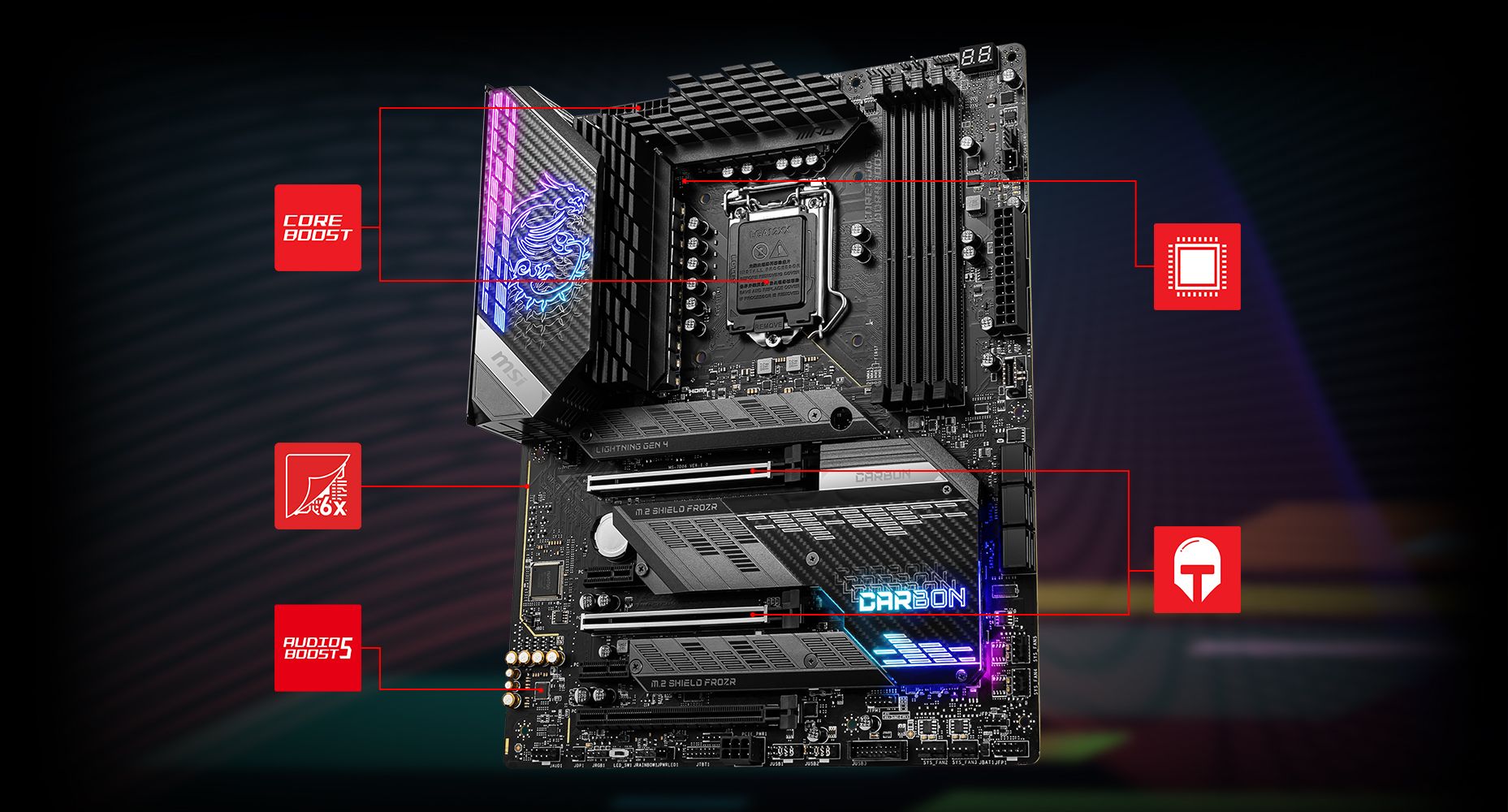

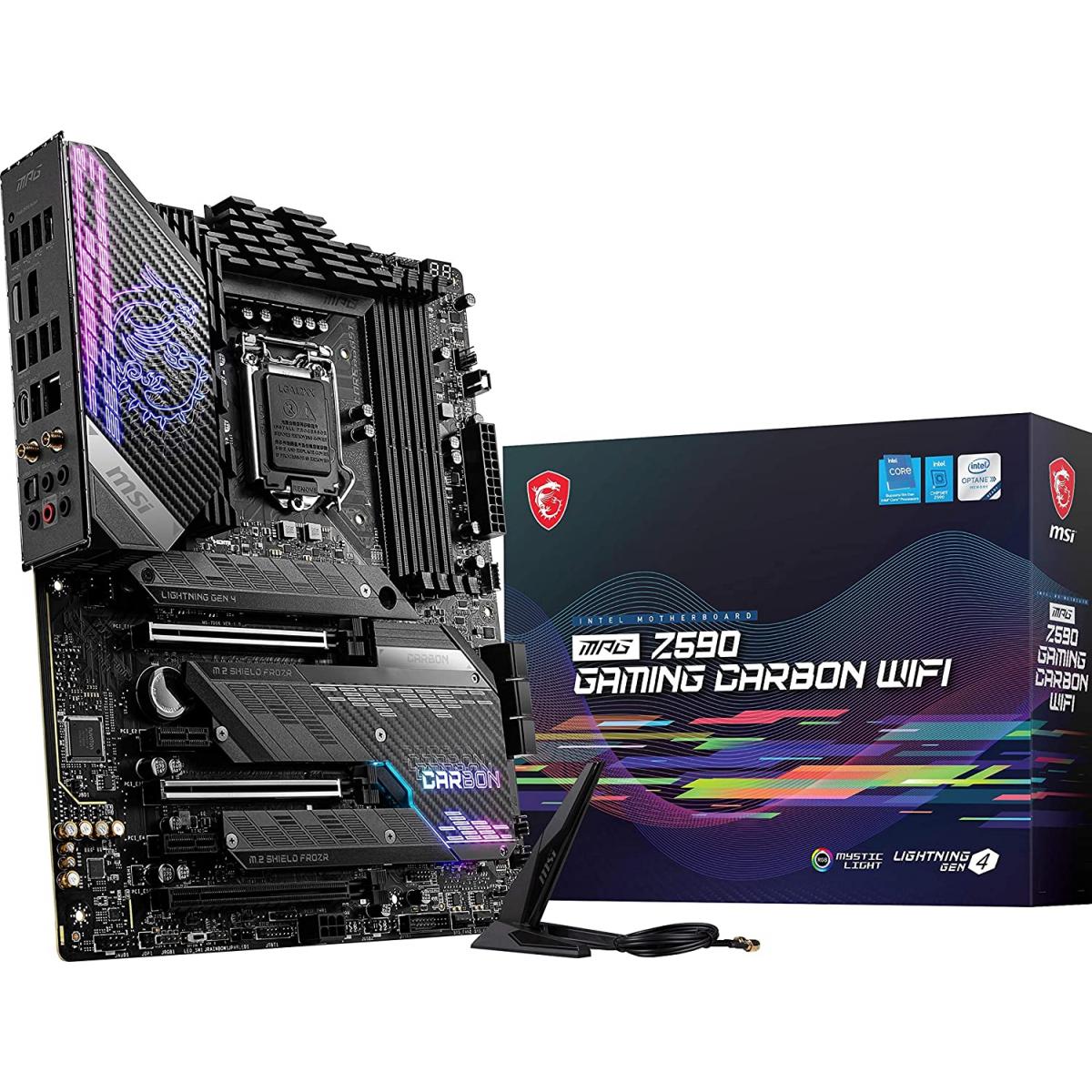

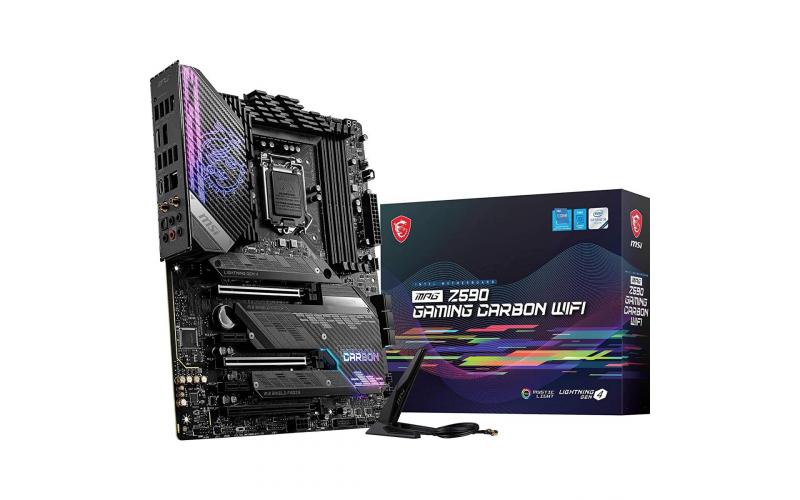

MPG Z590 GAMING CARBON WIFI
EXCLUSIVE FEATURES
Core Boost Technology
Combining 2x 8 pin CPU power connectors and optimized power circuits let GAMING CARBON unleash maximum performance.
6 layer PCB with 2oz Thickened Copper
6 layer PCB with 2oz thickened copper improves signal transmission for high performance capabilities across the motherboard.
Audio Boost 5
solated audio circuitry with a high quality audio processor & amp for immersive gaming experiences.
16+1+1 Power Design with Digital PWM
An aggressive digital VRM power design with digital PWM IC and 16 Duet Rail CPU Power System with 75A Smart Power Stage to reliably drive the CPU even during heavy workloads.
PCIe Steel Armor
Reinforced and shielded PCIe slots for strength and stability.
MPG Z590 GAMING CARBON WIFI
PREMIUM THERMAL SOLUTION
Premium Thermal Design
Heavy plated mosfet heatsink with heat-pipe, high quality 7W/mK mosfet thermal pads and extra choke thermal pads.
M.2 Shield Frozr
Sustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR and prevent SSD thermal throttling.
Pump Fan Support
Control watercooling pump speeds for flowrate and noise control.
Enlarged Chipset Heatsink
Larger heatsink on the chipset for cooling.

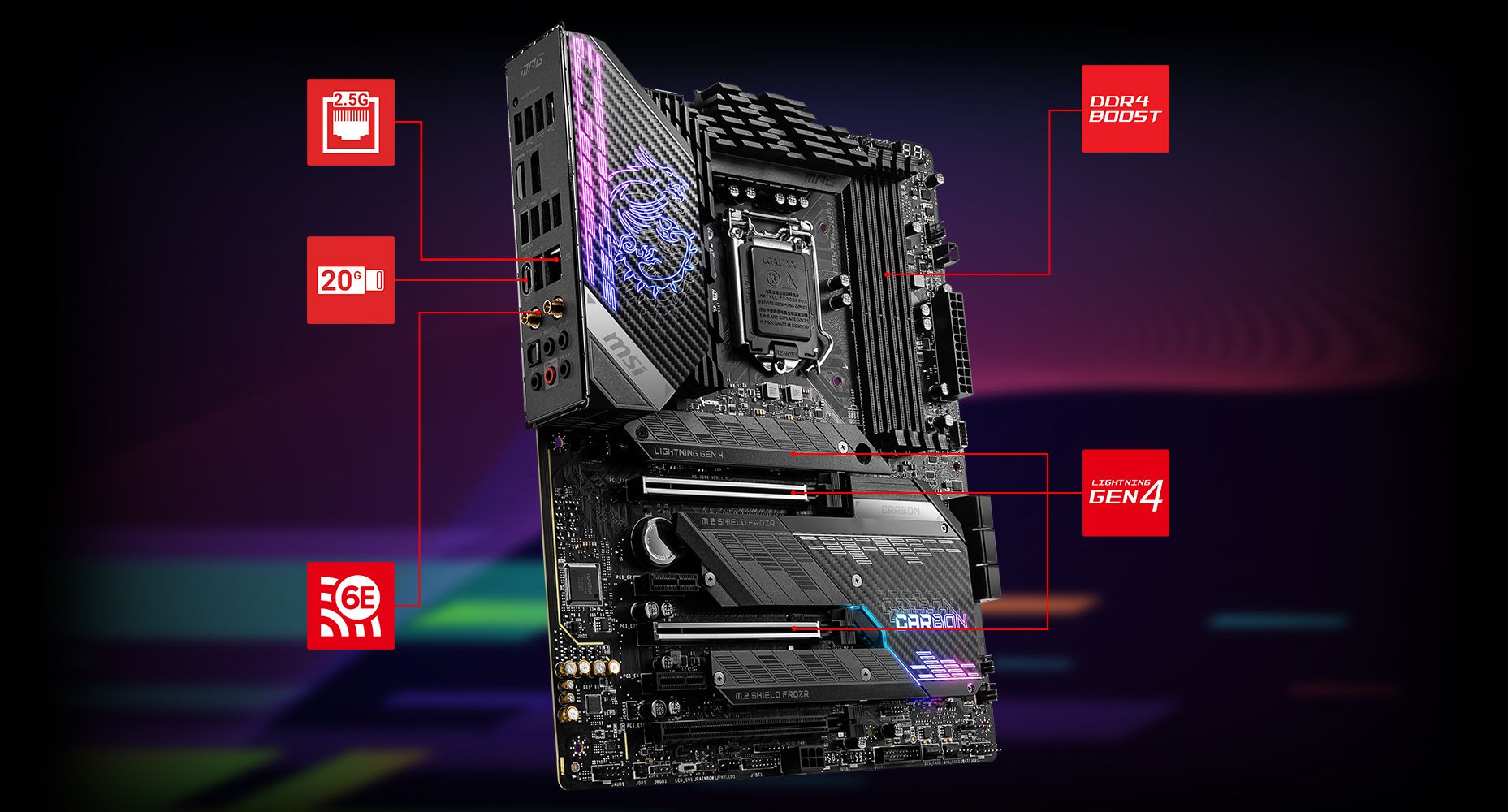

MPG Z590 GAMING CARBON WIFI
HIGH-SPEED TRANSMISSION
2.5G Network Solution
Onboard 2.5 Gigabit Ethernet LAN with LAN manager.
Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, up to 20Gbps transfer speed, 4X faster than USB 3.2 Gen1.
Intel Wi-Fi 6E
Featuring the latest wireless solution, delivering speeds up to 2400Mbps on the 6GHz spectrum and supports MU-MIMO and BSS color technology.

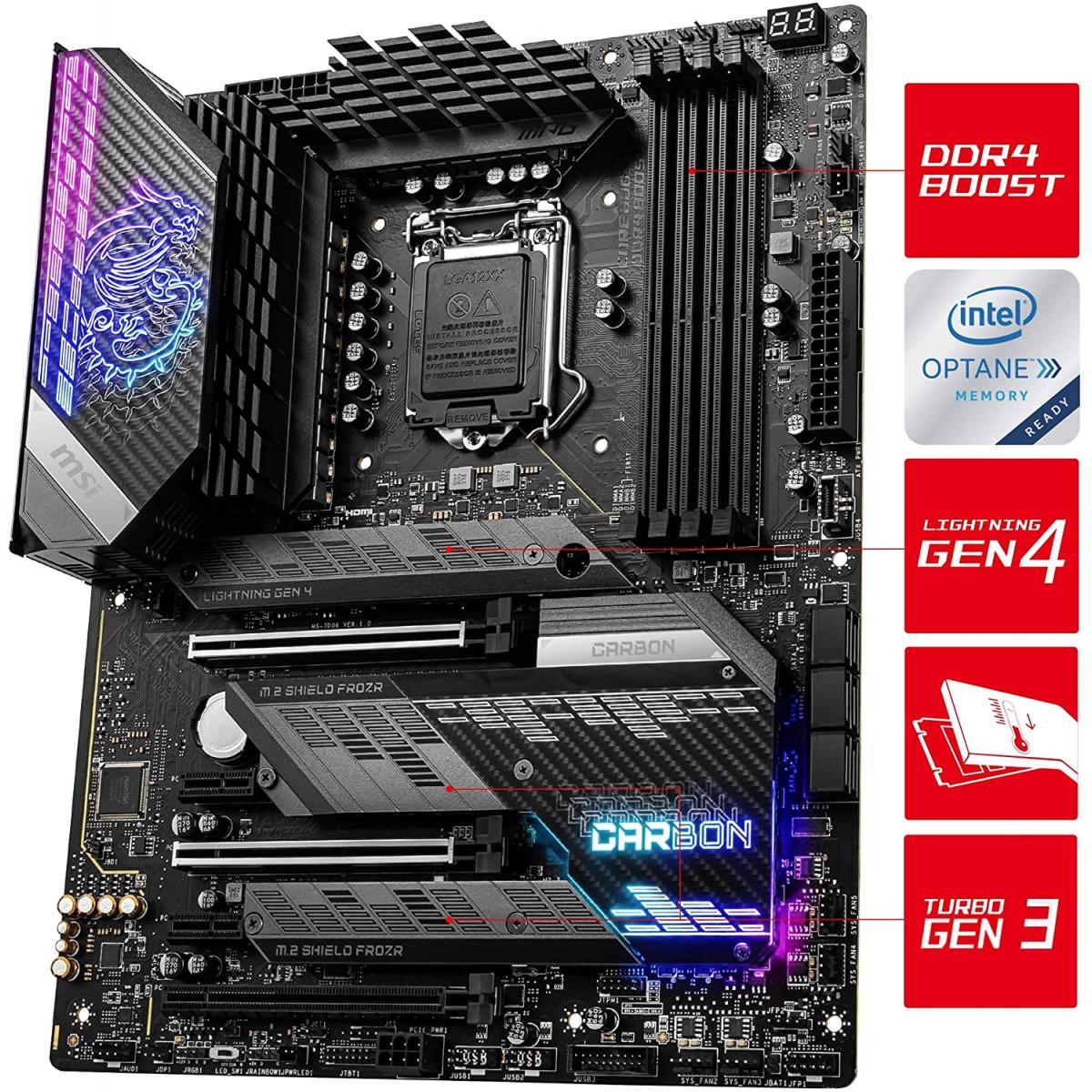

DDR4 Boost
The memory circuit design has been optimized on a reserved section of the motherboard fully isolated from other circuits.
Lightning Gen 4 Solution
Transfer data lightning fast across Gen 4 PCI-E and M.2 with up to 64GB/s bandwidth.

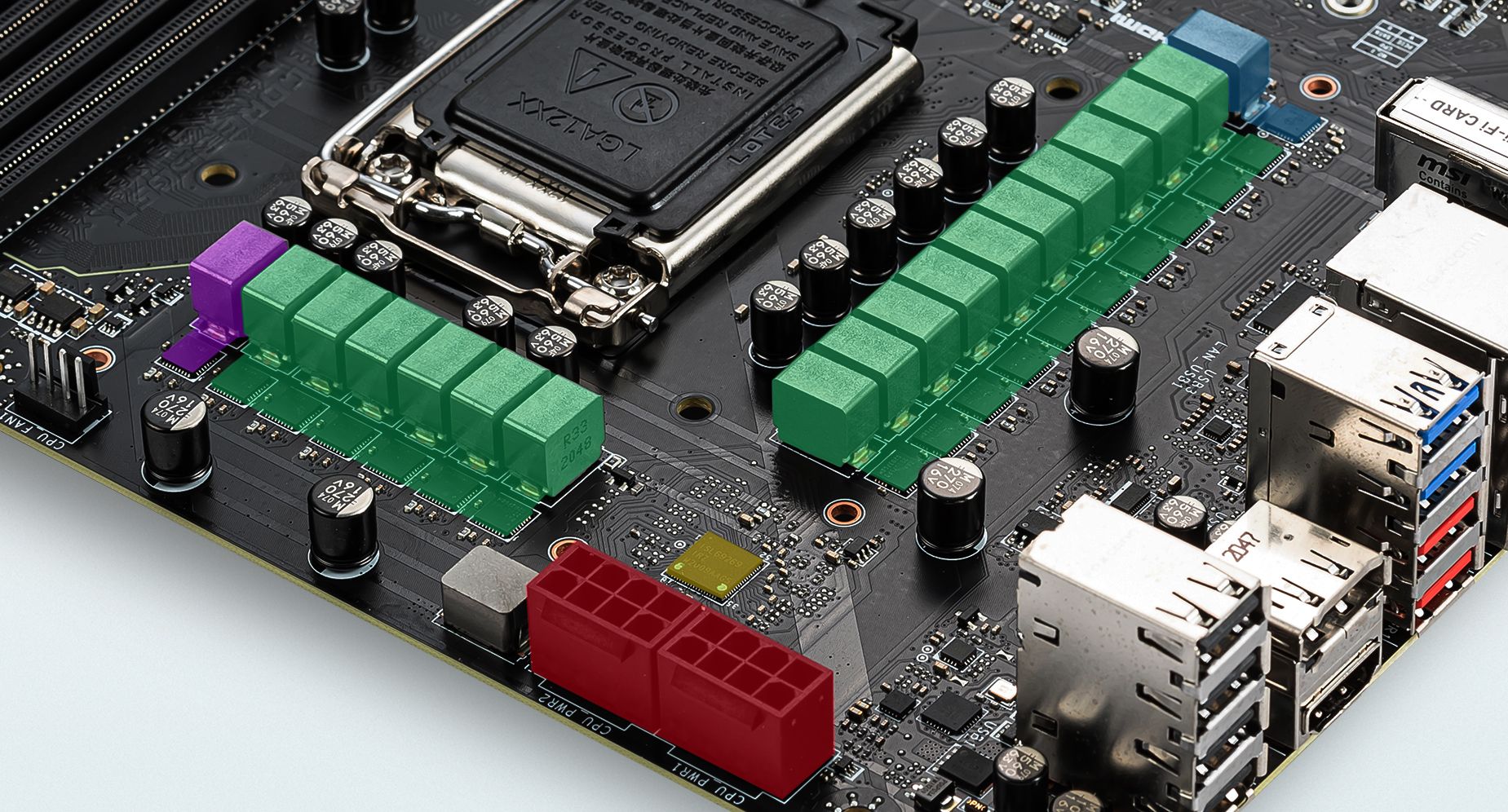

16 + 1 +1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 16 Duet Rail Power System(DRPS). Combining 2x 8-pin power connectors and exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work.
CORE BOOST
Core Boost combines a reserved zone of optimized circuits and premium power delivery components to create a highly efficient power system capable of precise current output to the CPU.

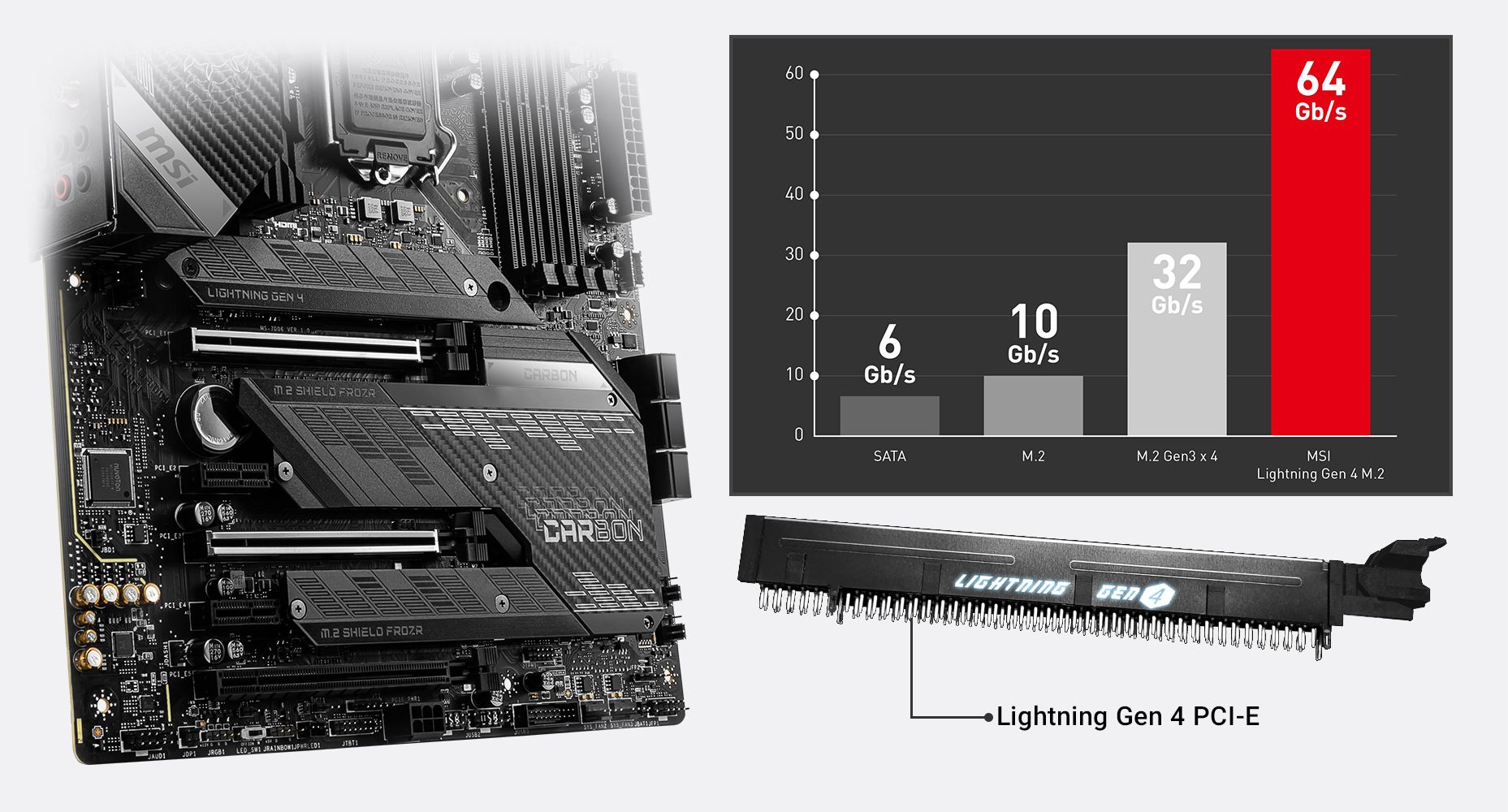

LIGHTNING GEN 4 SOLUTION
Strike fast with MSI Lightning Gen 4 PCI-E. Attach ultra fast PCI-E 4.0 devices and enjoy up to 64GB/s unidirectional transfer bandwidth. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
CUSTOMIZE YOUR GAMING RIG
Personalize your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device.
MSI INTEL MOTHERBOARD-MPG Z590 GAMING CARBON WIFI-A22
A built-in LED switch on the motherboard instantly turns lighting on or off.
WI-FI 6E & BLUETOOTH
Connect to a high-speed Wi-Fi network with onboard Wi-Fi 6E. OFDMA and two-way MU-MIMO technology optimize data transmission and deliver speeds up to 2.4Gbps.

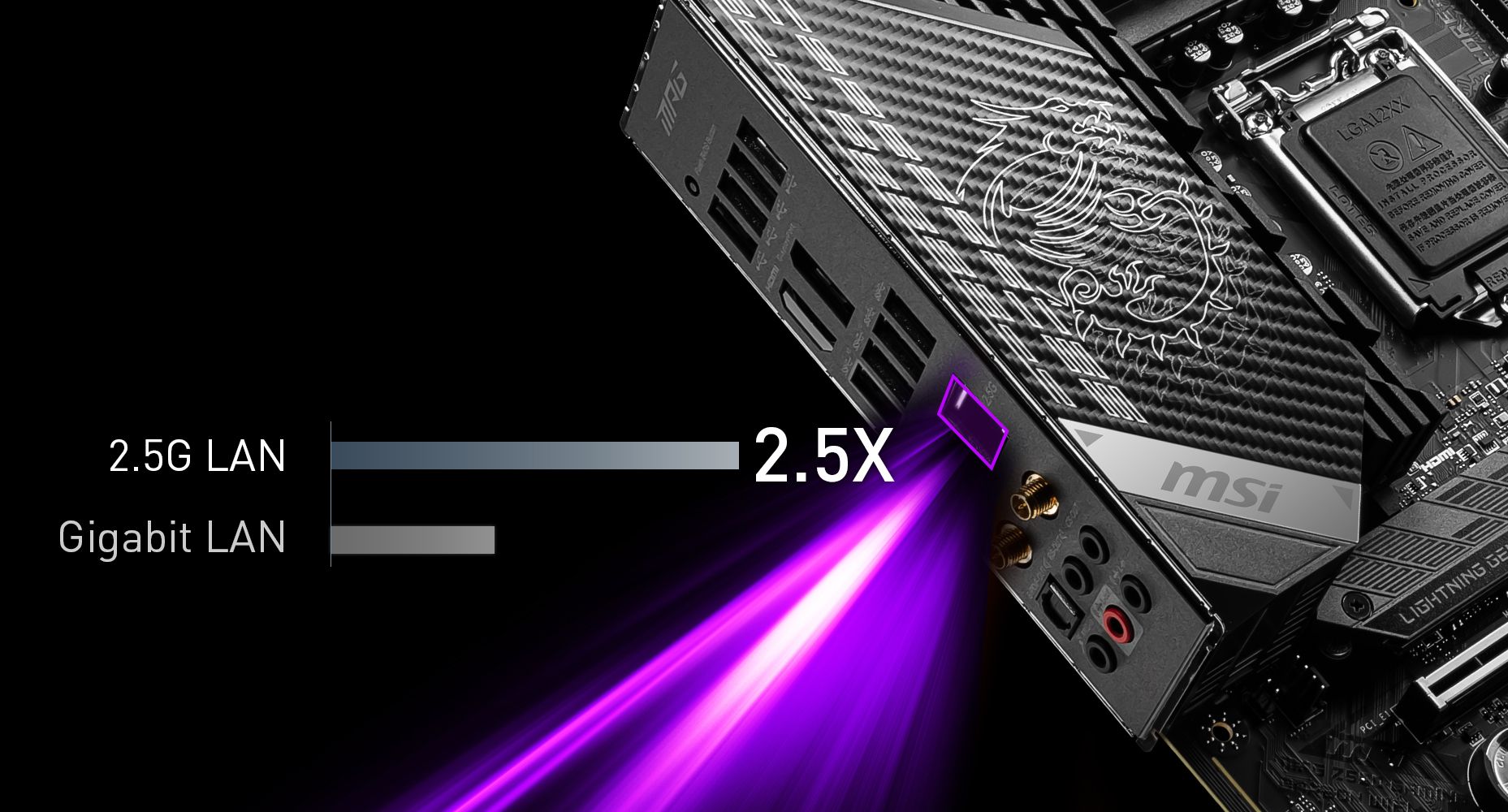

MAXIMIUM DATA TRANSFER WITH 2.5G LAN
MPG Z590 GAMING CARBON WIFI features high-bandwidth and low-latency 2.5G and Gigabit LAN for demanding creators and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G
Connect the rear USB Type-C port and quickly move large files including uncompressed video, raw images, and bulky simulation data across USB 3.2 Gen 2x2 with transfer speeds up to 20Gbps.
AMPLIFY YOUR EXPERIENCE WITH AUDIO BOOST 5
Like a dedicated sound card, Audio Boost 5 offers a HD audio processor, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by the ALC 4080 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
UNMATCHED MEMORY PERFORMANCE
MSI takes memory stability and performance to the extreme. The memory circuit layout has been optimized for reliability and tested extensively in partnership with major memory manufacturers for compatibility.

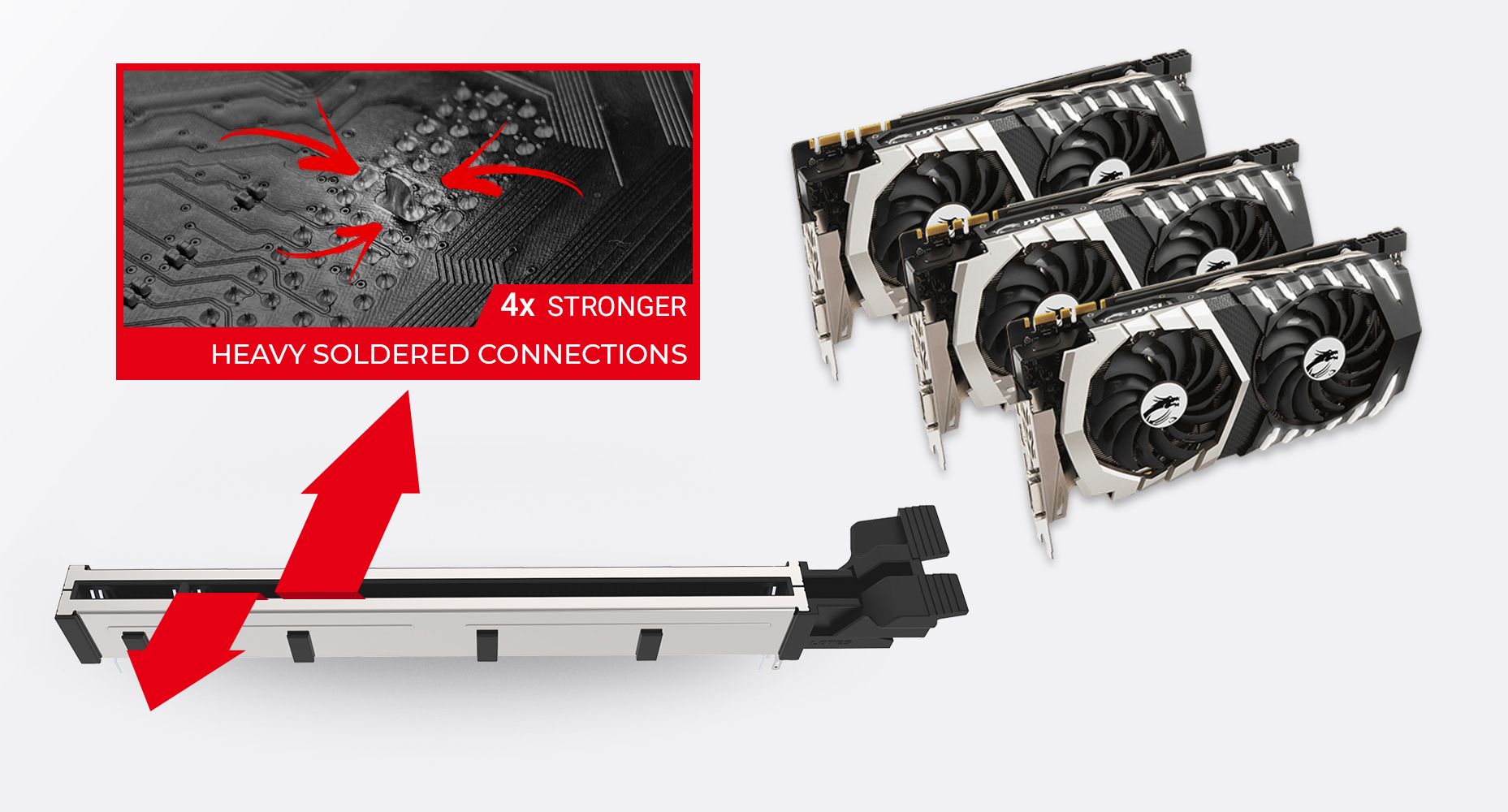

MULTIPLE GPU SUPPORT AND PCI-E STEEL ARMOR
MPG Z590 GAMING CARBON WIFI supports AMD CrossFire multi GPU technology. PCI-E slot placements provide optimal airflow for graphics card cooling. MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage counts, Steel Armor shields the point of contact from electromagnetic interference.
