Mercusys MA210E Gigabit PCIe Network Card for PC Wake on LAN Energy Efficient Ethernet Flow Control Compatible with Windows
- • Gigabit Ethernet: 1 × RJ45 port with 10/100/1000 Mbps auto-negotiation.
- • PCIe Connectivity: Internal PCI Express network adapter for compatible desktop computers.
- • Network Features: Wake-on-LAN, IEEE 802.3x Flow Control and IEEE 802.3az Energy-Efficient Ethernet.
- • Flexible Installation: Standard and low-profile brackets included for different desktop cases.
- • Windows Support: Compatible with Windows 11, 10, 8.1, 8, 7, XP and Vista.
- Availability:
- In Stock
- Product Code:
- MA210E
- Brand:
- MERCUSYS Citycenter.jo
JOD 8.00
City Center for Computers

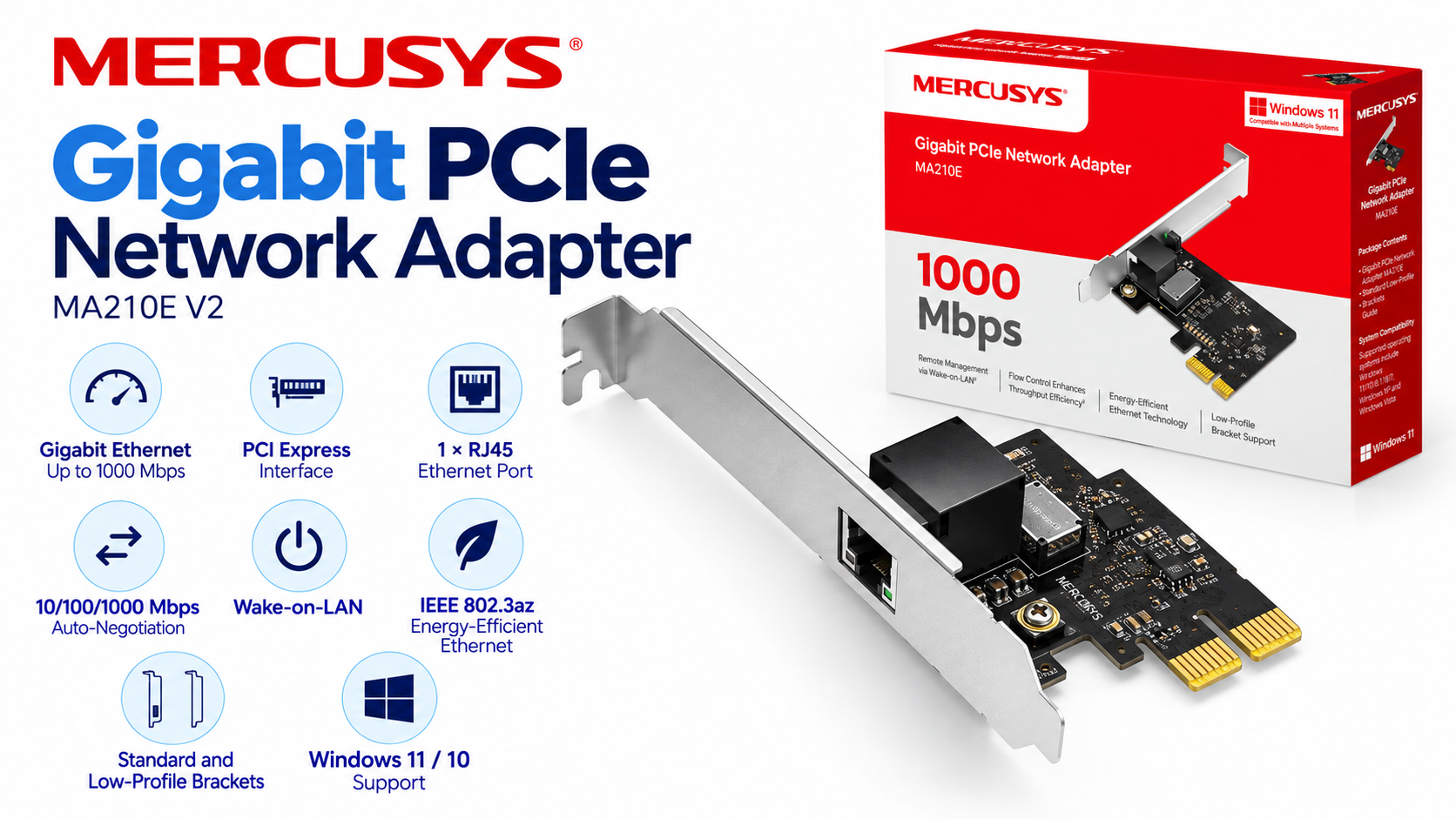

The MERCUSYS MA210E V2 is a Gigabit PCIe network adapter designed to add a reliable wired Ethernet connection to compatible desktop computers. Equipped with a PCI Express interface and one 10/100/1000 Mbps RJ45 port, it supports automatic speed negotiation for everyday internet access, local file transfers and network-connected applications.
The adapter combines Wake-on-LAN, IEEE 802.3x Flow Control and Energy-Efficient Ethernet technology with straightforward Windows installation. Its included standard and low-profile mounting brackets provide flexibility for different desktop PC chassis designs.
Key Features
- Gigabit Ethernet Connectivity: One RJ45 port supports 10/100/1000 Mbps auto-negotiation for wired network connections.
- PCI Express Interface: Installs into a compatible desktop computer's PCI Express expansion slot.
- Wake-on-LAN: Supports remote computer wake-up through a network signal when the motherboard also supports the feature.
- Energy-Efficient Ethernet: IEEE 802.3az technology supports reduced network interface power consumption.
- IEEE 802.3x Flow Control: Supports Ethernet traffic flow control when used with compatible network equipment.
- Flexible Installation: Includes standard and low-profile brackets, with plug-and-play installation on supported Windows versions.
Technical Specifications
| Component | Specification |
| Brand | MERCUSYS |
| Model | MA210E |
| Hardware Version | V2 |
| Product Type | Gigabit PCIe Network Adapter |
| Host Interface | PCI Express |
| Ethernet Port | 1 × 10/100/1000 Mbps RJ45 |
| Network Speed | 10 / 100 / 1000 Mbps Auto-Negotiation |
| Network Media | 1000BASE-T / 100BASE-TX |
| Ethernet Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab |
| Flow Control | IEEE 802.3x |
| Power Saving | IEEE 802.3az Energy-Efficient Ethernet |
| Wake-on-LAN | Supported |
| LED Indicator | Status |
| Operating Systems | Windows 11 / 10 / 8.1 / 8 / 7 / XP / Vista |
| Mounting Brackets | Standard and Low-Profile |
| Dimensions (W × D × H) | 78.1 × 120.8 × 21.5 mm |
| Operating Temperature | 0 °C to 40 °C |
Compatibility & Important Information
- Desktop PCIe Requirement: Requires an available compatible PCI Express expansion slot. This is an internal network adapter, not a USB adapter.
- Wired Ethernet Only: Provides one RJ45 Gigabit Ethernet connection and does not add wireless Wi-Fi connectivity.
- Operating System Support: Supports Windows 11, 10, 8.1, 8, 7, XP and Vista. Windows 11/10/8.1/8 support plug-and-play installation; drivers for other supported versions are available from MERCUSYS.
- Wake-on-LAN Requirement: The computer motherboard must also support Wake-on-LAN for the feature to operate.
- Flow Control: Requires compatible connected network equipment for the corresponding flow-control function.
- Actual Network Performance: Gigabit Ethernet speed is a physical link rate. Actual throughput depends on network equipment, Ethernet cabling and computer performance.
Package Contents
- MERCUSYS MA210E Gigabit PCIe Network Adapter
- Standard and Low-Profile Brackets
- Quick Installation Guide
