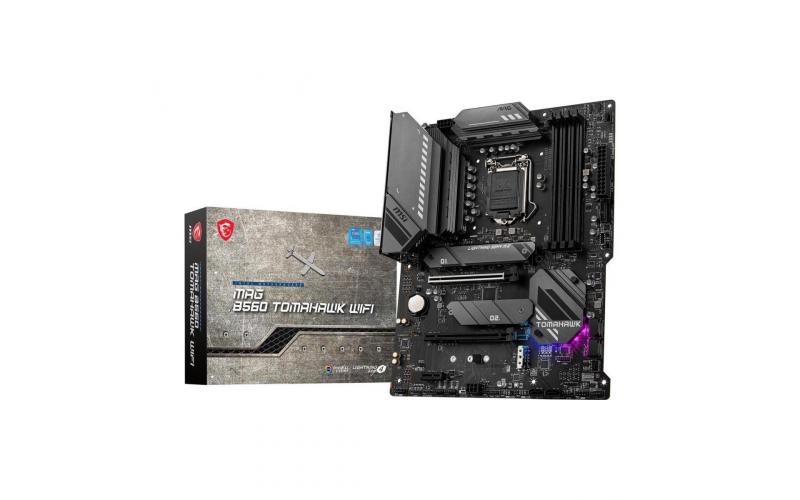

MSI MAG B560 TOMAHAWK WIFI LGA 1200 Intel B560 11th & 10th Intel CPUs Pcie Gen 4.0 , SATA 6Gb/s ATX Intel Motherboard

Availability:
Out Of Stock
Product Code:
MSI MAG B560 TOMAHAWK WIFI
Brand:
MSI
JOD 175.00 JOD 149.00

You save JOD 26.00

Oriental Store For Computers
Update Last Updated: 2022-05-24 02:50:16
Buy Now
Compare this Product
Motherboard Specifications
Supported Processors Supports 10th Gen Intel® Core™ Processors

11th Gen Intel®Core™Processors
Pentium®
Gold and Celeron® Processors
Chipset Intel® B560 Chipset
Socket LGA 1200
Memory Type DDR4
Memory Slots 4
Maximum Memory 128GB
Memory Bus Speed 4 x DDR4 memory slots
support up to 128GB 1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5066 MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC
un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Please refer www.msi.com for more information on compatible memory.
Multi-GPU Support YES
Ports 1. USB 2.0
3. 2.5G LAN Port
5. HD Audio Connectors
7. USB 3.2 Gen 1 5Gbps Type-A
9. USB 3.2 Gen 2x2 20Gbps Type-C
2. DisplayPort
4. Wi-Fi / Bluetooth Antenna
6. HDMI
8. USB 3.2 Gen 1 5Gbps Type-A
10. Optical S/PDIF OUT
Form Factor ATX
M.2 Slots Yes - 3 Slots (Gen 4)

* M2_1 slot (from CPU) - Supports up to PCIe 4.0 x4
Available only on 11th Gen Intel® CPU
Expansion Slots 2x PCIe x16 slots
PCI_E1 (from CPU)
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel ® CPU
PCI_E2 (from B560 chipset)
Support up to PCIe 3.0 x4
1x PCIe 3.0 x1 slot (from B560 chipset)
