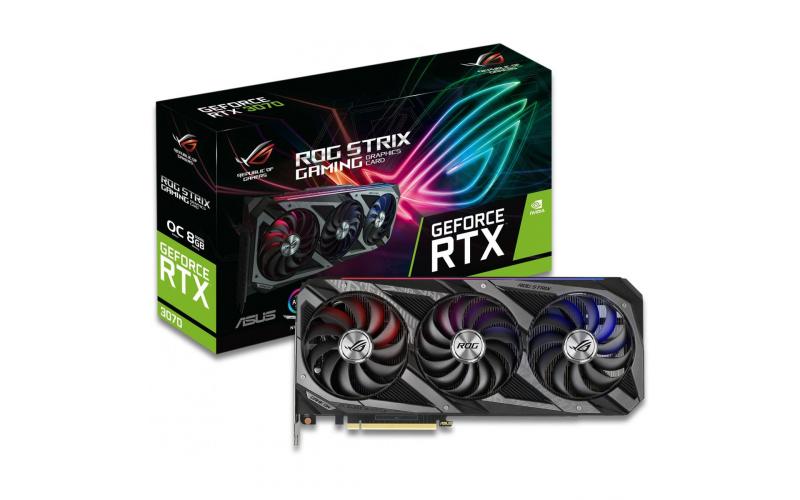

ASUS ROG Strix GeForce RTX 3070 V2 8GB GDDR6 OC Edition Graphic Card

  • NVIDIA Ampere Streaming Multiprocessors – The building blocks for the world’s fastest and most efficient GPU, the new Ampere SM delivers 2x the FP32 performance and improves power efficiency.
  • 2nd Gen RT Cores – Experience 2x the performance of 1st Gen RT cores, plus concurrent RT and shading for a new level of ray tracing performance.
  • 3rd Generation Tensor Cores: Get up to 2x the performance with Structural Essence and advanced AI algorithms like DLSS. Now with support for up to 8K resolution, these cores offer a massive increase in gaming performance and AI capabilities.
  • The Axial-Tech fan design has been tuned with more fan blades and a reversed direction of rotation for the center fan.
  • The 9-slot design expands the cooling surface compared to the last generation for a more thermal headroom than ever.
  • Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and a variety of high-current power stages.
  • GPU Tweak II provides intuitive performance tuning, thermal controls, and system monitoring.
Key Features:
  • Brand: Asus
  • Graphics Card Specifications: NVIDIA, GeForce RTX 3000 Series, GeForce RTX 3070 TI, 8 GB DDR6
  • Memory: 8 GB, DDR4, 2, 3200 MHz
  • Graphic Card: Nvidia, 2 GB DDR5, NVIDIA GeForce MX330, Dedicated
  • Display: 27″, IPS, FHD, NO, 1920 x 1080
See Full Specification
Availability:
Out Of Stock
Product Code:
ROG-STRIX-RTX3070-O8G-V2
JOD 899.00
Eagle
Update Last Updated: 2023-01-25 21:28:20
Buy Now
Compare this Product

Description

ASUS ROG Strix GeForce RTX 3070 8GB V2





AXIAL-TECH UPGRADES
Better, faster, stronger



Our Axial-tech fan design has been optimized for a new, larger heatsink that features more fins and surface area than last gen. The blade count has been increased on all three fans, with 13 on the center fan and 11 on the auxiliary fans. The barrier ring on the side fans has been slimmed down to allow for more lateral intake and to provide better airflow through the cooling array. The center fan’s extra blades and full-height ring provide boosted static pressure to blast air directly onto the GPU heat spreader.



NEW DIRECTIONS



To bolster the specialized roles of the center and auxiliary fans, the rotational direction of the center fan has been reversed. This reduces airflow turbulence inside of the cooling array for another boost to the card’s overall thermal performance.



MAXCONTACT



To get heat up off the die and into the heatsink array to benefit from the new fan design requires special attention. We use a manufacturing process that polishes the surface of the heat spreader to improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for improved thermal transfer.



2.9-SLOT DESIGN



The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills a large 2.9-slot footprint. Increasing the heatsink size compared to the last generation provides more thermal headroom to account for the new high-performance chipset.



FRESH SHROUD



In addition to under-the-hood design changes, the rog strix features a new face with metal accents that mirror the design aesthectic of ROG and ROG STRIX motherboards, Mixing surface textures and materials make a statement when vertically mounted and lit by chasis LEDs. For those who prefer a sleeker, more subtle look, the greyscape colorway allows it to seamlessly blend into the build.



IT’S COOLER OUT BACK



Flipping the card around reveals more design improvements. A wide backplate vent and shortened PCB allows hot air to escape towards chassis exhaust fans instead of being recycled by the GPU’s circulating cooler design. A GPU bracket provides extra stability to the critical connection between die and heat spreader. The I/O bracket is made from stainless steel to protect ports and provide a more secure mount. A conveniently placed Dual Bios switch allows quick selection between “performance” and “quiet” mode for basic customization of the card’s default behavior without software.



FUNCTIONAL FRONT



A new addressable RGB element can be customized with Armoury Crate to create a uniform look along with other ROG components. To fulfill the power demands of the GeForce RTX 3070, two 8-pin power connectors are present, along with an onboard circuit that monitors PSU rail voltage.



GPU TWEAK II



The ASUS GPU Tweak II allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display.

Specifications

Graphics EngineNVIDIA® GeForce RTX™ 3070 OC
Bus StandardPCI Express 4.0
OpenGLOpenGL®4.6
Video MemoryGDDR6 8GB
CUDA Core5888
Memory Speed14 Gbps
Memory Interface256-bit
ResolutionDigital Max Resolution:7680×4320
InterfaceHDMI Output : Yes x 2 (Native) (HDMI 2.1)
Display Port : Yes x 3 (Native) (DisplayPort 1.4a)
HDCP Support : Yes (2.3)
Maximum Display Support4
NVlink/ Crossfire SupportNo
Recommended PSU650W (Please reference NVIDIA’s website for more information)
Power Connectors2 x 8-pin
Accessories1 x ROG Velcro Hook & Loop
1 x ROG ruler
1 x Collection card
1 x Speedsetup manual
SoftwareASUS GPU Tweak II & Driver, please download all software from the support site.
Dimensions12.53 ” x 5.51 ” x 2.27 ” Inch
31.85 x 14.01 x 5.78 Centimeter
Slot2.9 slot



Specification

Brand

Asus
Graphics Card Specifications

NVIDIA, GeForce RTX 3000 Series, GeForce RTX 3070 TI, 8 GB DDR6
