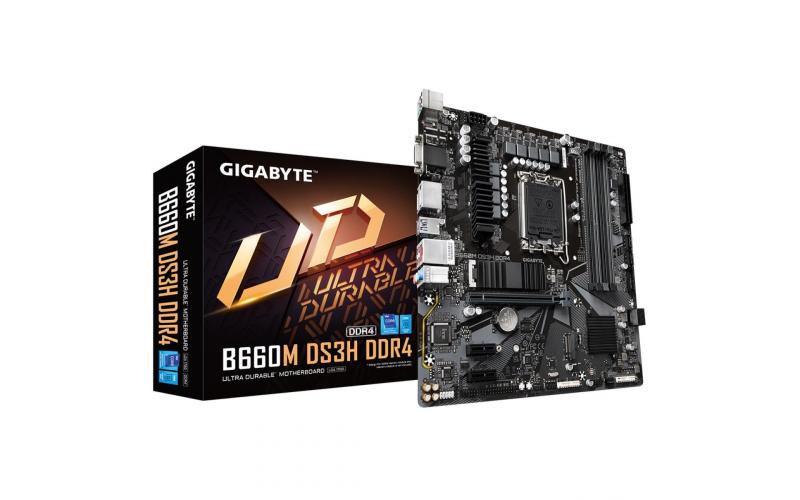

GIGABYTE B660M DS3H LGA 1700, Intel 12th, DDR4 mATX Motherboard ,M.2, PCIe 4.0, USB 3.2 Gen2 Type-C,2.5GbE LAN

Availability:
Out Of Stock
Product Code:
GIGABYTE B660M DS3H
Brand:
GIGABYTE
JOD 105.00
Oriental Store For Computers
Update Last Updated: 2024-09-10 07:26:36
Buy Now
Compare this Product
Motherboard Specifications
Supported Processors LGA1700 socket: Support for 12th Generation Intel® Core™
Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
Chipset Intel® B660 Express Chipset
Socket LGA1700
Memory Type DDR4
Memory Slots 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Maximum Memory 128GB
Memory Bus Speed Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Ports 2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x DisplayPorts
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port
with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
Form Factor mATX
M.2 Slots YES
Expansion Slots 1 x PCI Express x16 slot
running at x16
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
2 x PCI Express x1 slots
(The PCIEX1 slots conform to PCI Express 3.0 standard.)
