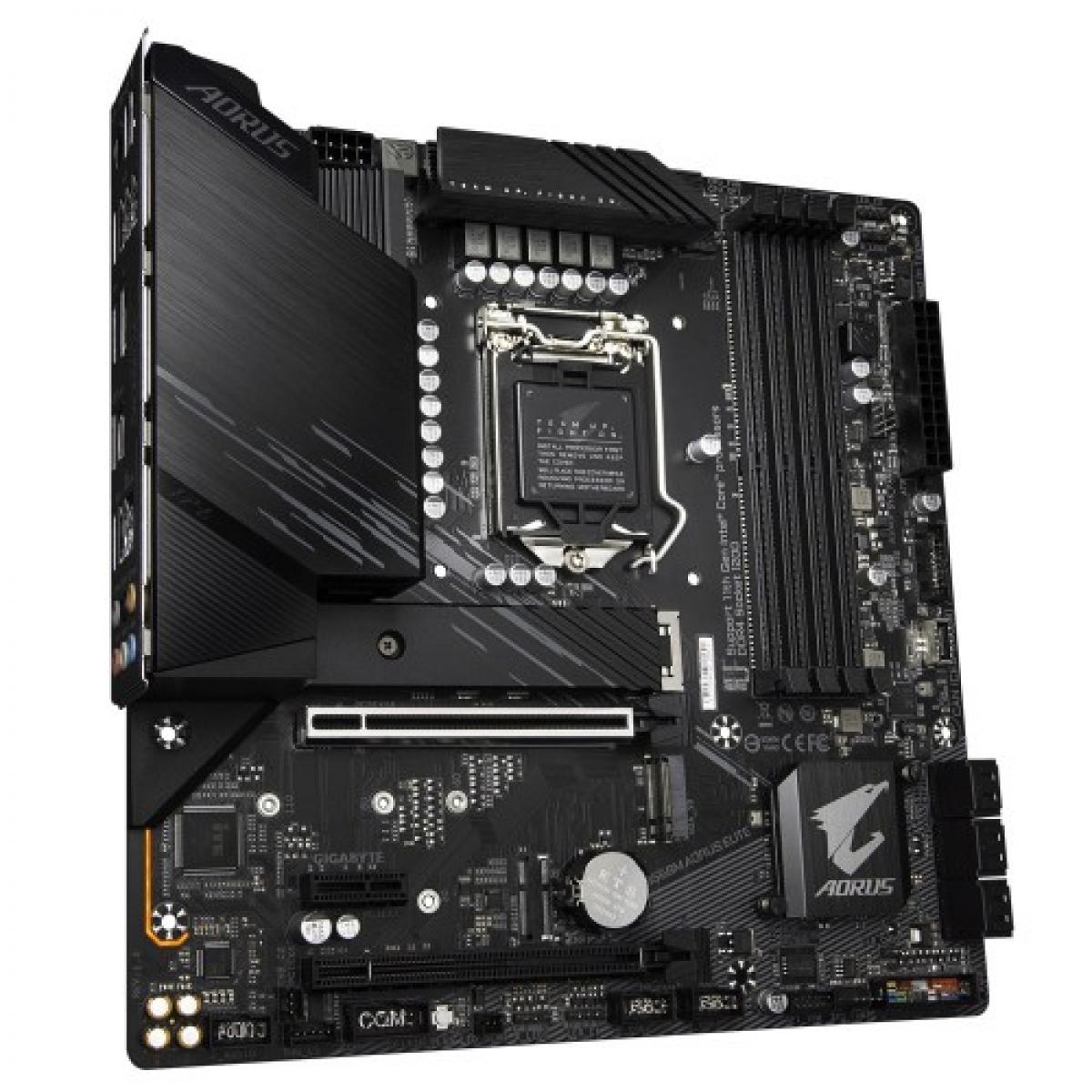

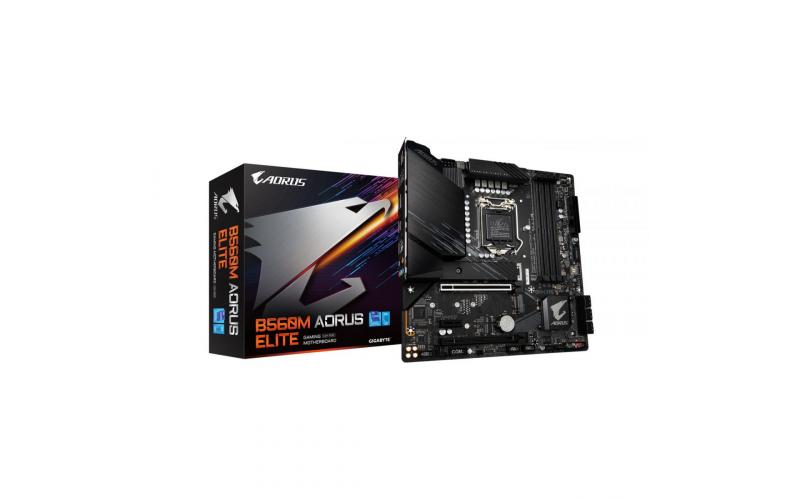

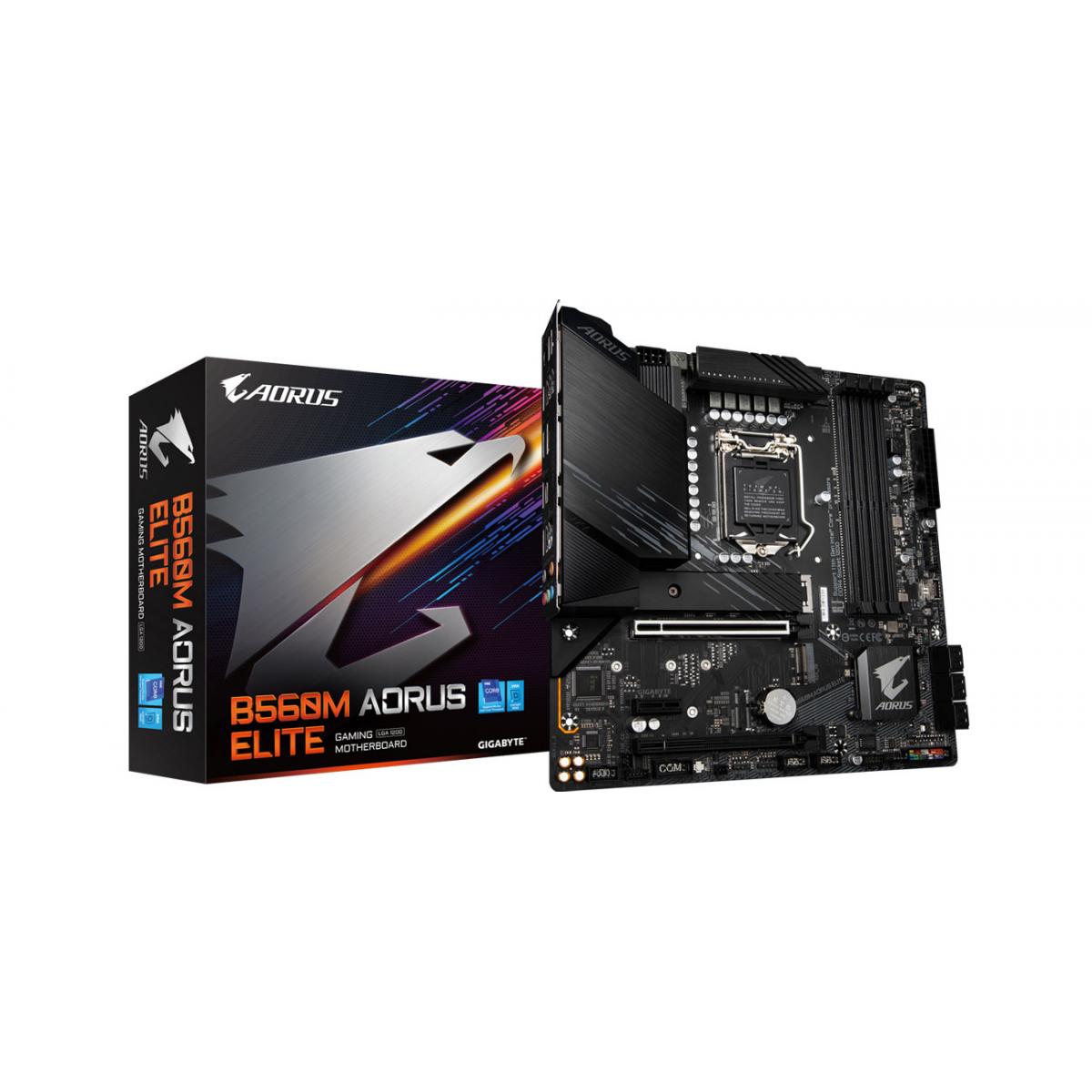

Gigabyte B560M AORUS ELITE Intel B560 11th Generation Intel LGA1200 Micro-ATX Desktop Motherboard

Availability:: Out Of Stock
Product Code:: Gigabyte B560M AORUS ELITE
Brand:: GIGABYTE

JOD 119.00 JOD 99.00

You save JOD 20.00

Oriental Store For Computers

Buy Now

Compare this Product

Motherboard Specifications
Supported Processors	1th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache Intel® Celeron® G5xx5 family. L3 cache varies with CPU
Chipset	Intel® B560 Express Chipset
Socket	LGA1200
Memory Type	DDR4
Memory Slots	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Maximum Memory	128GB
Memory Bus Speed	11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules
Multi-GPU Support	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Ports	1 x PS/2 keyboard/mouse port 1 x USB Type-C® port with USB 3.2 Gen2 support 1 x USB 3.2 Gen2 Type-A port (red) 2 x USB 3.2 Gen1 ports 6 x USB 2.0/1.1 ports 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 6 x audio jacks
Form Factor	mATX
M.2 Slots	1 x M.2 connector (Socket 3 M key type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)* * Supported by 11th Generation processors only. Chipset: 1 x M.2 connector (Socket 3 M key type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
Expansion Slots	1 x PCI Express x16 slot running at x16 (PCIEX16) * For optimum performance if only one PCI Express graphics card is to be installed be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* *Supported by 11th Generation processors only. 1 x PCI Express x16 slot running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
