• GIGABYTE A320-M S2H

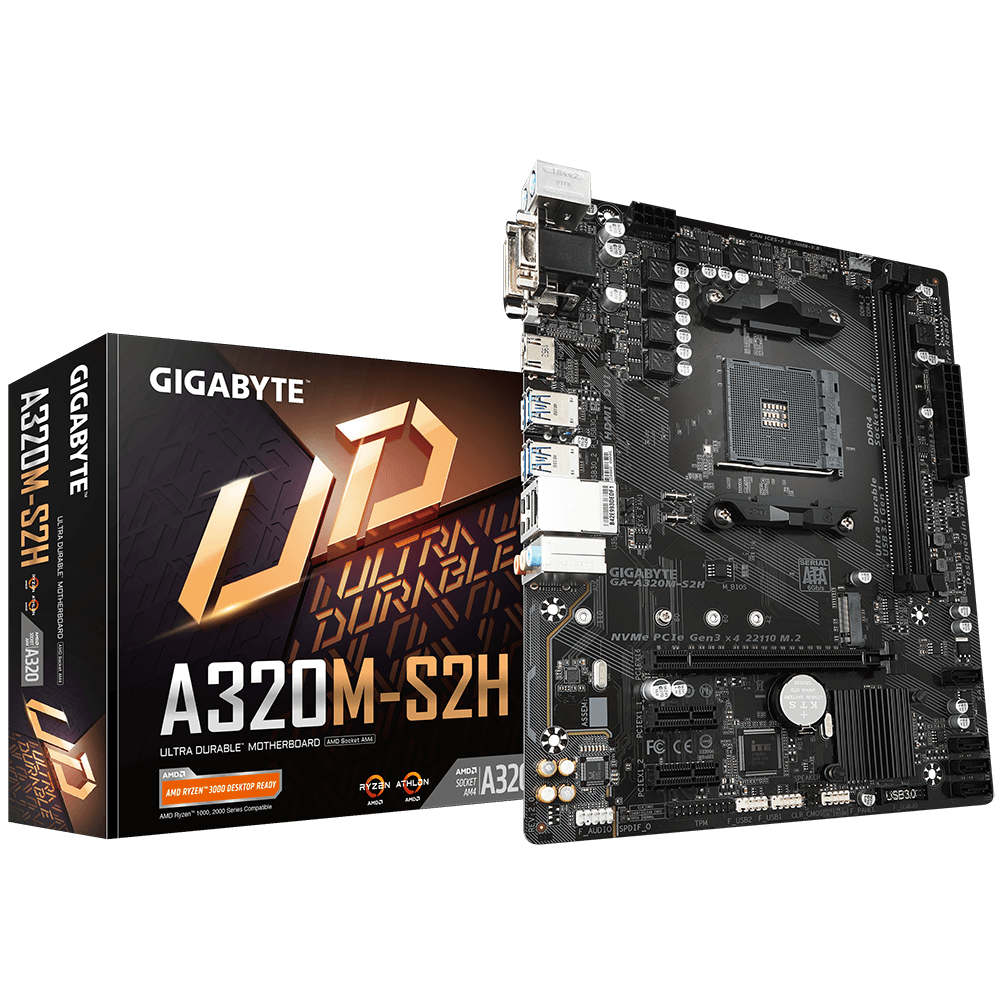

GIGABYTE A320-M S2H

Availability:
Out Of Stock
Product Code:
JOD 69.00
iGeek Megastore
Update Last Updated: 2025-03-19 21:29:56
Buy Now
Compare this Product


    • CPU
      1. AM4 Socket: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. AMD A320
    • Memory
      1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
      2. Dual channel memory architecture
      3. Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
        * Actual support may vary by CPU.
      4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      6. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Onboard Graphics
      Integrated Graphics Processor:
      1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
      2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
        * The DVI-D port does not support D-Sub connection by adapter.
      3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
        * Support for HDMI 1.4 version.
      Maximum shared memory of 2 GB

      * Actual support may vary by CPU.
    • Audio
      1. Realtek® audio codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
      4. Support for S/PDIF Out
    • LAN
      1. Realtek® GbE LAN chip (10/100/1000 Mbit)
    • Expansion Slots
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        * Actual support may vary by CPU.
        (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
      2. 2 x PCI Express x1 slots
        (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
    • Storage Interface
      1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2(Note) SSD support)
        * Actual support may vary by CPU.
      2. 4 x SATA 6Gb/s connectors
      3. Support for RAID 0, RAID 1, and RAID 10
        * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
      (Note) Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.
    • USB
      Chipset:
      1. 2 x USB 3.1 Gen 1 ports available through the internal USB header
      2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
      CPU:
      1. 4 x USB 3.1 Gen 1 ports on the back panel
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x CPU fan header
      4. 1 x system fan header
      5. 1 x M.2 Socket 3 connector
      6. 4 x SATA 6Gb/s connectors
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 1 x S/PDIF Out header
      10. 1 x USB 3.1 Gen 1 header
      11. 2 x USB 2.0/1.1 headers
      12. 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
      13. 1 x speaker header
      14. 1 x Clear CMOS jumper
      15. 1 x chassis intrusion header
    • Back Panel Connectors
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x D-Sub port
      4. 1 x DVI-D port
      5. 1 x HDMI port
      6. 4 x USB 3.1 Gen 1 ports
      7. 2 x USB 2.0/1.1 ports
      8. 1 x RJ-45 port
      9. 3 x audio jacks (Line In, Line Out, Mic In)
    • I/O Controller
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Overheating warning
      5. Fan fail warning
      6. Fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 1 x 128 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        @BIOS
        EasyTune
        Fast Boot
        Game Boost
        ON/OFF Charge
        Smart Backup
        System Information Viewer
      2. Support for Q-Flash
      3. Support for Xpress Install
    • Bundled Software
      1. Norton® Internet Security (OEM version)
      2. cFosSpeed
    • Operating System
      1. Support for Windows 10 64-bit
      2. Support for Windows 7 64-bit
        * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU.
        * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
    • Form Factor
      1. Micro ATX Form Factor; 24.4cm x 19.5cm
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
