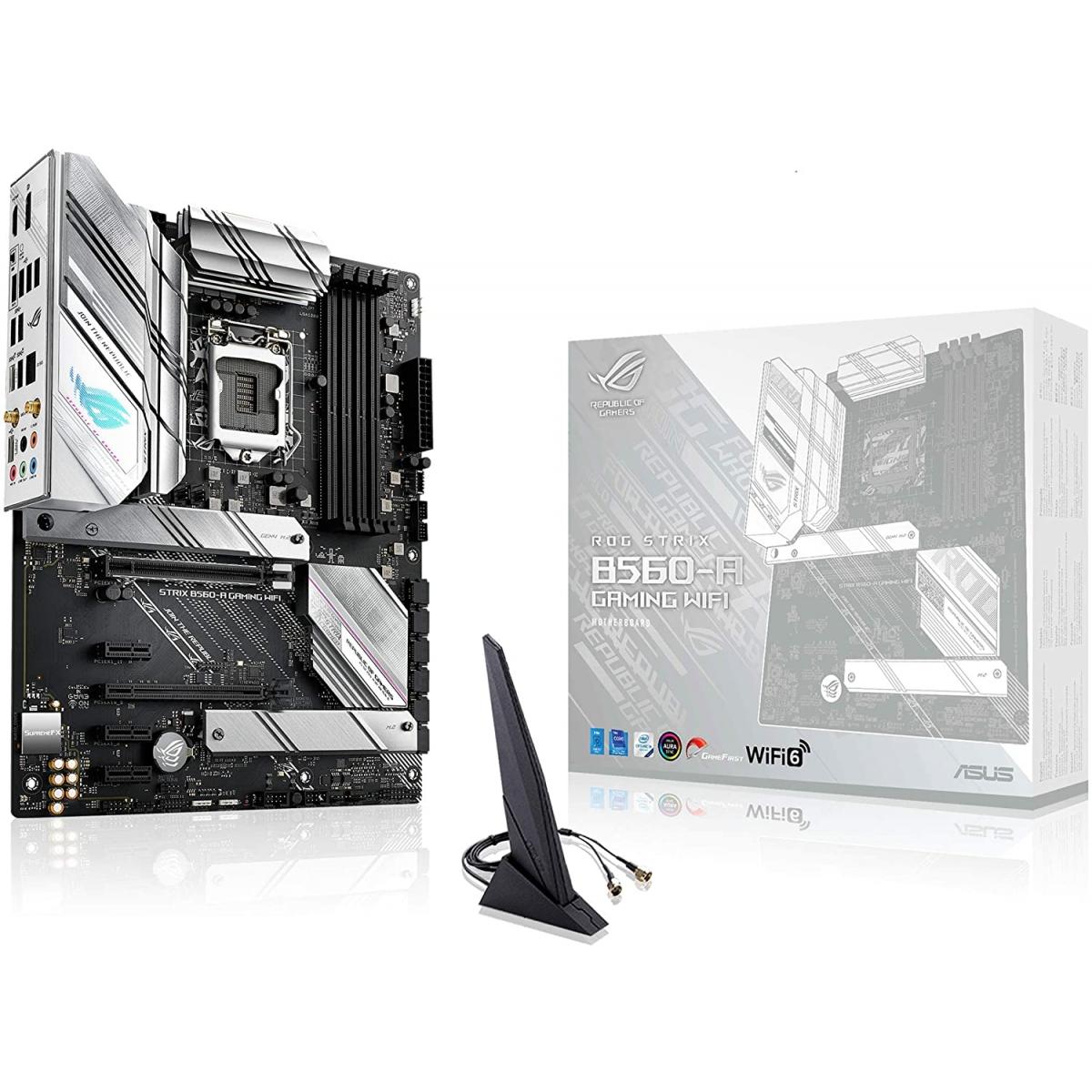

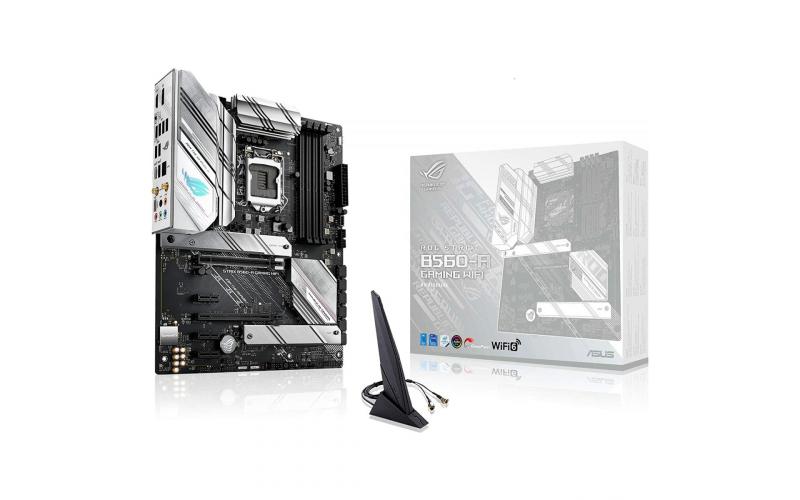

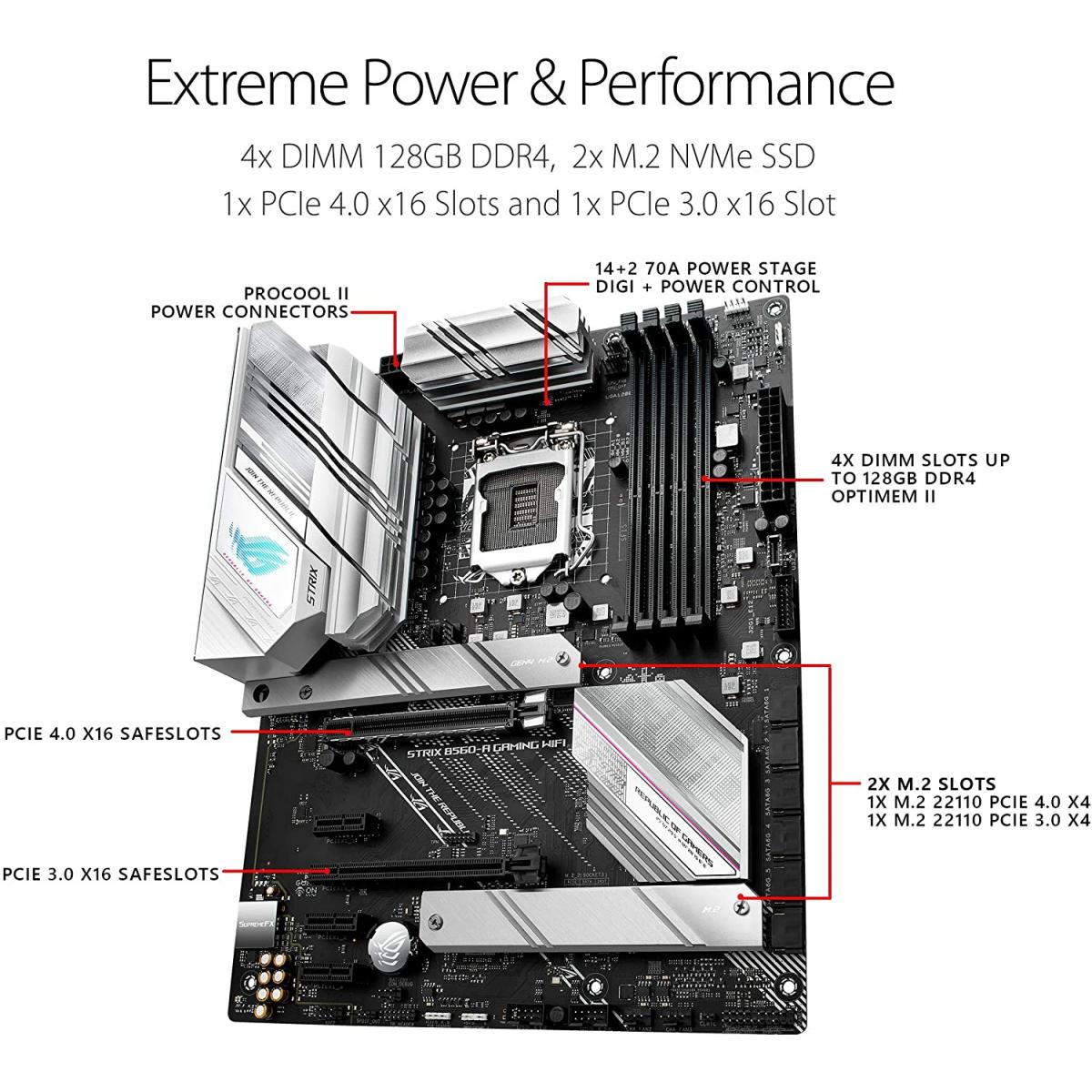

ASUS ROG Strix B560-A (WiFi 6) Intel B560 Gaming Motherboard

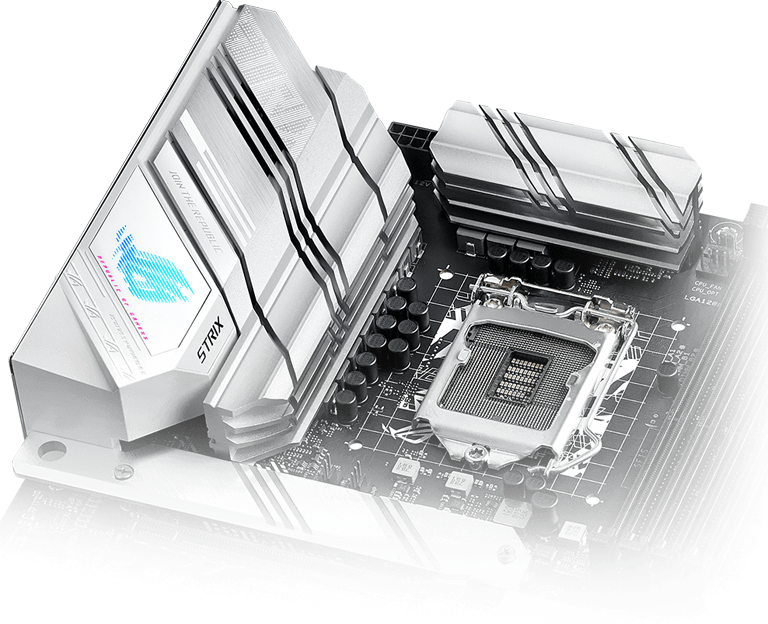

Power Design

TEAMED POWER STAGES

8+2 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.

ALLOY CHOKES AND CAPACITORS

Superior chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

PROCOOL POWER CONNECTOR

The ASUS ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.

DIGI+ POWER CONTROL

The built-in Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.

SIX-LAYER PCB

The PCB design quickly dissipates heat around the VRM to improve overall system stability and provide the CPU with more overclocking headroom.

Cooler by Design

ROG Strix B560 motherboards feature comprehensive cooling options that are configurable via Fan Xpert 4 or the UEFI BIOS.

Two-way AI Noise Cancelation

This utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio, while preserving vocals at the same time. Distracting keyboard clatter, mouse clicks and other ambient noises are intelligently neutralized so you can hear and be heard with crystal clarity while gaming or in calls.

* An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.

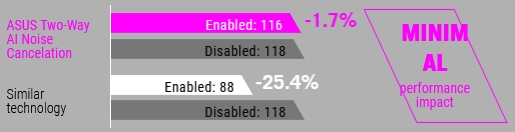

COD: MW - FPS (2560 x 1440)

* Testing configuration: CPU: 11th Gen Intel Core Processor; Motherboard: ROG MAXIMUS XIII HERO; Graphics card: NVIDIA RTX 3070; DRAM: G.SKILL F4-3200C16Q-32GVK; Power: SUPER FLOWER 550W; HDD: ADATA SX910 SSD 128GB; Cooling: Enermax T.B.APOLLISH; Game: CALL OF DUTY: MODERN WARFARE; Voice Communication App: Discord (In-app noise canceling effects disabled) ; Background noise: Keyboard typing, mouse clicking, people talking, and music playing

* Actual performance varies by configuration

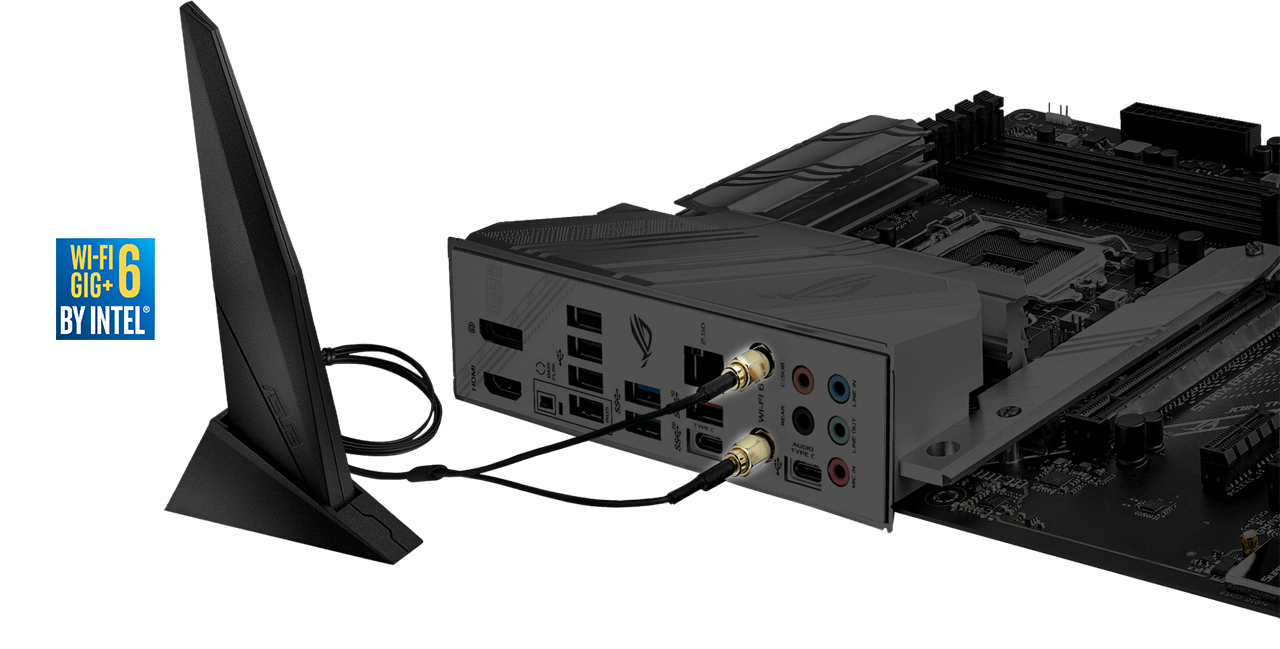

AI Networking

The proprietary ROG GameFirst VI utility is designed to help all users — beginners, experts, and everyone in between — optimize network settings to ensure smooth online gameplay. New to this generation, GameFirst VI features AI enhanced identification and boost technology to ensure faster and smarter network optimization.

SupremeFX

Leveraging premium components together with advanced circuit layout optimizations and shielding techniques, ROG SupremeFX technology ensures pristine audio for all inputs and outputs. Front panel audio output quality is further preserved by a Savitech amplifier that's capable of driving a diverse range of gaming headsets and high-fidelity headphones.

UNDENIABLY ROG STRIX

A striking silver white finish and contrasting Aura-RGB-illuminated glitch-effect logo give ROG Strix B560-A Gaming WiFi a bold aesthetic that immediately catches the eye. Parallel strakes and dotted text on the aluminum I/O shroud, M.2 and PCH heatsinks echo the ROG Strix fundamentals of speed, diversity and attitude to tie the whole theme together.

OUTSHINE THE COMPETITION — ASUS AURA SYNC

ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs, as well as lighting strips connected to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.

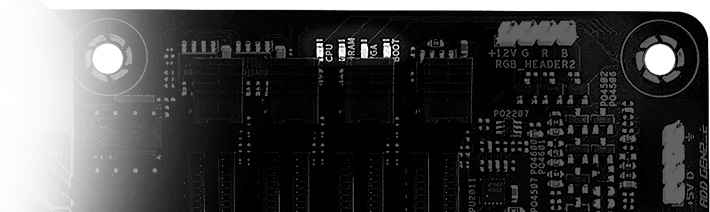

ADDRESSABLE GEN 2 RGB HEADER

ROG Strix B560-A Gaming WIFI’s Addressable Gen 2 RGB headers are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
