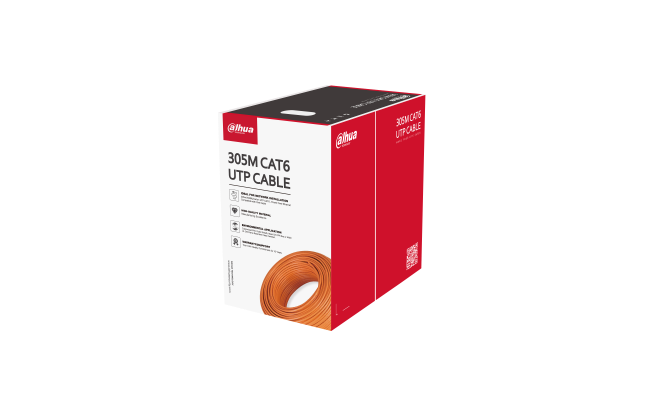

Dahua UTP CAT6 Cable 305m

Description

The Dahua PFM922I-6UN-C is a 305-meter (1000-foot) unshielded twisted pair (UTP) CAT6 network cable designed for high-speed data transmission and Power over Ethernet (PoE) applications.

Key Features:

• 305.0 m (1000 ft) per carton

• Supports Power over Ethernet (PoE)

• Customized PVC outer sheath; meets CE CPR Eca flame retardant class certification

• High manufacturing standards

• 10-year warranty

Specifications:

• Dimensions: 390.0 mm x 390.0 mm x 247.0 mm (L × W × H)

• Weight: Net ≥9.2 kg; Gross ≥10.2 kg

• Material:

  • Conductor: CCA (Copper content 22%–31%)

  • Insulation: HDPE

  • Sheath: PVC

  • Separator: PE

  • Rip Cord: Polyester

• Color Options: Orange

• Power Requirements: Supports PoE

• Other Specs:

  • Conductor Diameter: 0.57 mm ± 0.01 mm

  • American Wire Gauge: 23AWG

  • Impedance: 100 ± 15Ω

  • Near End Cross Talk: ≥39.30 dB/100 m @250 MHz

  • Max. Attenuation: 34.8 dB/100 m @250 MHz

  • Return Loss: ≥17.3 dB/100 m @250 MHz

  • Operating Temperature: –20°C to +60°C

  • Installation Temperature: 0°C to +50°C

  • Storage Temperature and Humidity: –10°C to +40°C, <60% RH
