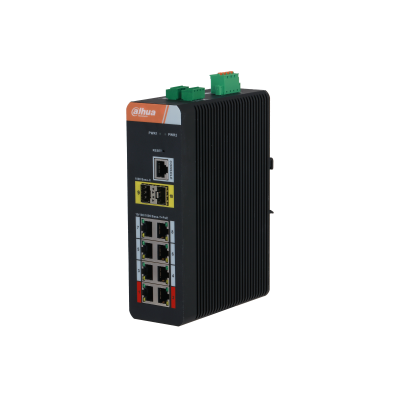

Dahua 10-Port Managed Industrial Gigabit Switch with 8-Port PoE

Description

The Dahua DH-IS4210-8GT-120 is a 10-port managed industrial gigabit switch featuring 8 PoE ports. Designed for industrial applications, it supports various PoE standards and offers robust performance in harsh environments.
Key Features:

• All-gigabit port design

• Supports IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt (red port) standards

• 250 m long-distance PoE transmission (10 Mbps)

• PoE Watchdog

• Supports STP, RSTP, and ERPS

• IEEE802.1Q-based VLAN configuration

• Manual link aggregation and static LACP

• Desktop mount and DIN-rail mount
  Specifications:

• Dimensions: 125 mm × 53.5 mm × 175.0 mm

• Weight: Net Weight: 1.25 kg; Gross Weight: 1.52 kg

• Material: Metal enclosure

• Color Options: Black

• Power Requirements: 53 VDC

• Other Specs:

  • Ethernet Ports: 8 × RJ45 10/100/1000 Mbps

  • Optical Ports: 2 × SFP 1000 Mbps

  • Console Port: 1 × Console port

  • PoE Power: Port 1-2 ≤90 W; Port 3-8 ≤30 W; Full load ≤120 W

  • Switching Capacity: 20 Gbps

  • Packet Forwarding Rate: 14.88 Mpps

  • Packet Buffer Size: 4.1 Mbit

  • MAC Table Size: 8K

  • VLAN Number: 4K

  • Operating Temperature: –40 °C to +75 °C

  • Operating Humidity: 5%–95% (non-condensing)

  • Certifications: CE, FCC
