Cat6 SFTP 23 AWG PVC Solid Cable – 305m Roll

Description

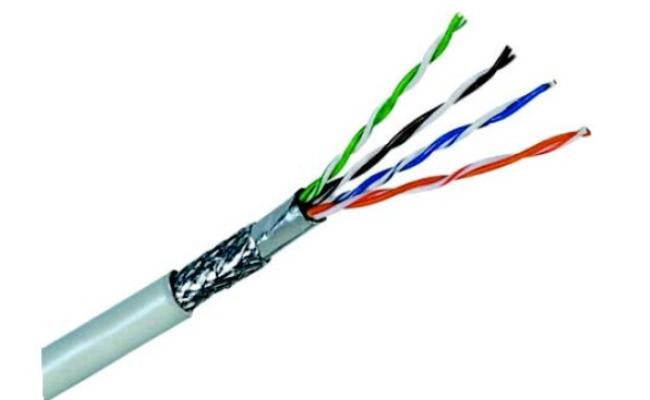

The D-Link NCB-C6SFGRR-305 is a 305-meter Cat6 SFTP (Shielded Foiled Twisted Pair) cable designed for high-speed data transmission in networking environments. Featuring 23 AWG solid bare copper conductors, aluminum/polyester foil shielding, and tinned copper braiding, it ensures reliable performance for Ethernet applications.

Key Features:

• Category 6 SFTP cable for high-speed data transmission

• 23 AWG solid bare copper conductors

• Aluminum/polyester foil shielding with tinned copper braiding

• PVC jacket material

• Suitable for 10BASE-T, 100BASE-TX, and 1000BASE-T networks

• Supports Power over Ethernet (PoE) applications

Specifications:

• Dimensions: Length: 305 meters; Cable Diameter: 7.6 mm nominal

• Weight: Approximately 25 kg

• Material: Solid bare copper conductors, PVC jacket

• Color Options: Gray

• Power Requirements: Not applicable

• Other Specs:

  • Insulation Material: High-Density Polyethylene (HD-PE)

  • Mutual Capacitance: < 5.6 nF/100m

  • Characteristic Impedance: 100Ω ±5%

  • Conductor Resistance: < 9.38Ω/100m

  • Resistance Unbalance: 5% Max

  • Capacitance Unbalance: 330 pF/100m

  • Delay Skew: < 45 ns

  • Bending Radius: < 8 x Cable Diameter at –20°C ± 1°C

  • Pulling Force: 11.5 kg

  • Temperature Range: -20° to +70°C

  • Compliance: TIA/EIA-568C.2, ISO/IEC 11801, RoHS
