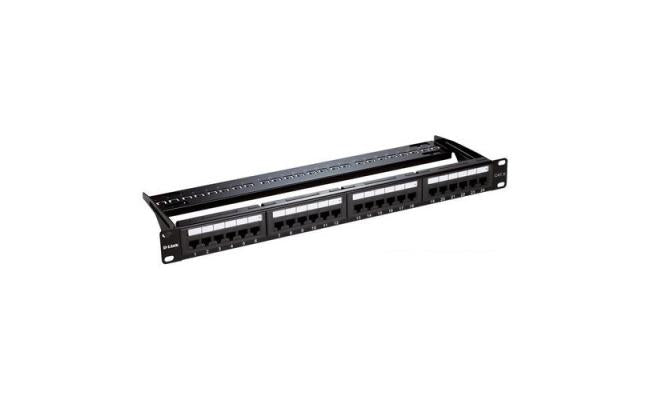

24-Port Cat6 STP Fully Loaded Patch Panel

Description

The D-Link NPP-C62BLK241 is a 24-port Cat6 Shielded Twisted Pair (STP) fully loaded patch panel designed for high-performance network installations. It ensures efficient cable management and reliable connectivity in structured cabling systems.

Key Features:

• 24 RJ45 ports with Cat6 STP compatibility

• 1U rack-mountable design suitable for standard 19” racks

• Hand screw for easy cover removal

• Eight-port RJ45 modules applied

• Jack shutters to prevent dust accumulation

• Right-angle between IDCs and RJ45 keystone jacks for easy installation

• ID stripes for port identification

• IDC compatible with 110 & Krone punch-down tools

• RoHS and UL certified

Specifications:

• Dimensions: Standard 1U height for 19” racks

• Material: Panel: SECC, 1.2mm thickness; RJ45 Jack Housing: PBT+ Glass Fiber UL94V-0; Contact Bracket: PBT+ Glass Fiber UL94V-0; RJ45 Jack Contact: Phosphor Bronze with Nickel plating and 50 micro-inches Gold plating on plug contact area; RJ45 Jack Shield: Bronze with Nickel plating; Dust Cover: PC UL94V-2; IDC Housing: PC+ Glass Fiber UL94V-2; Terminal: Phosphor Bronze with Tin plating; Ground Wire: 18 AWG wire with Green/Yellow striped color; PCB: FR4 UL94V-0

• Color Options: Black

• Other Specs: Supports T568A & T568B wiring schemes; Insertion force: 30N max (IEC 60603-7-5); Retention strength: 7.7 kg between jack and plug; Operating temperature: -10°C to 60°C; Life (mating cycles): Jack: 750 cycles min; IDC: suitable for 22-26 AWG stranded and solid wire, compatible with both 110 & Krone punch-down tools; Cat6 transmission performance complies with ANSI/TIA/EIA 568B.2-1 standard
