MSI PRO B660-A DDR4 12th Gen Intel Core PCIe 4 2.5G LAN 2x M.2 Slots USB 3.2 Mainboard
- MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- The latest Gen4 PCI-E and M.2 solution with up to 64GB/S bandwidth for maximum transfer speed.
- Featuring premium 2.5G LAN with LAN manager to deliver better network experience.
- Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Compatible with the latest PC chassis and perfect for external drives and other mobile devices.
- Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
- By providing 8+4 pin connectors to ensure adequate power supply to unleash ultimate multi-core CPU performance.
- Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
- With premium layout and fully digital power design to support more cores and provide better performance.
- Easiest way to troubleshoot.
BUSINESS ELEGANCE
For creative professionals looking to update their system, the MSI PRO B660-A DDR4 offers a quality platform with the capacity to support a broad spectrum of both cutting-edge and legacy hardware.
SUPPORTS INTEL CORE 12TH GEN PROCESSORS
The PRO B660-A DDR4 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.
Form Factor: ATX
Socket Type: LGA 1700
Chipset: Intel B660
INTEGRATED COOLING FEATURES
VRM Heatsinks: Ensure excellent thermal dissipation under heavy loading.
PCB Cooling: Printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
Chipset Heatsink: Provides passive cooling.
Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures.
FORTIFIED PCI-E 4.0 X16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
* 1 x PCI-e 4.0 x16 slots (with Steel Armor)
* 1 x PCI-e 3.0 x16 slots
* 1 x PCI-e 3.0 x1 slot

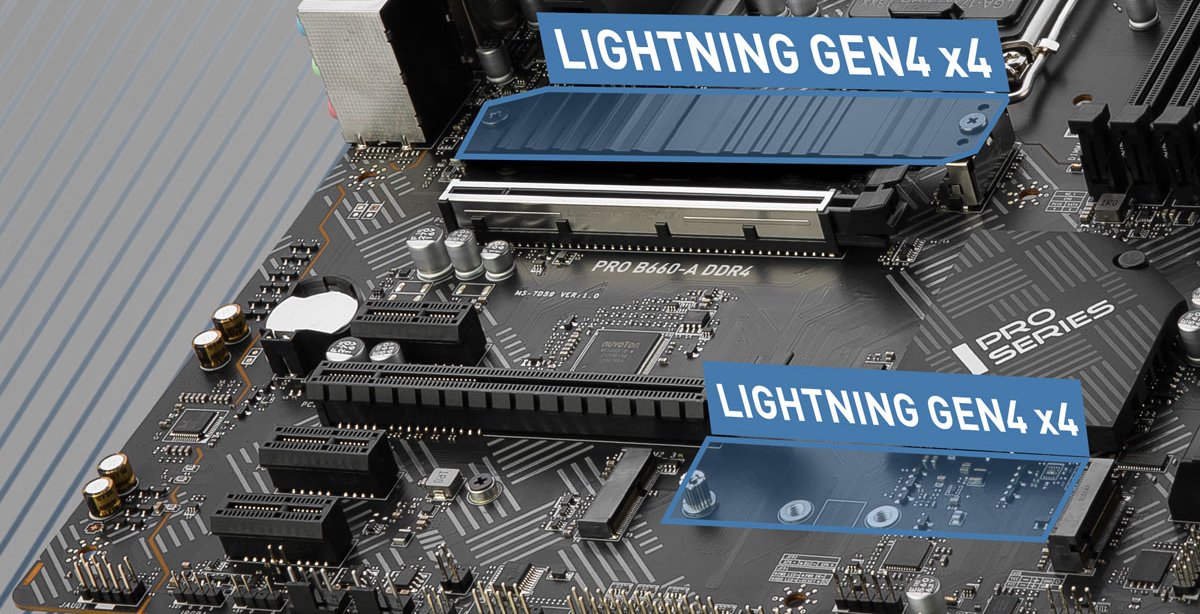

GEN4 M.2 CONNECTOR
The PRO B660-A DDR4 motherboard features MSI's latest M.2 slots (Intel Optane supported):
* 2 x Gen4 x4 64Gb/s slots

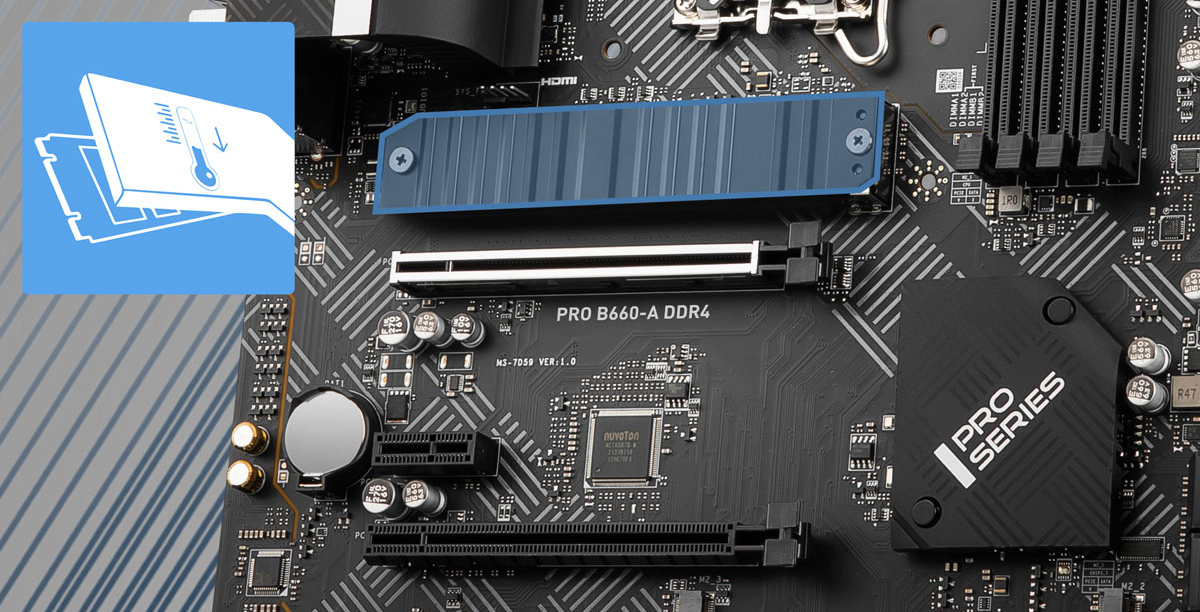

M.2 SHIELD FROZR
Even the world's fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

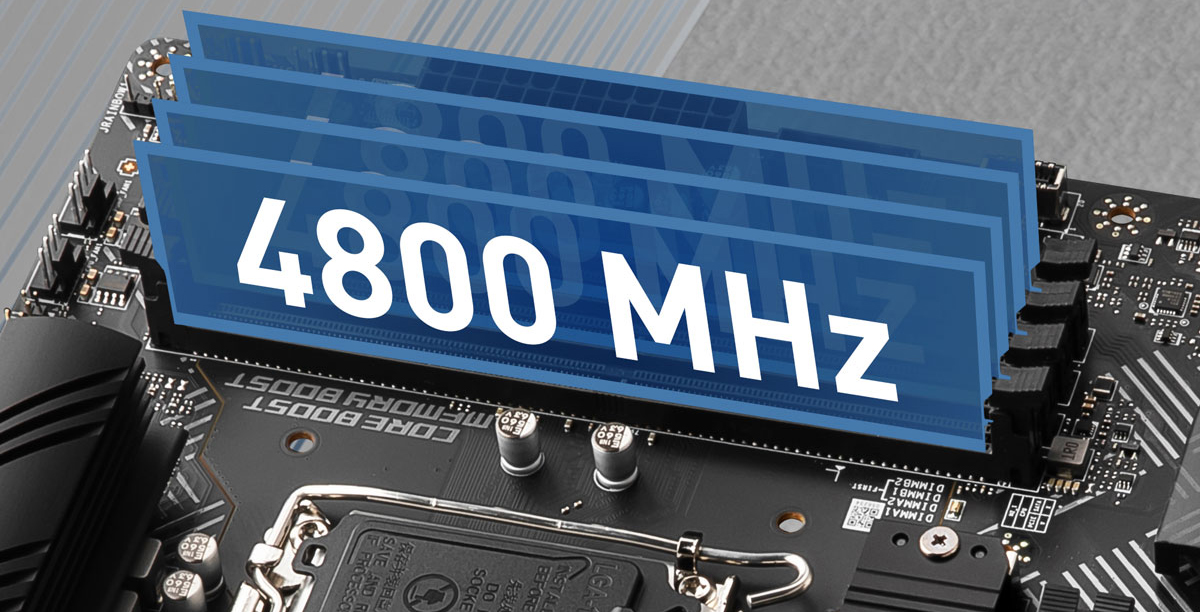

4 X DDR4 DUAL CHANNEL (4800 MHZ OC)
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimized memory speed and stability.
2.5G LAN CONTROLLER
2.5G LAN: A 2.5Gbps LAN controller delivers a premium network experience.

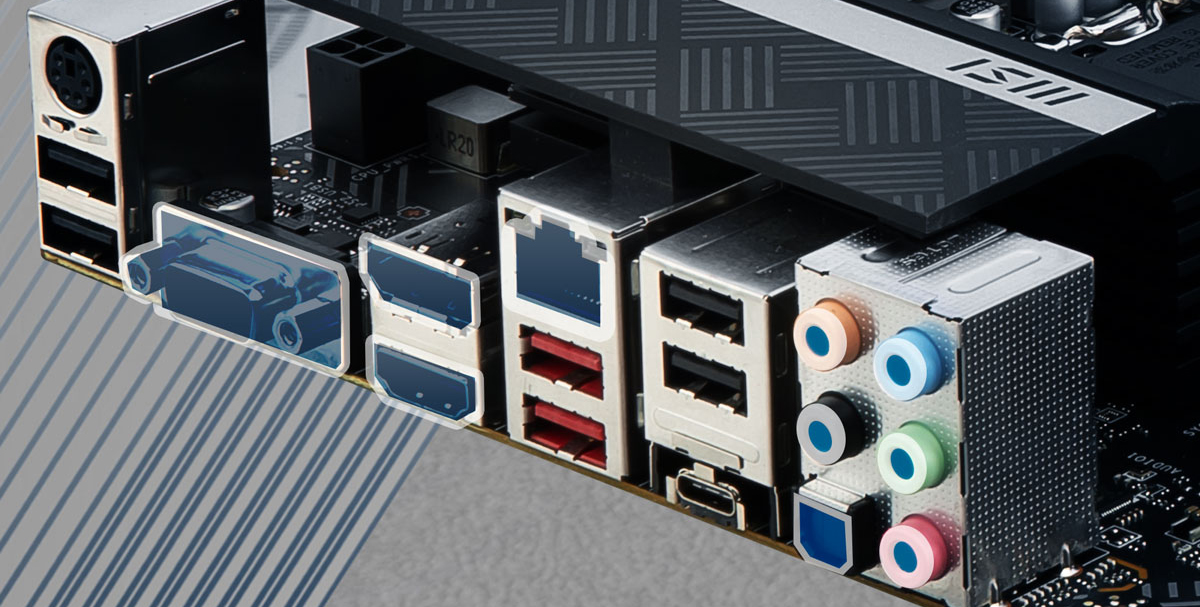

4K & Legacy Video Support: Featuring HDMI, DisplayPort and VGA port, supports both digital and legacy display.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost
| Motherboard Specifications | |
|---|---|
| CPU Support | 12th Generation Intel CPU |
| CPU Socket Type | LGA 1700 |
| Chipset | INTEL B660 |
| Form Factor | ATX |
| Memory Type | DDR4 |
| Memory Speed | 4800 MHz |
| Maximum Memory | 128 GB |
| Memory Slots | 4 Slots |
| M.2 Slots | Yes |
| Wireless LAN | No |
| Warranty | |
| Warranty | 1 years |
