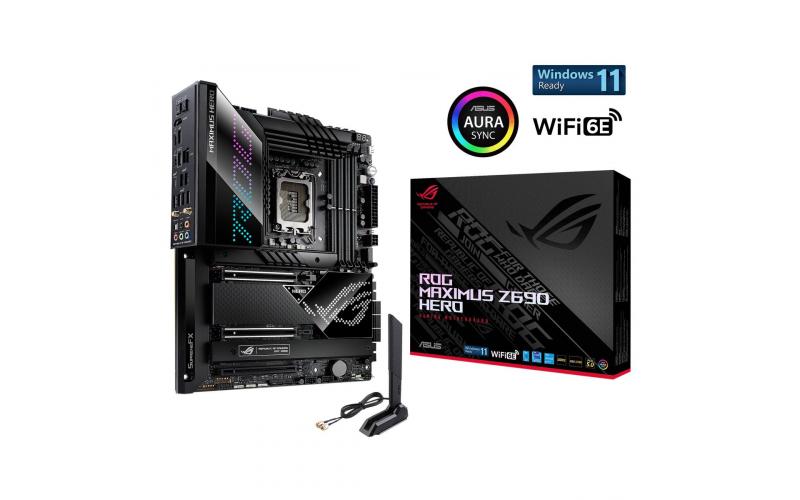

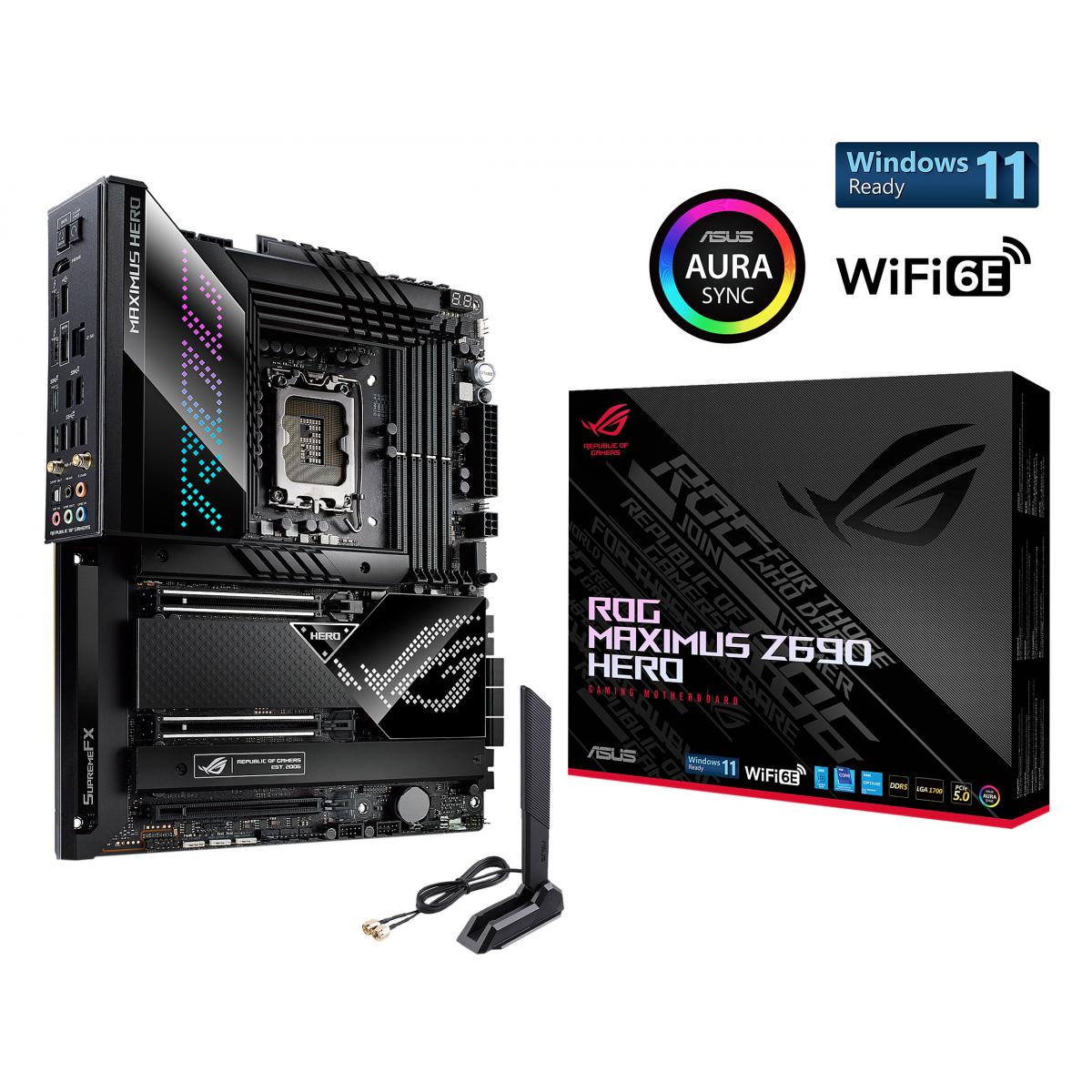

ASUS ROG MAXIMUS Z690 HERO (WiFi 6E) DDR5 ATX Gaming Motherboard

Intel LGA 1700 socket: Ready for 12th Gen Intel Core processors and Windows 11, support PCIe 5.0 and DDR5
Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking(GameFirst VI) and Two-Way AI Noise-Cancelation for easy configuration
Robust Power Solution: 20+1 teamed power stages rated for 90 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
High-performance Networking: Onboard WiFi 6E, Bluetooth V5.2, Intel 2.5Gb Ethernet, and ASUS LANGaurd
Fastest Gaming Connectivity: PCIe 5.0, ROG Hyper M.2 card, USB 3.2 Gen 2×2 front-panel connector, 2 x Thunderbolt 4 (USB Type-C port)
Industry-leading Audio: ROG SupremeFX ALC4082 withESS ES9018Q2C DAC for pinpoint positioning and dynamics
All ASUS Z690 Motherboards designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets

Key Features:

Brand: Asus
Motherboard Specifications: CPU Support 12th Generation Intel CPUCPU Socket Type LGA 1700Chipset INTEL Z690Form Factor ATXMemory Type DDR5Memory Speed 6200 MHzMaximum Memory 128 GBMemory Slots 4 SlotsM.2 Slots YesWireless LAN Yes
Warranty: 1 years

See Full Specification

Availability:: Out Of Stock
Product Code:: ROG MAXIMUS Z690 HERO

JOD 549.00 JOD 499.00

You save JOD 50.00

Eagle

Buy Now

Compare this Product

Description

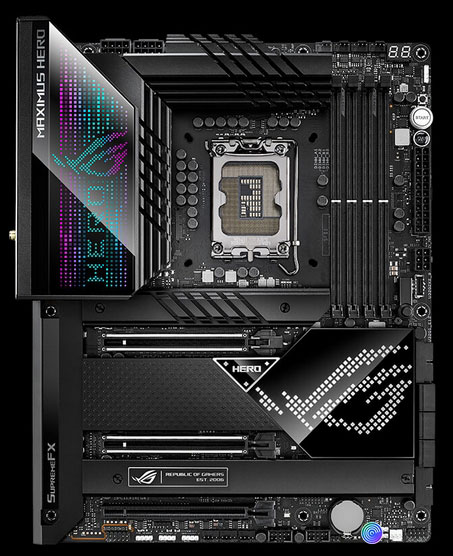

Asus ROG Maximus Z690 Hero

Built with boosted power delivery, optimized cooling design, and support for the latest DDR5, the ROG Maximus Z690 Hero is well equipped to unleash the full potential of the 12th Gen Intel Core processors. It also packs future-ready connectivity to keep you ahead of the competition, including PCI 5.0 for VGA card and M.2 (via Hyper M.2 add-on card) SSD, USB 3.2 Gen2 x2 (20 Gbps), dual Thunderbolt 4, onboard WiFi 6E, and Intel 2.5 Gb Ethernet. And boasting DIY-friendly design, comprehensive tuning options, and meticulously crafted heatsinks with animated Polymo lighting display on the I/O cover, the ROG Maximus Z690 Hero gives you a head start on your dream build.

Intelligent Motherboard

Intelligent software solutions help ensure that your system performs at its best. The latest ASUS AI-powered enhancements span four pillars of performance, including overclocking, cooling, networking and onboard audio, making advanced tweaks and optimization accessible to new recruits and savvy PC DIY veterans alike.

AI Overclocking

Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push each system to its limits.

AI Cooling

Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm reduces unnecessary system noise by monitoring CPU temperatures and dynamically adjusting fans to optimal speeds.

AI Networking

GameFirst VI optimizes networking performance by allocating bandwidth in real time based on application usage scenarios and corresponding learning algorithms.

Two-Way AI Noise Cancelation

This utility leverages a massive deep-learning database to reduce over 500 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.

PERFORMANCE

With tailored power delivery and support for the latest high-performance memory, ROG Maximus Z690 Hero easily handles the demands of Intel Alder Lake-S processors. It features an intelligent VRM design that’s rated for 90 amps, plus carefully selected components and memory layout optimizations to cater to enthusiasts looking to create a battle-ready rig with balanced performance.

Teamed Power Architecture

Today’s CPU architectures place incredible demands on motherboard power design by transitioning from deep power-saving modes, going from lower-power mode to full load in an instant. The latest ROG VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.

High-quality components

8+8-pin ProCool II power connectors

Two ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.

20+1 power stages

The VRM features 20+1 power stages, each rated to handle 90 amps.

MicroFine alloy chokes

Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.

10K black metallic capacitors

Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.

DDR5 Overclocking strength

Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, the Maximus Z690 lineup breaks performance limits by providing a stacked suite of overclocking parameters for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).

A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit and push frequency and timings to the max.
Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. ROG motherboards leverage onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory.

COOLING

Top-level PC performance demands exceptional cooling. The ROG Maximus Z690 Hero is armed with robust VRM and chipset heatsinks that provide the perfect balance of mass and surface area for heat dissipation. Load up with an AIO or custom cooling loop paired with your choice of fans to keep thermals under complete control.

Cooler by Design

1. VRM and aluminum I/O heatsink

A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.

2. M.2 heatsinks

Three dedicated heatsinks keep up to three M.2 drives in the optimum operating temperature range for consistent performance and reliability.

3. L-shaped heatpipe

An L-shaped heatpipe allows for rapid and even heat transfer from the VRM.

4. High-conductivity thermal pad

A high-quality thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.

5. M.2 backplates

Dual M.2 slots feature backplate blocks that ensure high-performance drives deliver peak performance, even when airflow is restricted.

6. Chipset heatsink

A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.

Thermal Management

ROG Maximus Z690 Hero features the most comprehensive cooling options ever.

Multiple temperature sources

Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or UEFI.

4-pin PWM/DC fan headers and ASUS HYDRANODE

Every onboard header auto-detects any PWM or DC fan, with three chassis fan headers offering ASUS HYDRANODE support.

AIO pump

A dedicated PWM/DC header for self-contained water-cooling setups.

ROG Water-Cooling Zone

Dual water-temperature headers and a flow-rate header feed information straight into the AI Suite utility, allowing you to track coolant temperatures and the flow rate of the entire loop.

Water pump+

A dedicated header can supply over 3 amps to a high-performance PWM or DC water pumps.

Water in/out

A dedicated header enables monitoring of temperatures at the input/output points of any component.

Water flow

A dedicated header enables constant monitoring of flow rate throughout the entire loop.

CONNECTIVITY

The latest connectivity solutions ? WiFi 6E, PCIe 5.0 and two Thunderbolt 4 USB Type-C ports ? empower supersmooth networking and blisteringly fast file transfers. And for enthusiasts looking for high-fidelity audio, the SupremeFX ALC4082 codec takes gaming immersion to a whole new level while also saving a PCIe slot.

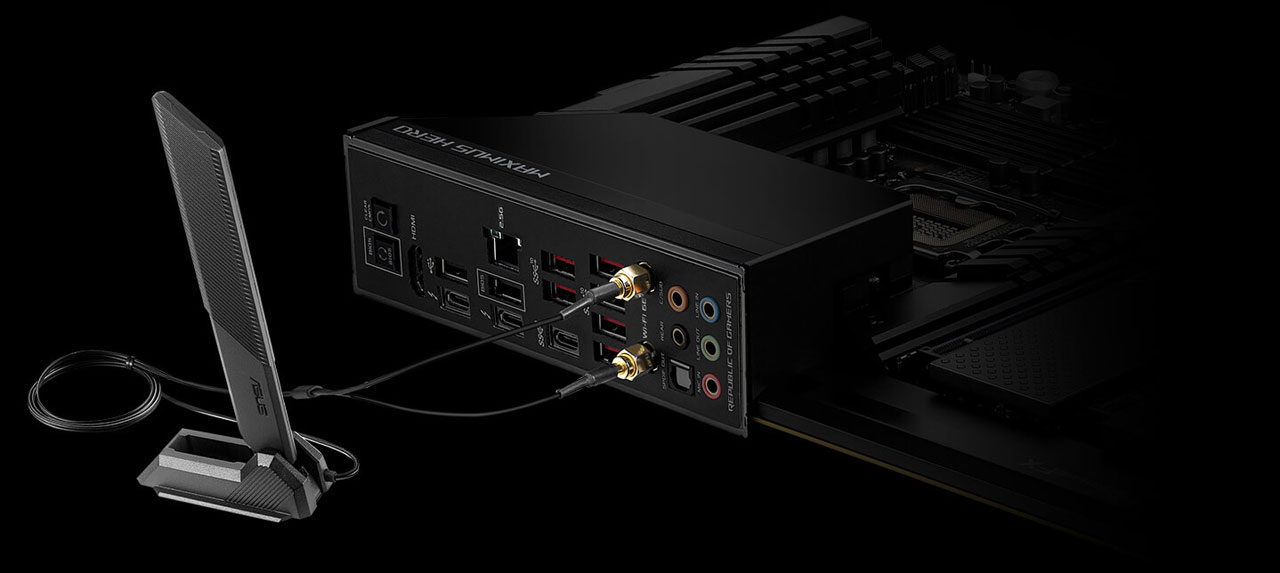

Intel WiFi 6E (Gig+)

Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.

Intel 2.5 Gb Ethernet

Onboard Intel 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, smooth lag-free gaming and high-res video streaming.

USB 3.2 Gen 2×2 Type-C Front-Panel Connector with Quick Charge 4+

USB 3.2 Gen 2×2 adds an additional lane that can boost Type-C data transfers with speeds of up to 20 Gbps. The port also features Quick Charge 4+ technology that can quickly charge devices up to 60 W with a PCIe power supply cable plugged into the nearby 6-pin connector.

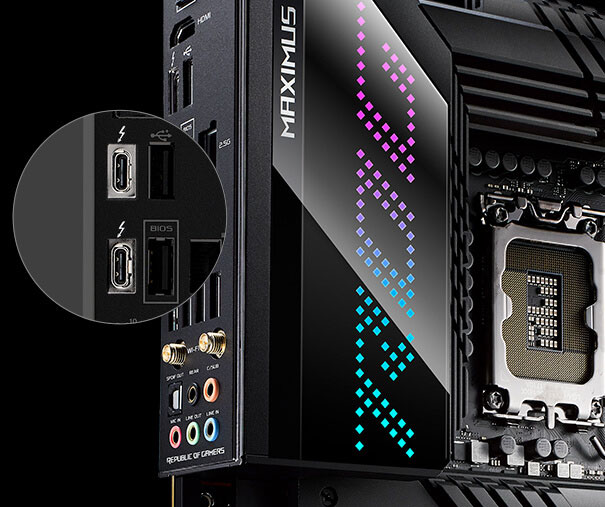

Two Onboard Thunderbolt 4 USB Type-C Ports

Each port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. Thunderbolt 4 also supports up to two external 4K displays and extends PCIe bandwidth to up to 32 Gbps.

Three Onboard M.2 Slots

ROG Maximus Z690 Hero features three onboard M.2 slots, with two offering support for the latest PCIe 4.0 SSDs.

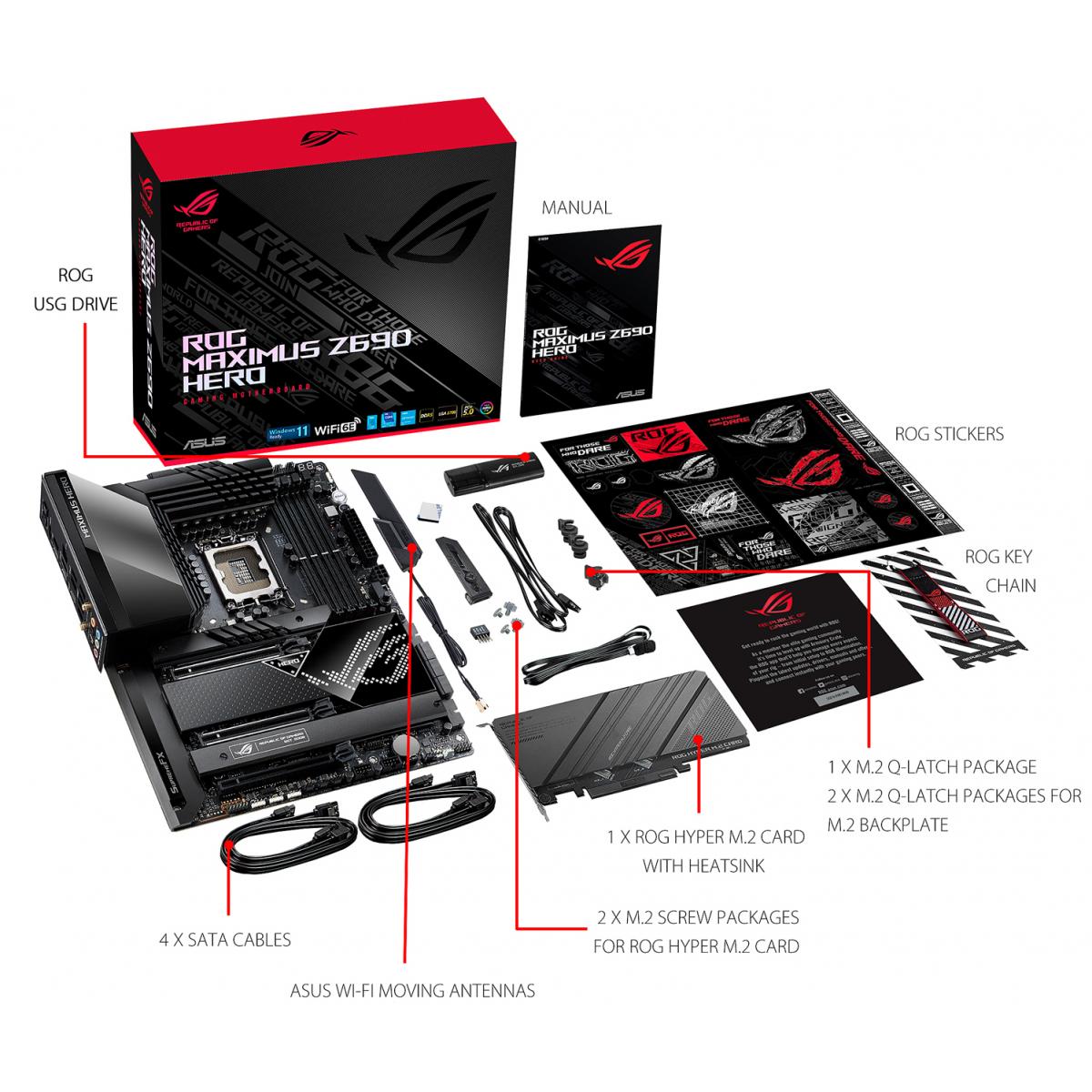

ROG HYPER M.2 CARD

PCIe 5.0 READY

If users need more M.2 storage or even faster data transfers, the bundled ROG Hyper M.2 Card features two more slots, one of which is a PCIe 5.0 and ready to perform at up to twice the speed of the accompanying PCIe 4.0 slot.

Specification

Brand	Asus
Motherboard Specifications	CPU Support 12th Generation Intel CPU CPU Socket Type LGA 1700 Chipset INTEL Z690 Form Factor ATX Memory Type DDR5 Memory Speed 6200 MHz Maximum Memory 128 GB Memory Slots 4 Slots M.2 Slots Yes Wireless LAN Yes
Warranty	1 years
