Asus ROG Maximus Z690 Extreme EATX 24+1 Power Stages PCIe 5.0, WiFi 6E Thunderbolt 4 Aura Sync
- Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
- Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation for easy configuration
- Robust Power Solution: 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
- High Performance Networking: Onboard Wi-Fi 6E, Marvell AQtion 10Gb, Intel 2.5Gb Ethernet, and ASUS LANGuard
- Fastest Gaming Connectivity: PCIe 5.0, Gen 5 M.2 slots, USB 3.2 Gen 2x2 front-panel connector with Thunderbolt 4 support, rear triple USB Type-C ports
- Immersive Audio: ROG SupremeFX ALC4082 codec with ESS ES9018Q2C DAC for high-fidelity audio
- Unmatched Personalisation: AniMe Matrix LED display, 2” LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
- DIY Friendly Design: Pre-mounted I/O shield, PCIe slot Q-release, V-Latch switch, BIOS FlashBack, Q-Code, FlexKey, Q-Connector, M.2 Q-Latch, SafeSlot, ROG Glavis and ROG graphics card holder
- Availability:
- Out Of Stock
- Product Code:
- ROG MAXIMUS Z690 EXTREME
You save JOD 120.00
City Center for Computers

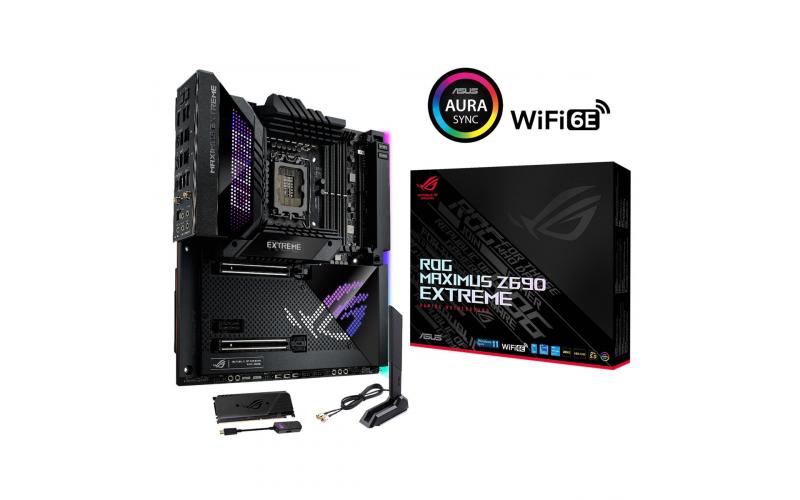

ROG MAXIMUS Z690 EXTREME
Intel Z690 EATX motherboard with 24+1 power stages, DDR5 with OptiMem III, Five M.2, USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+ Support, Dual Thunderbolt 4, PCIe 5.0, Onboard Wi-Fi 6E and Aura Sync RGB lighting
- Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
- Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation for easy configuration
- Robust Power Solution: 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
- High Performance Networking: Onboard Wi-Fi 6E, Marvell AQtion 10Gb, Intel 2.5Gb Ethernet, and ASUS LANGuard
- Fastest Gaming Connectivity: PCIe 5.0, Gen 5 M.2 slots, USB 3.2 Gen 2x2 front-panel connector with Thunderbolt 4 support, rear triple USB Type-C ports
- Immersive Audio: ROG SupremeFX ALC4082 codec with ESS ES9018Q2C DAC for high-fidelity audio
- Unmatched Personalisation: AniMe Matrix LED display, 2” LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
- DIY Friendly Design: Pre-mounted I/O shield, PCIe slot Q-release, V-Latch switch, BIOS FlashBack, Q-Code, FlexKey, Q-Connector, M.2 Q-Latch, SafeSlot, ROG Glavis and ROG graphics card holder

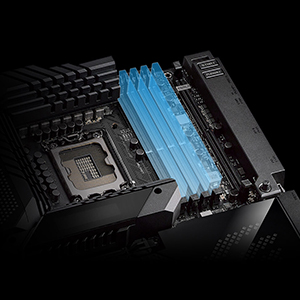

DDR5 OVERCLOCKING STRENGTH
Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, the Maximus Z690 lineup breaks performance limits by providing a stacked suite of overclocking parameters for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).
Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, the Maximus Z690 lineup breaks performance limits by providing a stacked suite of overclocking parameters for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).

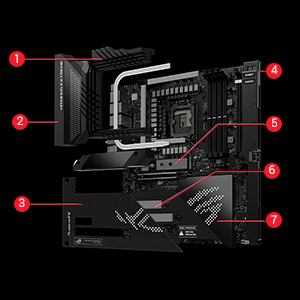

COOLER BY DESIGN
- VRM heatsink
- Aluminum, I/O cover
- Cold-forged heatsink
- Solid steel backplate
- High-Conductivity Thermal Pad
- M.2 Backplates
- Chipset Heatsink
- VRM heatsink
- Aluminum, I/O cover
- Cold-forged heatsink
- Solid steel backplate
- High-Conductivity Thermal Pad
- M.2 Backplates
- Chipset Heatsink

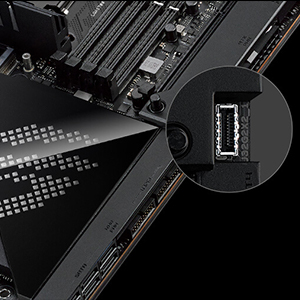

USB 3.2 GEN 2X2 TYPE-C FRONT-PANEL CONNECTOR WITH QUICK CHARGE 4+
Quick Charge 4+ technology can rapidly charge devices at up to 60W with a PCIe power supply cable plugged into the nearby 6-pin connector.
Quick Charge 4+ technology can rapidly charge devices at up to 60W with a PCIe power supply cable plugged into the nearby 6-pin connector.

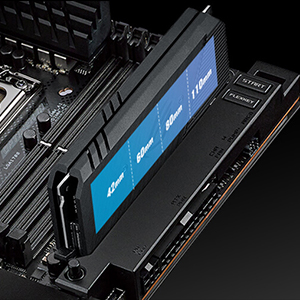

ROG DIMM.2
The ROG DIMM.2 module is an innovative expansion card that allows two M.2 drives to be connected via a DDR4 interface. You can then add a metal heatsink, helping to control thermals for maximum performance while elevating aesthetics.
The ROG DIMM.2 module is an innovative expansion card that allows two M.2 drives to be connected via a DDR4 interface. You can then add a metal heatsink, helping to control thermals for maximum performance while elevating aesthetics.
NETWORKING
- WIFI 6E
- MARVELL AQTION 10 GBPS ETHERNET
- INTEL 2.5 GB ETHERNET
- WIFI 6E
- MARVELL AQTION 10 GBPS ETHERNET
- INTEL 2.5 GB ETHERNET
| Motherboard Specifications | |
|---|---|
| CPU Support | 12th Generation Intel CPU |
| CPU Socket Type | LGA 1700 |
| Chipset | INTEL Z690 |
| Form Factor | EATX |
| Memory Type | DDR5 |
| Memory Speed | 6400 MHz |
| Maximum Memory | 128 GB |
| Memory Slots | 4 Slots |
| M.2 Slots | Yes |
| Wireless LAN | Yes |
| Warranty | |
| Warranty | 1 years |
