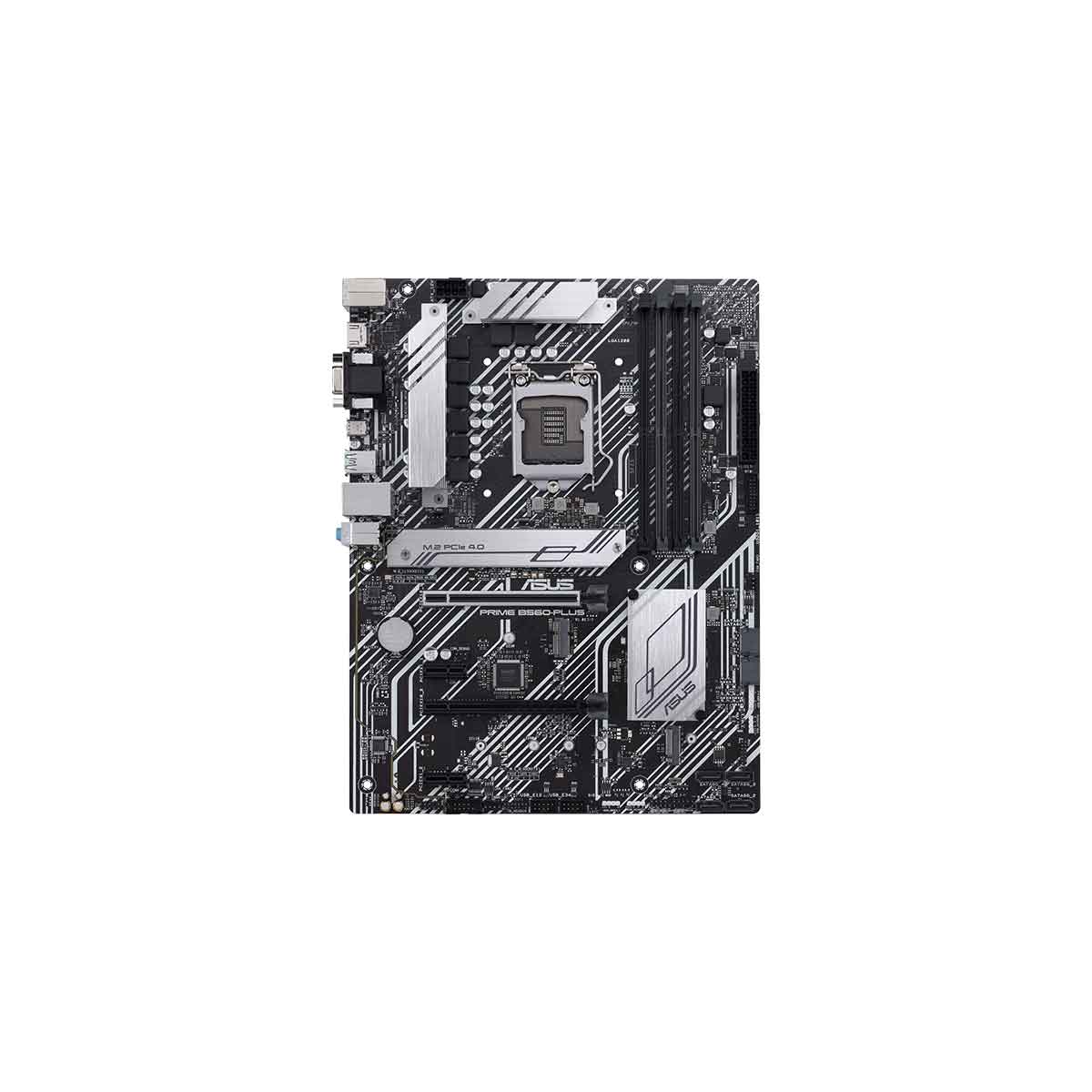

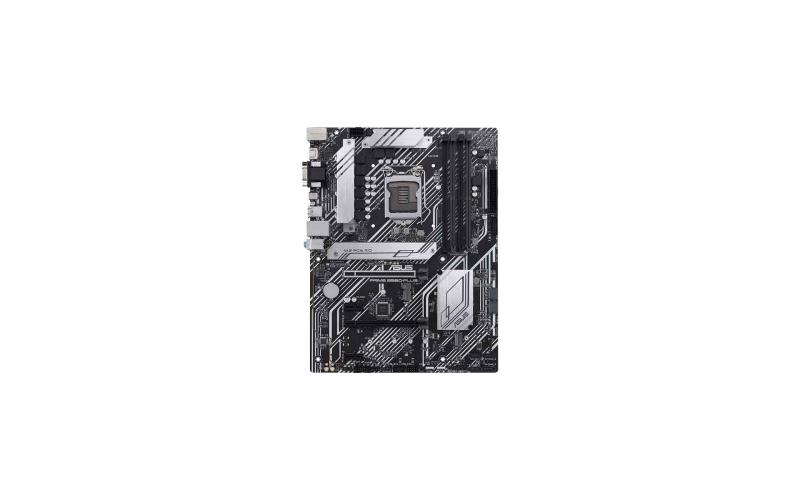

Asus Prime B560-PLUS ATX Aura Sync RGB lighting Motherboard

  • Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors
  • Comprehensive cooling: VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
  • Ultrafast connectivity: PCIe 4.0, Intel® 1 Gb Ethernet, rear USB 3.2 Gen 1 Type-C® and Thunderbolt™ 4 header support
  • 5X Protection III: Multiple hardware safeguards for all-round protection.

Availability:
Out Of Stock
Product Code:
90MB16N0-M0EAY0
JOD 115.00
Compu Jordan
Update Last Updated: 2023-03-07 23:09:51
Buy Now
Compare this Product
Asus Prime B560-PLUS ATX Aura Sync RGB lighting Motherboard

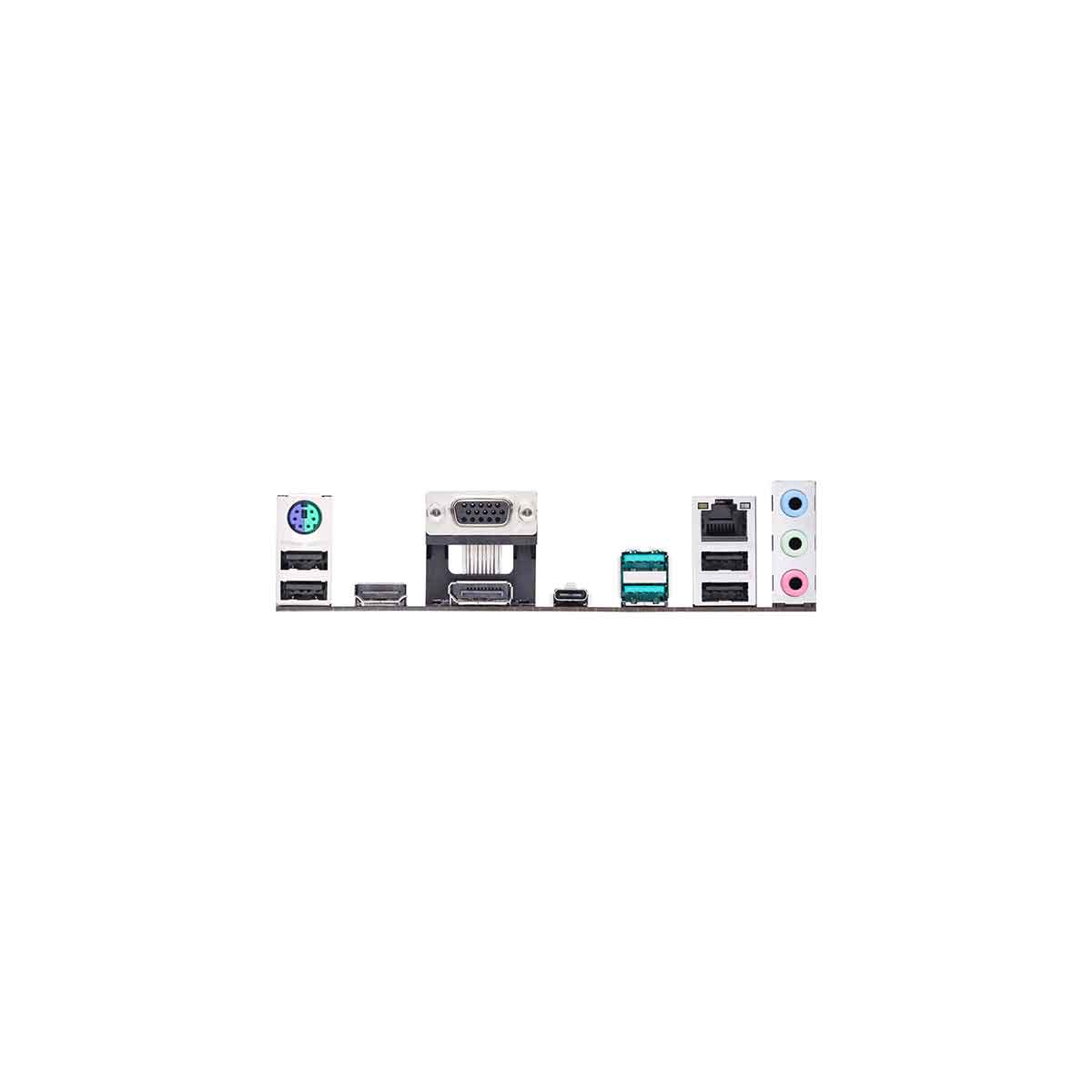

  • 1 x PS/2 combo port

  • 4 x USB 2.0

  • 1 x HDMI

  • 1x D-Sub

  • 1x DisplayPort

  • 1 x USB 3.2 Gen 1 Type-C®

  • 2 x USB 3.2 Gen 2 ports

  • 1Gb Ethernet

  • 3x Audio Jacks

  • PCIe 4.0 / 3.0 x16
      ● ASUS SafeSlot Core+

  • PCIe 3.0 x16 (max. @x4)
      -Intel® Optane™ Memory Ready

  • Audio Features
      ● Premium Japanese audio capacitors
      ● Audio Shielding
      ● Dedicated audio PCB layers

  • 8-pin connector

  • DDR4 4600 (OC) MHz

  • LGA 1200 Socket
      ● Intel® 11th Gen Core™ Processors & Intel® 10th Gen Processors

  • 2 x USB 3.2 Gen 1

  • M.2 PCIe 4.0 x4 mode

  • 6 x SATA 6Gb/s

  • Intel® B560 Chipset

  • 2 x addressable Gen 2 headers

  • 2 x AURA RGB headers

  • M.2 PCIe 3.0 x4 mode

  • 1 x Thunderbolt™ 4 header

Motherboard Specifications
CPU Support Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™
Pentium® Gold and Celeron® Processors
CPU Socket Type LGA 1200
Chipset B560
Form Factor ATX
Memory Type DDR4
Memory Speed 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC
Un-buffered memory
Maximum Memory 128 GB
Memory Slots 4 Slots
AMD Cross Fire No
NVIDIA SLI No
Wireless LAN No
Internal Connectors 1 x 4-pin CPU Fan header
3 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS jumper
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF out header
1 x 20-3pin System Panel header with Chassis intrude function
1 x SPI TPM header (14-1 pin)
1 x M.2 slot (key E)
1 x Thunderbolt 4 header
Warranty
Warranty 1 year
