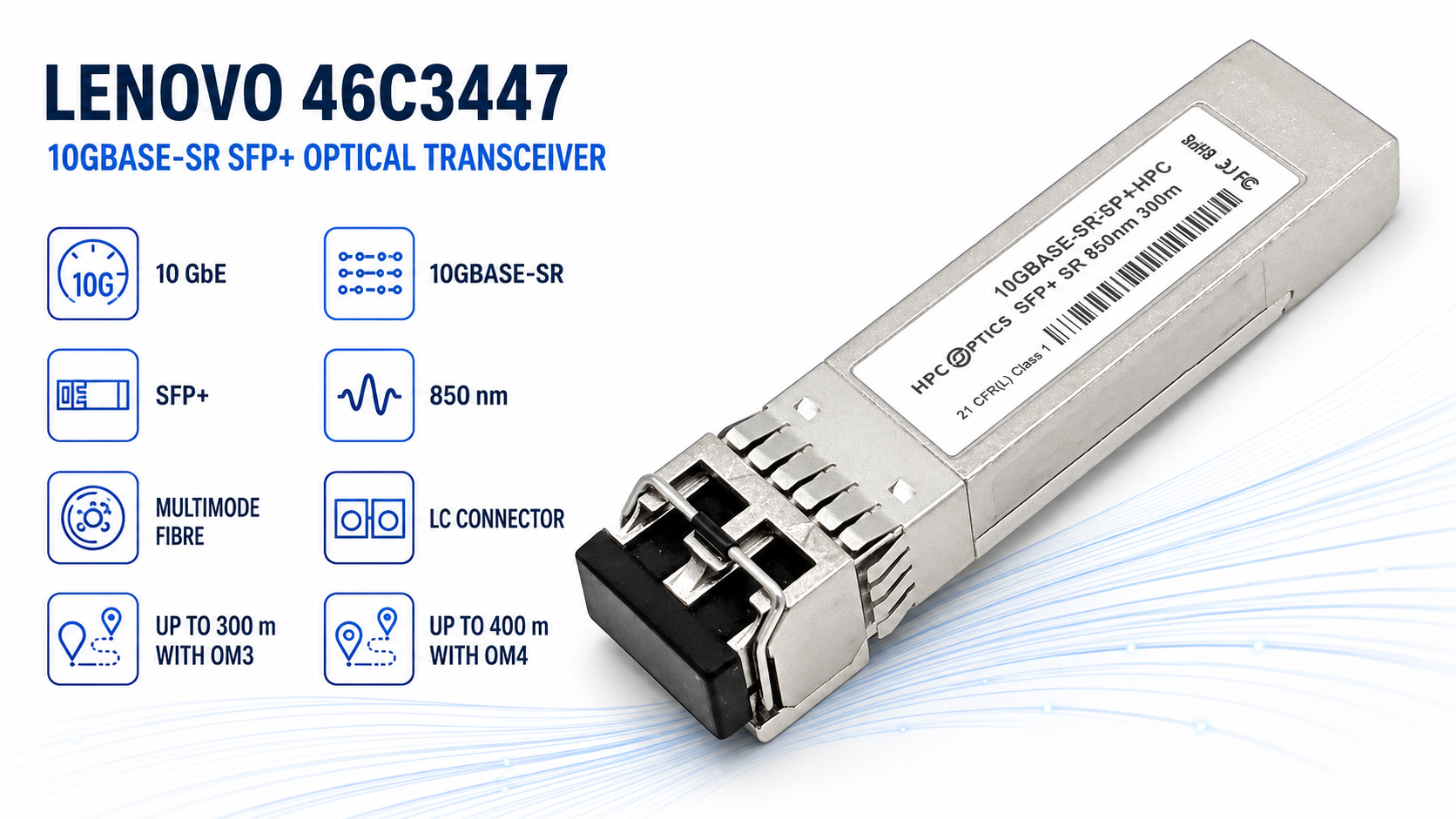

Lenovo 46C3447 10GBASE-SR SFP+ Optical Transceiver
- • Network Speed: 10 GbE optical connectivity using the 10GBASE-SR standard
- • Form Factor: SFP+ optical transceiver for compatible Lenovo network interfaces
- • Optics: 850 nm wavelength for multimode fibre connections
- • Connector: LC optical interface for compatible multimode fibre cabling
- • Fibre Reach: Up to 300 m with OM3 or up to 400 m with OM4 multimode fibre
The Lenovo 46C3447 is a 10GBASE-SR SFP+ optical transceiver designed for compatible Lenovo networking and server platforms. It provides 10 GbE connectivity over multimode fibre using an 850 nm optical wavelength and an LC fibre connection.
For supported Lenovo configurations, the transceiver can provide link distances of up to 300 m over OM3 multimode fibre or up to 400 m over OM4 multimode fibre, making it suitable for short-range high-speed fibre connections within compatible data-centre and network environments.
Key Features
- 10 GbE Connectivity: Designed for 10 Gigabit Ethernet optical network connections.
- 10GBASE-SR: Short-range optical transceiver for compatible multimode fibre installations.
- SFP+ Form Factor: Installs into supported SFP+ network interfaces.
- 850 nm Optics: Uses an 850 nm optical wavelength for multimode fibre connectivity.
- LC Fibre Interface: Uses an LC optical connector with compatible multimode fibre cabling.
- Extended MMF Reach: Supports up to 300 m with OM3 or up to 400 m with OM4 multimode fibre in supported Lenovo configurations.
Technical Specifications
| Component | Specification |
| Brand | Lenovo |
| Part Number | 46C3447 |
| Feature Code | 5053 |
| Product Type | Optical Transceiver |
| Form Factor | SFP+ |
| Ethernet Standard | 10GBASE-SR |
| Network Speed | 10 GbE |
| Optical Wavelength | 850 nm |
| Fibre Type | Multimode fibre (MMF) |
| Connector | LC |
| Maximum Distance with OM3 | Up to 300 m |
| Maximum Distance with OM4 | Up to 400 m |
Compatibility & Important Information
The 46C3447 is intended for compatible Lenovo systems, Ethernet adapters and switches that explicitly list this part number as a supported SFP+ SR transceiver. Compatibility should be matched by exact Lenovo system or adapter configuration.
This is a 10GBASE-SR multimode optical transceiver. Use compatible LC multimode fibre cabling. Lenovo specifies reach of up to 300 m with OM3 and up to 400 m with OM4 multimode fibre in supported configurations.
