Synology DiskStation DS1525neo+ 5-Bay Diskless NAS Server w/ AMD Ryzen V1500B 8-Core CPU & 4GB DDR4 RAM
- • Processor: AMD Ryzen V1500B with 4 cores, 8 threads and 2.2 GHz frequency
- • Memory: 4 GB DDR4 non-ECC SODIMM, expandable up to 32 GB
- • Storage: 5 SATA drive bays plus 2 × M.2 2280 NVMe slots
- • Networking: Dual 2.5GbE with PCIe Gen3 x2 network upgrade slot and optional 10GbE module support
- • Expansion: Supports up to 15 drive bays using 2 × Synology DX525 expansion units
- حالة التوفر :
- متوفر
- النوع :
- DS1525neo+
- الشركة :
- سينولوجي سيتي سنتر.جو
JOD 899.00
وسط المدينة للحاسب الالي

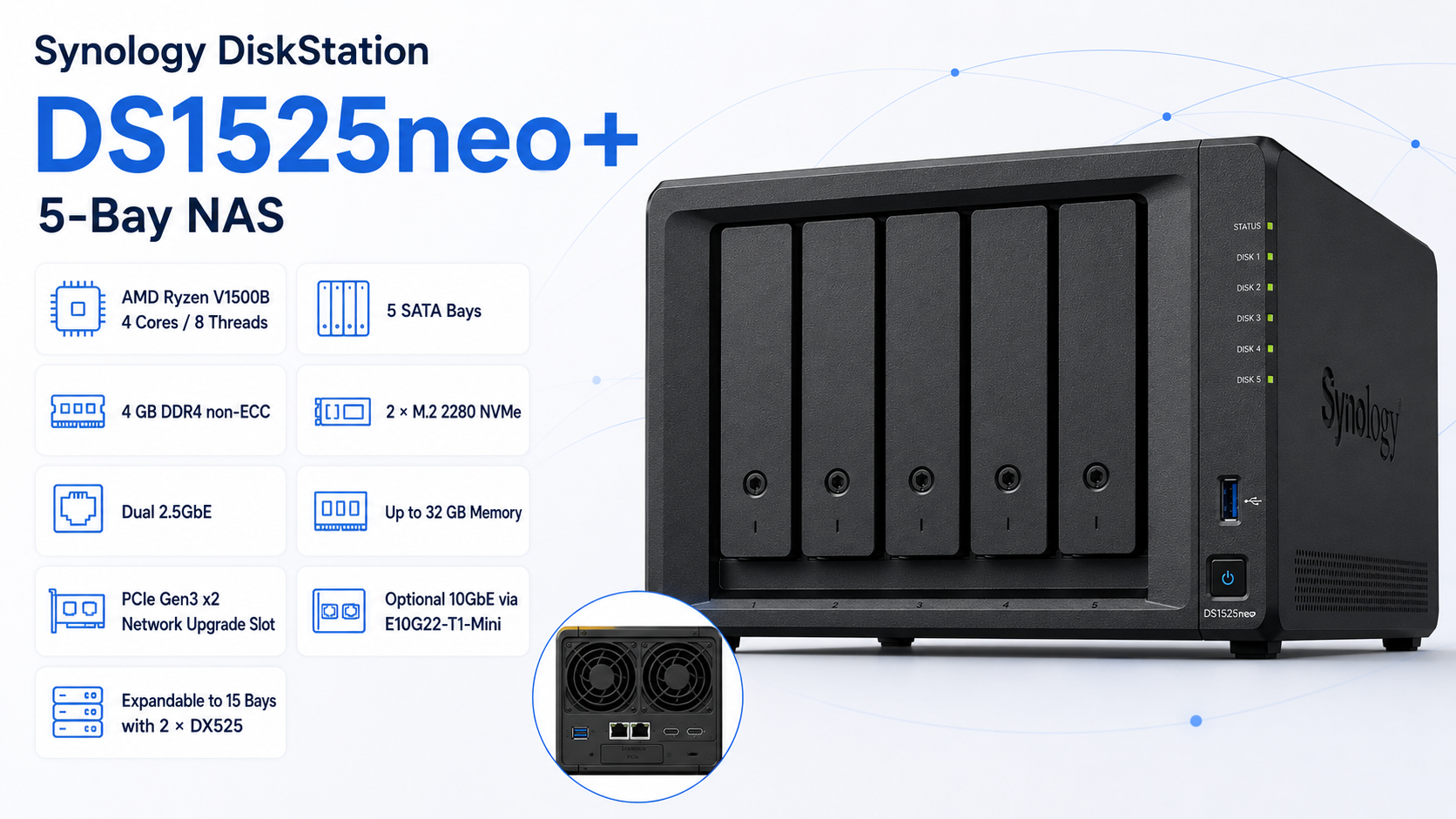

The Synology DiskStation DS1525neo+ is a 5-bay network attached storage system powered by the AMD Ryzen V1500B quad-core processor. It combines five SATA drive bays, two M.2 2280 NVMe slots and dual built-in 2.5GbE networking to provide a flexible platform for centralized storage, backup, file synchronization and private cloud applications.
The DS1525neo+ comes with 4 GB DDR4 non-ECC SODIMM memory and supports expansion up to 32 GB. Storage capacity can grow from five to fifteen drive bays using up to two Synology DX525 expansion units, while a dedicated PCIe Gen3 x2 network upgrade slot provides an additional path for higher-speed networking.
Key Features
- 5-Bay NAS: Supports five compatible 3.5-inch SATA HDDs or 2.5-inch SATA SSDs.
- AMD Ryzen V1500B: 4-core, 8-thread 64-bit processor operating at 2.2 GHz.
- 4 GB DDR4 Memory: Pre-installed 4 GB DDR4 non-ECC SODIMM with support for expansion up to 32 GB.
- Dual 2.5GbE: Two built-in 2.5GbE RJ-45 network ports provide fast wired connectivity.
- Dual M.2 NVMe Slots: Two M.2 2280 slots support compatible NVMe SSD caching and SSD storage pools.
- Expandable Platform: Supports up to 15 drive bays with two DX525 expansion units and includes a PCIe Gen3 x2 network upgrade slot.
Technical Specifications
| Component | Specification |
| Brand | Synology |
| Model | DiskStation DS1525neo+ |
| Product Type | 5-Bay Network Attached Storage |
| Processor | AMD Ryzen V1500B |
| CPU Cores / Threads | 4 Cores / 8 Threads |
| CPU Architecture | 64-bit |
| CPU Frequency | 2.2 GHz |
| System Memory | 4 GB DDR4 non-ECC SODIMM |
| Pre-Installed Memory | 4 GB × 1 |
| Memory Slots | 2 |
| Maximum Memory | 32 GB (16 GB × 2) |
| SATA Drive Bays | 5 × 3.5-inch SATA HDD or 2.5-inch SATA SSD |
| M.2 Slots | 2 × M.2 2280 NVMe SSD |
| M.2 Functions | SSD Cache and SSD Storage Pool with Compatible SSDs |
| Maximum Drive Bays | 15 with 2 × Synology DX525 |
| Raw Capacity - 5 Bays | Up to 120 TB Using 24 TB Drives |
| Raw Capacity with Expansion | Up to 360 TB Using 24 TB Drives |
| Network Ports | 2 × 2.5GbE RJ-45 |
| USB Ports | 2 × USB 3.2 Gen 1 |
| Expansion Ports | 2 × USB Type-C Expansion Ports |
| PCIe Expansion | 1 × PCIe Gen3 x2 Network Upgrade Slot |
| 10GbE Upgrade | Synology E10G22-T1-Mini Supported, Sold Separately |
| Supported RAID Types | Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Maximum Single Volume Size | 108 TB; Up to 200 TB with 32 GB Memory |
| Operating System | Synology DiskStation Manager (DSM) |
| System Fans | 2 × 92 mm |
| Fan Modes | Full-Speed, Cool, Quiet |
| Noise Level | 22.60 dB(A) |
| Power Adapter | 120 W |
| Dimensions | 166 × 230 × 223 mm |
| Weight | 2.67 kg |
| Operating Temperature | 0°C to 40°C |
| Hardware Warranty | 3 Years |
Compatibility & Important Information
- The DS1525neo+ is supplied with one 4 GB DDR4 non-ECC SODIMM module and supports memory expansion up to 32 GB.
- The DS1525neo+ supports compatible Synology ECC memory upgrade options, but ECC and non-ECC memory modules must not be mixed.
- For multi-module memory configurations, Synology requires installed memory modules to be identical and share the same model number.
- Compatible storage includes supported 3.5-inch SATA HDDs, 2.5-inch SATA SSDs and M.2 2280 NVMe SSDs. Storage drives are sold separately.
- Synology recommends checking the official compatibility list before purchasing HDDs or SSDs.
- M.2 SSD slots do not support hot swapping. Compatible NVMe SSDs can be used for SSD cache or supported M.2 storage pools.
- Expanding beyond five drive bays requires Synology DX525 expansion units. Up to two DX525 units are supported for a maximum of 15 drive bays.
- The optional Synology E10G22-T1-Mini network module can add a 10GbE RJ-45 connection and is sold separately.
Package Contents
- Main Unit × 1
- Accessory Pack × 1
- AC Power Adapter × 1
- AC Power Cord × 1
- RJ-45 LAN Cable × 2
