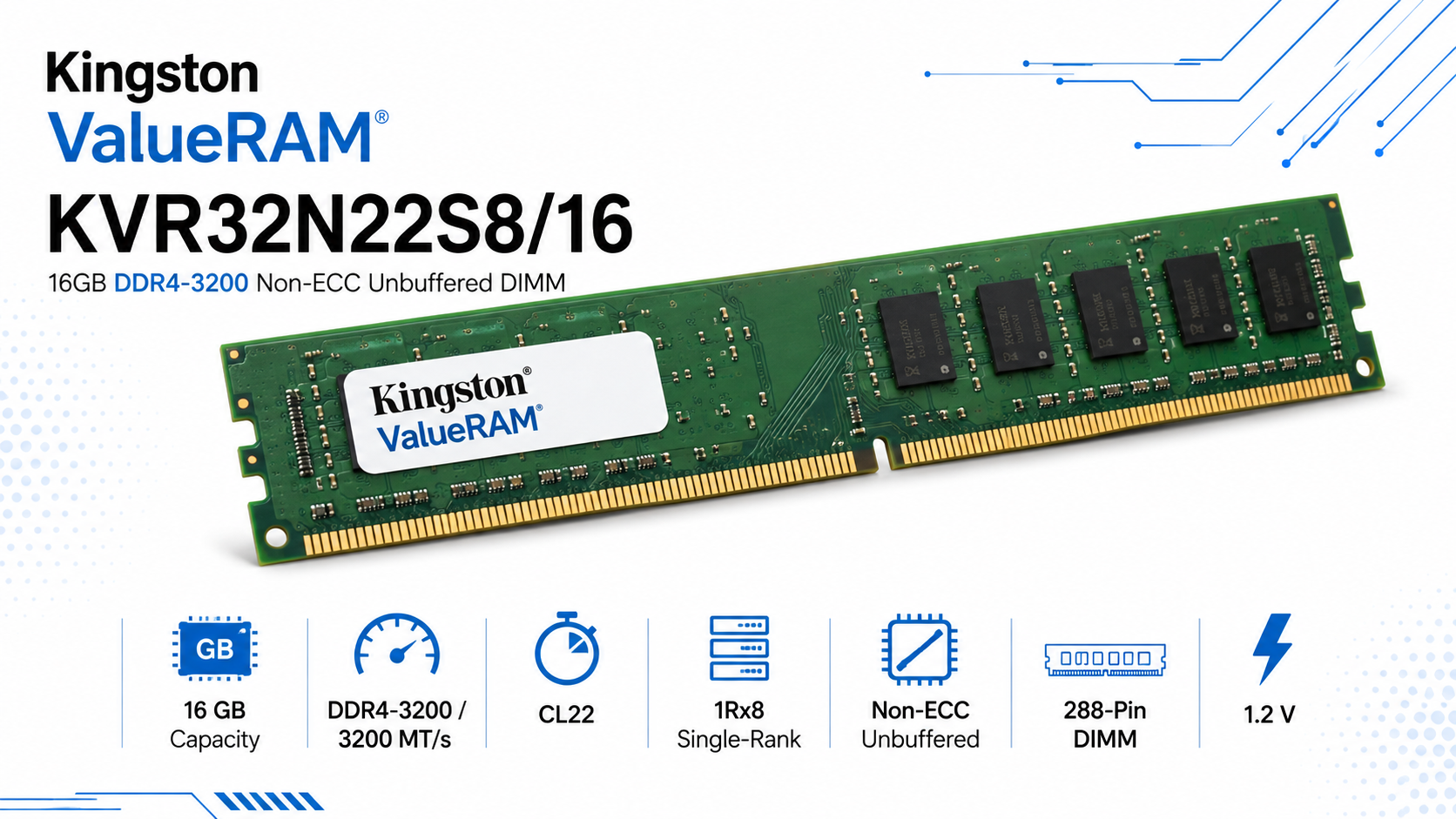

Kingston ValueRAM KVR32N22S8/16 16GB DDR4-3200 CL22 288-Pin DIMM

Kingston ValueRAM KVR32N22S8/16 is a 16 GB DDR4-3200 SDRAM memory module with a 1Rx8 single-rank configuration and 288-pin DIMM form factor. It is a non-ECC, unbuffered module designed with a 2G x 64-bit organization for compatible desktop systems.

The module is based on eight 2G x 8-bit FBGA components and its SPD is programmed to JEDEC DDR4-3200 timing of 22-22-22 at 1.2 V. Gold contact fingers and Kingston ValueRAM specifications provide a standard DDR4 memory option for compatible systems.

Key Features

• 16 GB Capacity: 2G x 64-bit DDR4 SDRAM memory organization.
• DDR4-3200: JEDEC-programmed DDR4 memory operating at 3200 MT/s.
• CL22 Timing: Programmed to 22-22-22 timing at 1.2 V.
• Single-Rank 1Rx8: Built with eight 2G x 8-bit FBGA components.
• Non-ECC Unbuffered: Standard 288-pin DIMM configuration for compatible systems.
• Compliance: RoHS compliant and halogen-free.

Technical Specifications

Compatibility & Important Information

• This module uses a 288-pin DDR4 DIMM form factor and is non-ECC and unbuffered.
• The module is configured as 1Rx8 single-rank with 16 Gbit DRAM density.
• Its SPD is programmed to JEDEC DDR4-3200 timing of 22-22-22 at 1.2 V.
• Confirm that the target system supports DDR4 288-pin non-ECC unbuffered DIMMs and the required memory capacity before purchase.
