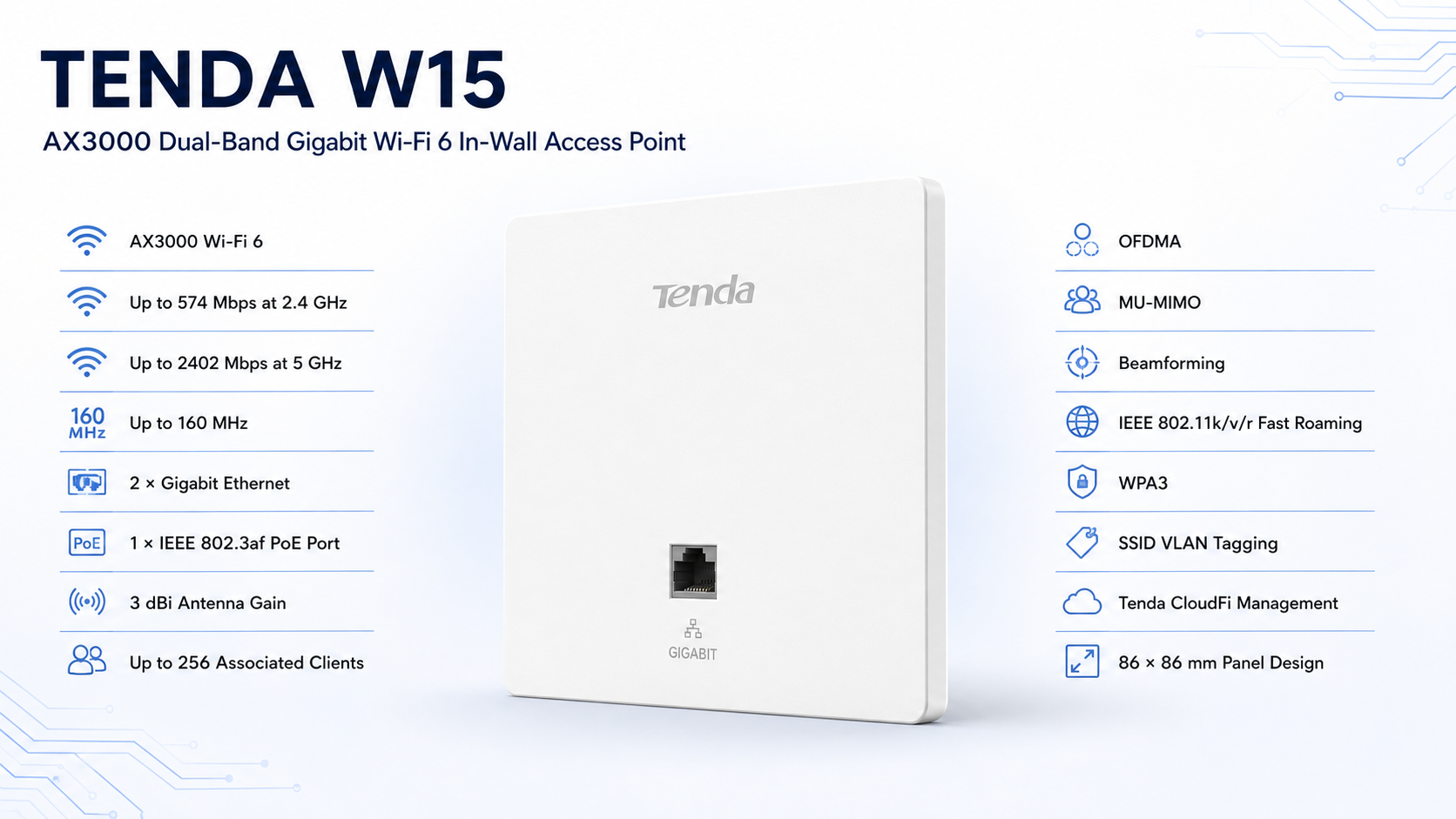

Tenda W15 AX3000 Dual-Band Gigabit Wi-Fi 6 In-Wall Access Point
- • AX3000 Wi-Fi 6: Up to 574 Mbps on 2.4 GHz + 2402 Mbps on 5 GHz
- • 160 MHz: Wide-channel support for compatible high-speed 5 GHz Wi-Fi 6 connections
- • Dual Gigabit Ethernet: 2 x Gigabit ports including 1 x IEEE 802.3af PoE interface
- • In-Wall Design: Standard 86-type panel with approximately 10 mm wall protrusion
- • Business Features: OFDMA, MU-MIMO, Beamforming, 802.11k/v/r roaming, WPA3 and Tenda CloudFi management
The Tenda W15 is an AX3000 dual-band Wi-Fi 6 in-wall access point designed for integrated residential, hospitality and business wireless deployments. It delivers up to 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz, with support for 160 MHz channel bandwidth on compatible wireless connections.
Its standard 86-type in-wall design combines two Gigabit Ethernet interfaces, IEEE 802.3af PoE power, OFDMA, MU-MIMO, Beamforming and IEEE 802.11k/v/r fast roaming. Local web, Tenda CloudFi cloud/app and compatible Tenda gateway management provide flexible administration for multi-access-point networks.
Key Features
- AX3000 Wi-Fi 6: Supports up to 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz.
- 160 MHz Bandwidth: Supports channel widths up to 160 MHz for compatible high-speed Wi-Fi 6 connections.
- Dual Gigabit Ethernet: Provides two 10/100/1000 Mbps Ethernet interfaces, including one PoE-powered port.
- IEEE 802.3af PoE: Network data and power can be delivered to the access point through a compatible PoE network connection.
- Fast Roaming: IEEE 802.11k/v/r supports smoother roaming for compatible clients in properly configured multi-AP networks.
- Cloud & Local Management: Supports local web, Tenda CloudFi cloud/app and compatible Tenda gateway management.
Technical Specifications
| Component | Specification |
| Brand | Tenda |
| Model | W15 |
| Product Type | AX3000 Dual-Band Gigabit Wi-Fi 6 In-Wall Access Point |
| Wireless Standards | IEEE 802.11b/g/n/a/ac/ax |
| Wireless Bands | 2.4 GHz / 5 GHz |
| Wi-Fi Class | AX3000 |
| 2.4 GHz Wireless Rate | Up to 574 Mbps |
| 5 GHz Wireless Rate | Up to 2402 Mbps |
| Channel Bandwidth | 20 / 40 / 80 / 160 MHz |
| Antenna Gain | 3 dBi |
| Ethernet Interfaces | 2 x 10/100/1000 Mbps Gigabit Ethernet |
| PoE Interface | 1 x Gigabit Ethernet PoE Port |
| Power Supply | IEEE 802.3af PoE |
| Maximum Power Consumption | 8.5 W |
| Maximum Associated Clients | 256 |
| Operating Modes | AP / Client+AP |
| Maximum SSIDs | 2.4 GHz: 8 / 5 GHz: 4 |
| Wireless Technologies | OFDMA / MU-MIMO / Beamforming |
| Fast Roaming | IEEE 802.11k/v/r |
| Wireless Security | WEP / WPA-PSK / WPA2-PSK / WPA / WPA2 / WPA3-SAE |
| SSID VLAN Tagging | Supported |
| Wireless Controls | Access Control, AP Isolation, Guest Network, RSSI Threshold, Client Control, Weak Signal Terminal Elimination, 5 GHz Prioritization |
| Management | Local Web / Tenda CloudFi Cloud / Tenda CloudFi App / Compatible Tenda Gateway |
| Button | 1 x Reset |
| LED Indicator | 1 x SYS |
| Panel Dimensions | 86 x 86 x 32 mm |
| Wall Protrusion | Approximately 10 mm |
| Installation Format | Standard 86-Type In-Wall Panel |
| Operating Temperature | -10°C to 45°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
| Storage Temperature | -30°C to 70°C |
Compatibility & Important Information
- This listing applies specifically to Tenda W15 and must not be mixed with W15-Pro or W15E specifications.
- The W15 uses a standard 86-type in-wall panel format. The intended wall installation location should have a suitable network cable and compatible mounting arrangement.
- The PoE interface requires a compatible IEEE 802.3af PoE power source.
- The second Gigabit Ethernet interface provides wired network connectivity but is not identified by Tenda as the PoE input.
- The 160 MHz feature requires compatible wireless client devices and an appropriate 5 GHz configuration.
- The stated wireless speeds are theoretical values and actual throughput depends on client capability, interference, deployment conditions and network configuration.
- IEEE 802.11k/v/r fast roaming requires compatible wireless clients and a properly configured multi-access-point network.
- Tenda offers the W15 with replaceable cover color options, including Carbon Black, Classic White, Champagne Gold, Deep Space Gray and Titanium Space Silver; the specific supplied color should follow the physical product variant.
