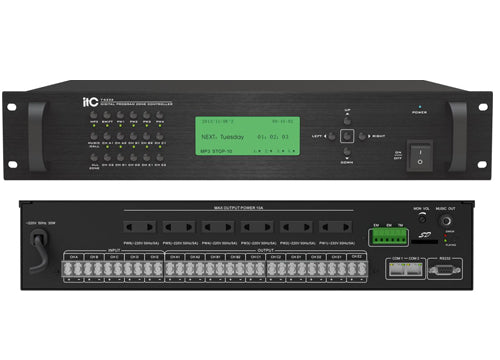

ITC T-6232TM Intelligent Control Host
- حالة التوفر :
- متوفر
- النوع :
- الشركة :
- اي تي سي للصوت - ITC Audio
Features:
* Built-in weekly timer, monitor, 10 zone speaker selector, 6 channel power sequencer and Mp3 player.
* Expandable from 10 zones to 160 zones.
* Single Scheduled background music + 160 zone paging + multi voice alarm system.
* Single scheduled background music from T-6232 weekly timer's built-in MP3 player.
* 3 modes of voice alarm: all zones, separate zone and neighboring zones voice alarm.
* Max support connecting 16 pcs zone selector T-6212(A).
* 5 amp inputs, 10 zones speaker output.
* Timely broadcast is up to 99 program sources.
* Broadcast modes: random, repeat and circle.
* 8 regular programs and 1 spare program for emergency/particular circumstance.
* Functional swift key for internal MP3 player priority manual broadcast.
* Zone 1-10 selector, all zone selector, music/paging switch, MP3 swift button, swift program button, power control channel 1-4 buttons, up/down/left/right/ok button.
* External power control, external monitor, speaker fault detection and amplifier fault changeover all are optional could be added.
* Power handling 500W over each zone.
* System communication is through CAT 5 cable.
* The system communication distance is up to 1km.
* Support memory function in case of power off.
Optional:
* Panel with/without handhold.
Specifications:
Model | T-6232 |
Power Output | ~110V-230V 50/60Hz |
| 4 Program Power+2 AUX power |
| Total Power ≤5KW |
Function Button | Light touch press buttons include |
| 4 power switch buttons, 1 MP3 control button, |
| 1 backup program switch, |
| 10 zones speaker selector button, all zones |
| button, 1 music or paging switch button. |
| 4 menu buttons for switch, 1 ok button |
Indication Method | 192x64 LCD display, English |
Audio Output | 1KΩ 0.775V Unbalance (6.35 RC) |
Voltage Input and Output of Alarm | 0V(Short Circuit) Industrial Standard |
Voltage Output for Power Control | Integrated Terminal Block |
| 0V(Short Circuit) Industrial Standard |
Amplifier Input and Output | Integrated Terminal Block |
| CHA CHB CHC CHD CHE CHA1-A2 |
| CHB1-B2 CHC1-C2 CHD1-D2 CHE1-E2 |
Monitor Power of Speaker | 0.5W |
Time Mode | 24 hours(hour-minutes-seconds) weekly |
Program Quantity | Total 9pcs(8 normal programs, 1EMC) |
Program Steps | Total 512 Steps, 1 day≤200 Steps |
Communication Protocols | RS422 |
Communication Port | RJ45 |
Communication Speed | 4800bps |
Zone Control | 160 zone(16pcs T-6212(A) 10 zone speaker selector) |
MP3 Frequency Response | 20Hz~20KHz/ ±1dB |
Mp3 Store Format | Compatible FAT16, FAT32 |
Power Supply | ~110V-230V 50/60Hz |
Dimensions | 484 x 350 x 88mm |
Weight | 6.06Kg |
