IMOU VDP7 PoE 5MP Video Doorphone Kit with 7-inch Touch Screen
- • 5 MP Door Station: 2880 x 1620 video with 149° diagonal field of view and up to 15 m night vision
- • 7-inch Touch Screen: 1024 x 600 indoor monitor for visitor viewing, communication and access control
- • PoE: IEEE 802.3af/at connectivity for power and network through the PoE connection
- • Access Control: Card, password, indoor-unit and app unlocking with two lock-control channels
- • Smart Security: Human, Vehicle and Loitering Detection, two-way audio and MicroSD support up to 512 GB
- حالة التوفر :
- متوفر
- النوع :
- VO1-5M0A/VH1-7A0A
- الشركة :
- إيمو سيتي سنتر.جو
JOD 194.00
وسط المدينة للحاسب الالي

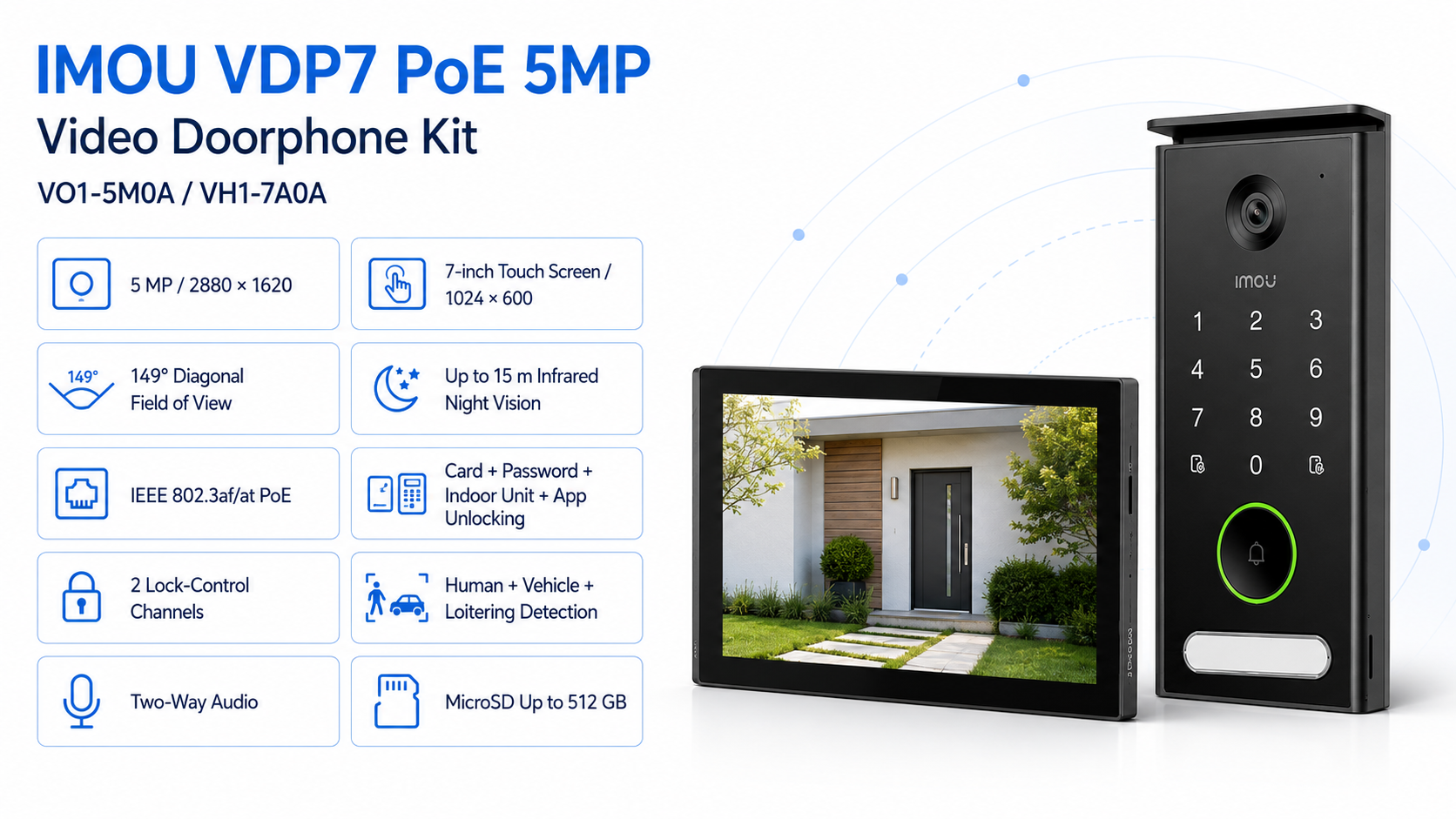

The IMOU VDP7 PoE is a smart video doorphone system combining a 5 MP outdoor door station with a 7-inch indoor touchscreen. The door station captures video at up to 2880 x 1620 resolution with a wide 149° diagonal field of view and infrared night vision up to 15 m for clear entrance monitoring during day and night.
PoE connectivity carries power and network data through the Ethernet connection for a streamlined installation. Multiple unlocking methods, two-way audio, Human, Vehicle and Loitering Detection, two independent lock-control channels and MicroSD storage up to 512 GB provide practical access control and visitor management for compatible installations.
Key Features
- 5 MP Door Station: Captures video at up to 2880 x 1620 resolution with a 2.3 mm lens and 149° diagonal field of view.
- 7-inch Touch Screen: Indoor monitor provides a 1024 x 600 touchscreen for visitor viewing, communication and access control.
- PoE Connectivity: IEEE 802.3af/at support carries power and network connectivity through the PoE connection.
- Multiple Unlocking Methods: Supports card, password, indoor-unit and remote app unlocking.
- Smart Entrance Detection: Human, Vehicle and Loitering Detection help provide more relevant entrance alerts.
- Two-Way Audio: Enables live voice communication with visitors through the video doorphone system.
Technical Specifications
| Component | Specification |
| Brand | IMOU |
| Model | VDP7 PoE |
| Door Station Code | VO1-5M0A |
| Indoor Monitor Code | VH1-7A0A |
| Product Type | PoE Video Doorphone Kit |
| Image Sensor | 1/3-inch Progressive CMOS |
| Maximum Resolution | 5 MP (2880 x 1620) |
| Focal Length | 2.3 mm |
| Field of View | 125° Horizontal, 71° Vertical, 149° Diagonal |
| Night Vision Distance | Up to 15 m / 49 ft |
| Indoor Screen | 7-inch Touch Screen |
| Screen Resolution | 1024 x 600 |
| PoE Standard | IEEE 802.3af / 802.3at |
| Power Supply | 48 V DC IEEE 802.3af/at |
| Unlocking Methods | Card, Password, Indoor Unit, App |
| Lock Control | 2 Channels |
| Exit Button | 2 Channels |
| Doorbell Button | 1 |
| Tamper Alarm | Supported |
| Video Compression | H.265 / H.264 |
| Frame Rate | Up to 15 fps |
| Audio | Two-Way Audio |
| Human Detection | Supported |
| Vehicle Detection | Supported |
| Loitering Detection | Supported |
| Do Not Disturb Mode | Supported |
| Privacy Masking | Custom Privacy Masking Area |
| Local Storage | MicroSD Card up to 512 GB |
| Mobile App | IMOU App for iOS and Android |
| VTO Operating Temperature | -20°C to +50°C |
| VTH Operating Temperature | -10°C to +45°C |
| Door Station Dimensions | 181 x 83.5 x 29 mm |
| Indoor Monitor Dimensions | 184 x 113 x 23.5 mm |
| Door Station Weight | 474 g |
| Indoor Monitor Weight | 359 g |
| Certification | CE |
Compatibility & Important Information
- The VDP7 PoE uses IEEE 802.3af/at PoE for network connectivity and power delivery.
- The system provides two lock-control channels and two exit-button channels for compatible entrance-control installations.
- Local recording requires a compatible MicroSD card with capacity up to 512 GB.
- Remote live viewing, two-way communication and app-based unlocking are supported through the IMOU App on compatible iOS and Android devices.
- The outdoor door station and indoor monitor have different specified operating temperature ranges: -20°C to +50°C for the VTO and -10°C to +45°C for the VTH.
Package Contents
- Door Station (VTO) x 1
- Wall Mounting Bracket for VTO, Pre-Installed x 1
- Drilling Template for Door Station x 1
- Indoor Monitor (VTH) x 1
- Wall Mounting Bracket for Monitor x 1
- Drilling Template for Monitor x 1
- Female Wire Harness x 1
- Screw Pack x 2
- Wires and Connectors Pack x 1
- L-Shaped Wrench x 1
- Name Tag x 2
- Card x 3
- Quick Start Card x 1
- Regulatory Information x 1
