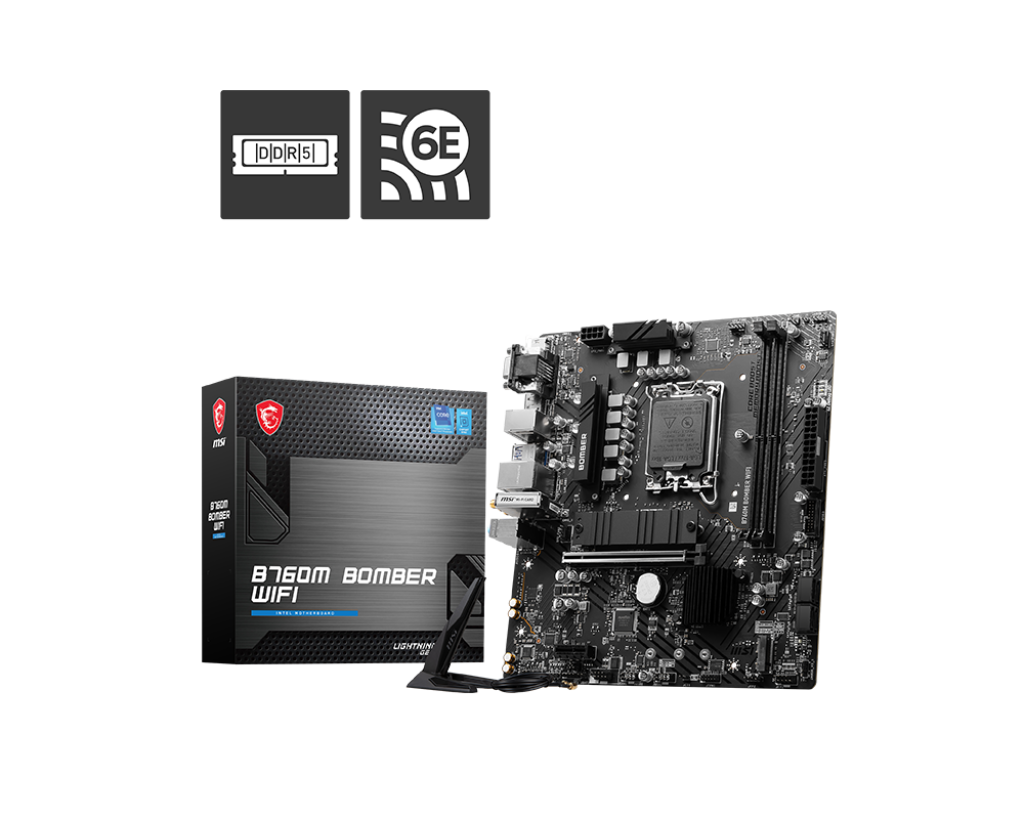

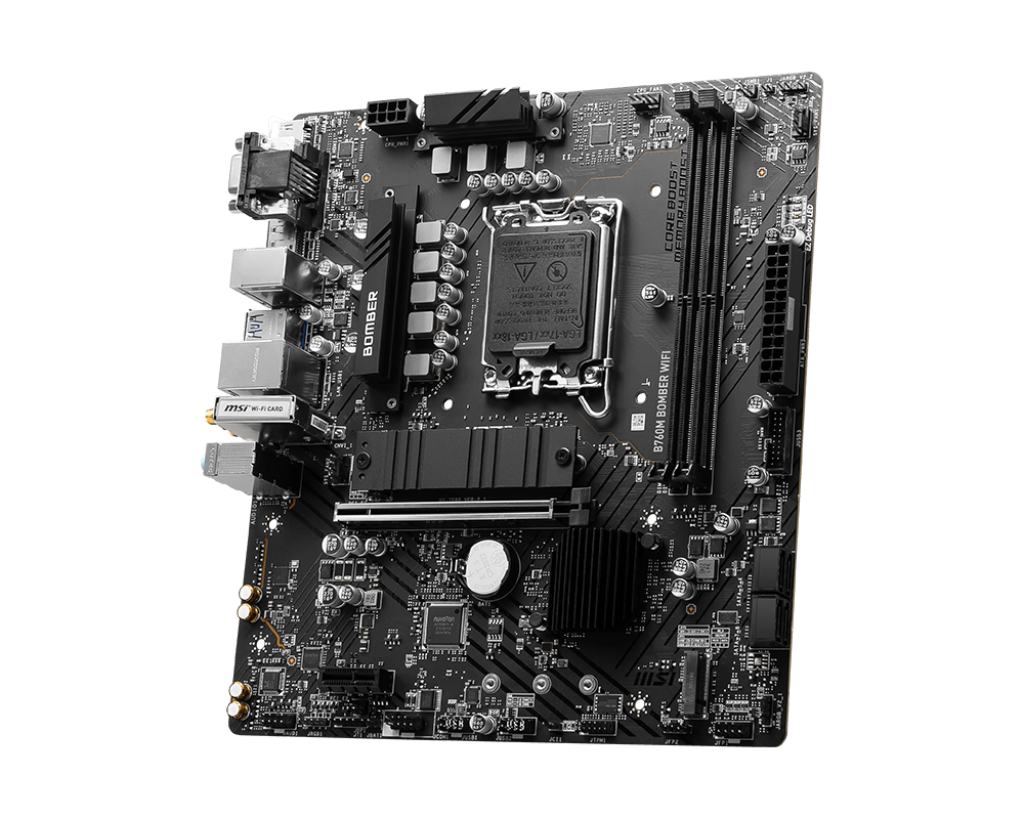

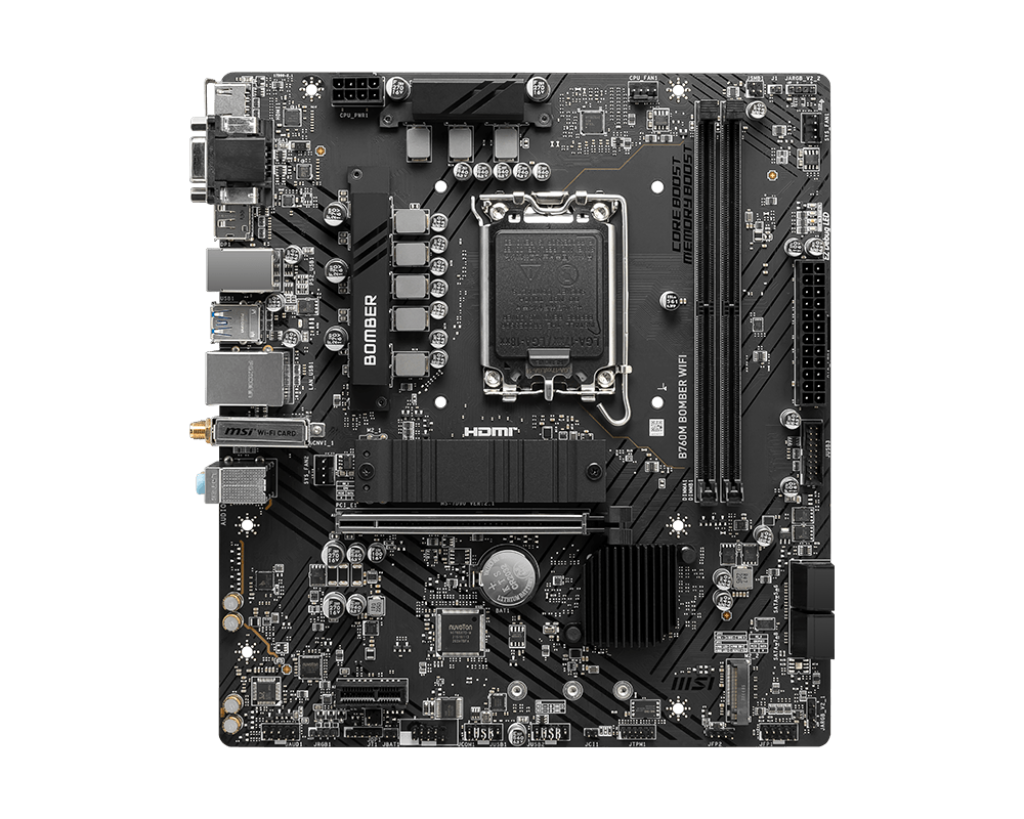

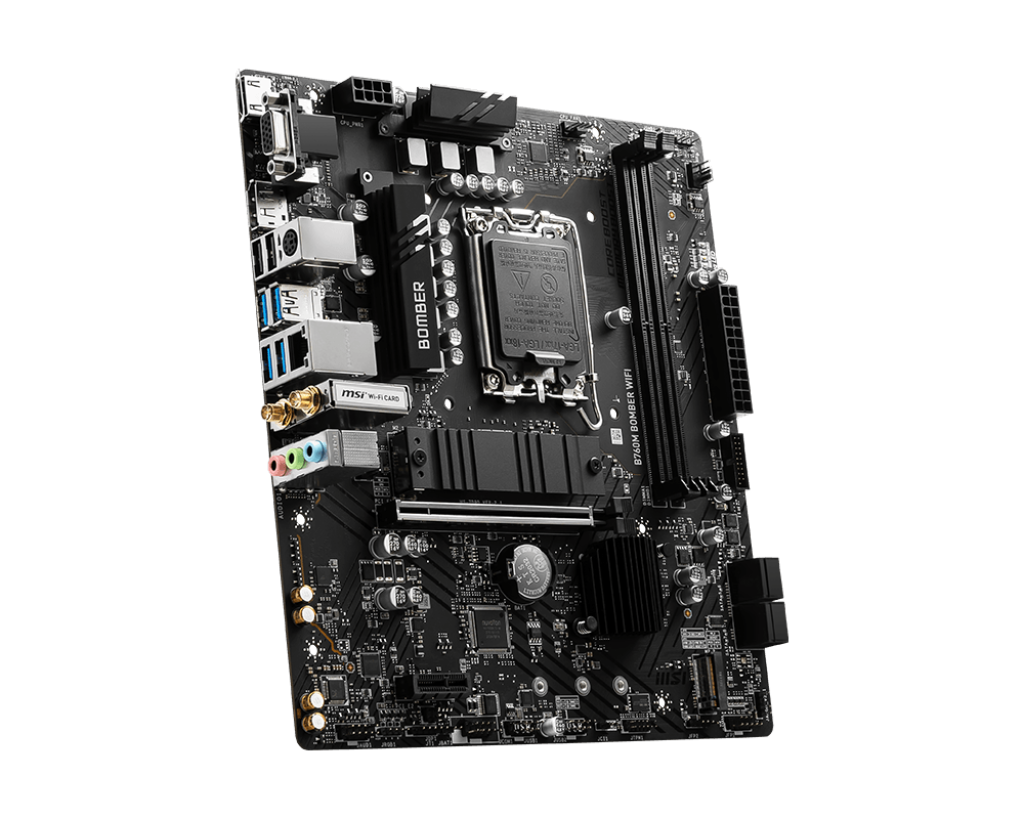

MSI B760M BOMBER WIFI Motherboard INTEL B760 DDR5 LGA 1700 2xM.2 mATX VGA+HDMI

Availability:
In Stock
Product Code:
45315179380978
Brand:
MSI techstationqa.com
QAR 549.00
Tech Station
Update Last Updated: 2025-06-30 12:35:45
Buy Now
Compare this Product
CHIPSET INTEL B760

CPU Supports 12th/13th/14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
  LGA 1700

MEMORY 2x DDR5, Maximum Memory Capacity 128GB
  Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
  Max. overclocking frequency:
  • 1DPC 1R Max speed up to 6400+ MHz
  • 1DPC 2R Max speed up to 5600+ MHz

  Supports Intel® XMP 3.0 OC
  Supports Dual-Controller Dual-Channel mode
  Supports non-ECC, un-buffered memory

ONBOARD GRAPHICS 1x HDMI™
  Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
  1x DisplayPort
  Support DP 1.4, maximum resolution of 4K 60Hz*
  1x D-Sub
  Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT 1x PCI-E x16 slot (Qty)
  1x PCI-E x1 slot (Qty)
  PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
  PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)

STORAGE 2x M.2 (Qty)
  M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  4x SATA 6G (Qty)
  * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

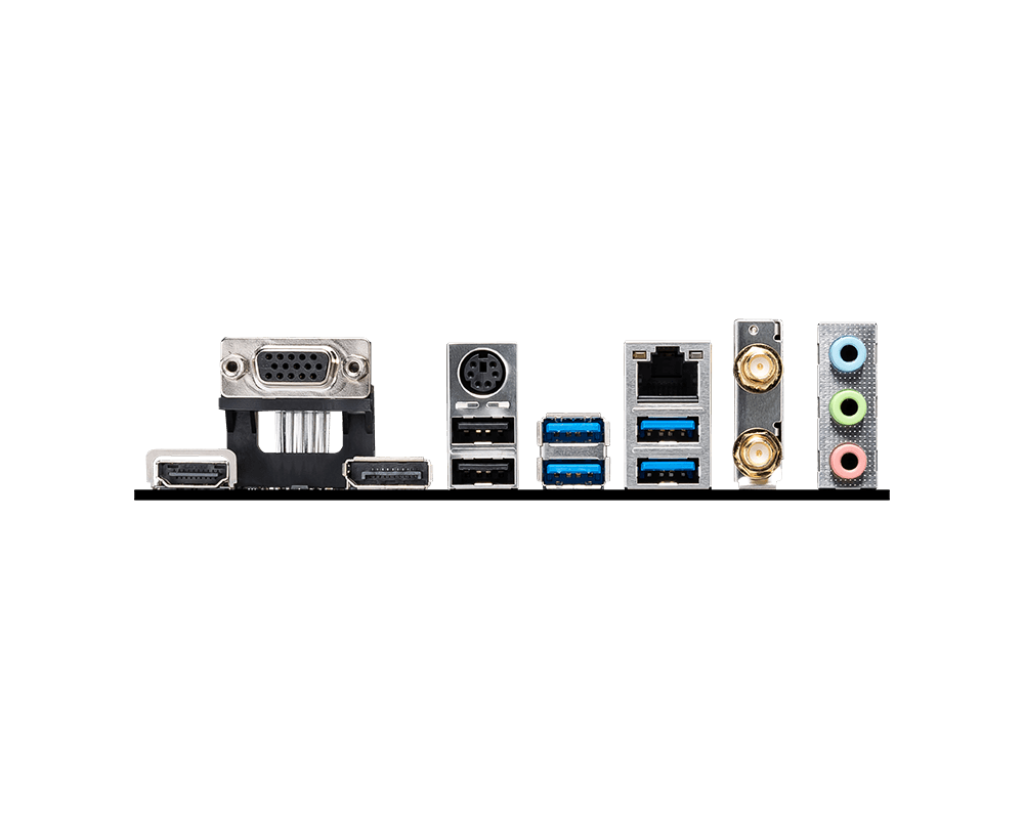

USB 2x USB 2.0 (Rear)
  4x USB 2.0 (Front)
  4x USB 3.2 Gen1 Type A (Rear)
  2x USB 3.2 Gen1 Type A (Front)

LAN Realtek® RTL8125B 2.5Gbps LAN

WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax

  Supports Bluetooth® 5.3, FIPS, FISMA

  * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
  ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO Realtek® ALC897 Codec
  7.1-Channel High Definition Audio

INTERNAL IO 1x Power Connector(ATX_PWR)
  1x Power Connector(CPU_PWR)
  1x CPU Fan
  2x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Com Port (JCOM)
  2x Addressable V2 RGB LED connector (JARGB_V2)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  2x USB 3.2 Gen1 Type A ports

LED FEATURE 4x EZ Debug LED

OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB INFO mATX
  220mmx243.84mm
