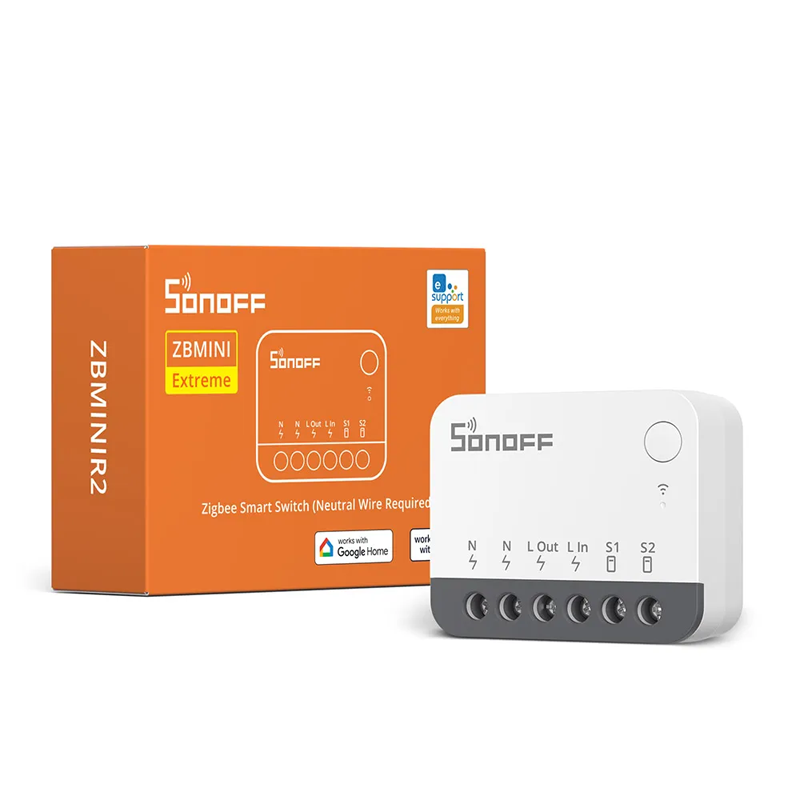

The Sonoff ZBMINIR2 is an ultra-compact Zigbee 3.0 smart switch designed to retrofit traditional wall switches, enabling smart control over connected devices without altering existing fixtures. Its small form factor allows it to fit behind most standard wall switches, making it ideal for seamless smart home integrations.
???? Key Specifications
Model: ZBMINIR2
Input Voltage: 100–240V AC, 50/60Hz
Maximum Load: 10A / 2400W
Dimensions: 39.5 × 33 × 16.8 mm
Weight: 26.7 grams
Wireless Protocol: Zigbee 3.0
External Switch Support: Compatible with various switch types, including SPDT, momentary, and rocker switches
Neutral Wire Requirement: Yes
Material: Flame-retardant PC V0
Operating Temperature: -10°C to +40°C
Operating Humidity: 5%–95% RH, non-condensing
⚙️ Features
Compact Design: Fits behind most wall switches, including EU-type/86-type/120-type mounting boxes
Zigbee Router Functionality: Acts as a Zigbee router, extending network coverage and supporting up to 64 sub-devices
Turbo Mode: Enhances signal strength for optimal performance
Detach Relay Mode: Allows the physical switch to control smart devices without cutting power, ideal for smart bulbs
Three Switch Trigger Modes: Pulse Mode, Edge Mode, and Following Mode for versatile switch behavior
Delay Power-On: Prevents damage from high currents when power is restored after an outage
Voice Control: Compatible with Amazon Alexa and Google Assistant
App Control: Manage devices via the eWeLink app
Third-Party Integration: Supports platforms like Home Assistant and Zigbee2MQTT
????️ Installation & Setup
Power Off: Ensure the power supply is turned off before installation
Wiring: Connect the live, load, and neutral wires to the corresponding terminals on the ZBMINIR2
External Switch: Connect your existing wall switch to the S1 and S2 terminals
Mounting: Place the ZBMINIR2 behind the wall switch inside the mounting box
Power On: Restore power and pair the device with your Zigbee hub via the eWeLink app or compatible platform
