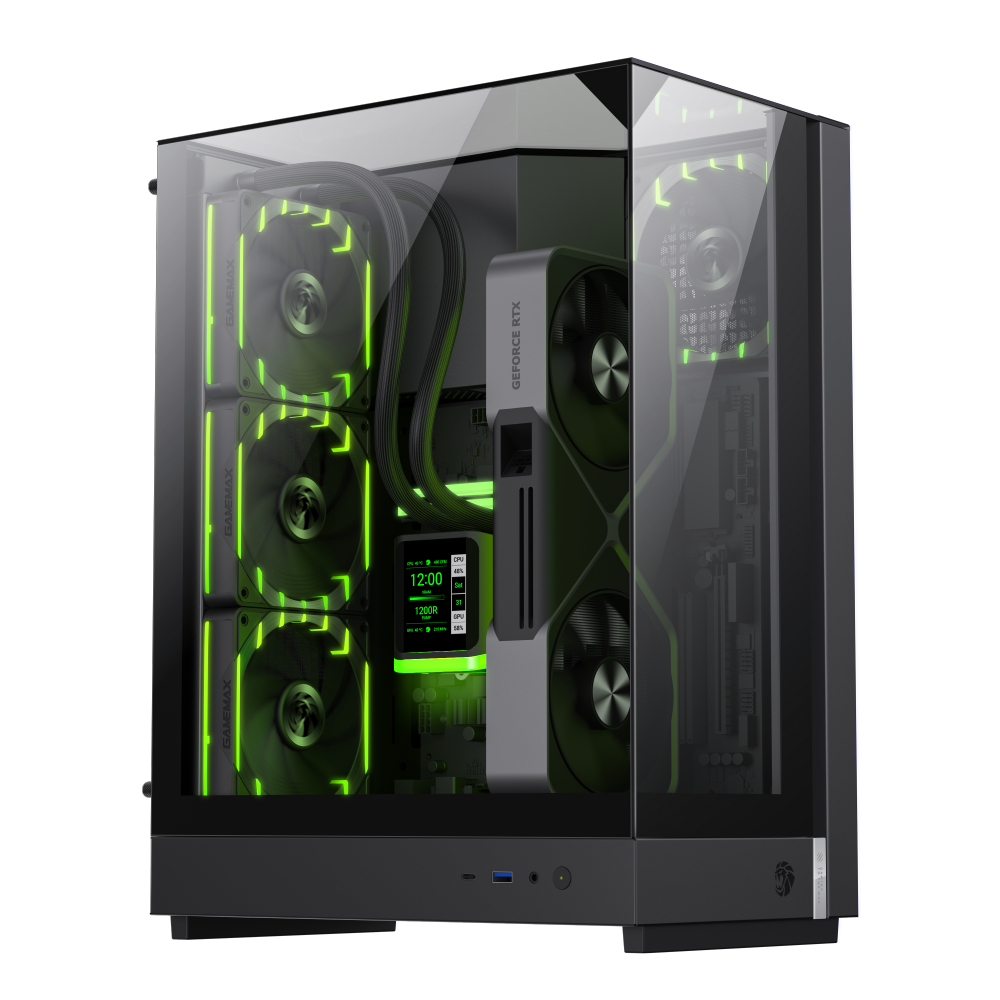

GAMEMAX T20 BK M-ATX GAMING CASE

Form Factor:

M-ATX

Chassis:

SPCC:1.0mm

PSU Form Factor

SFX-L

M/B Form Factor:

MATX, ITX

M-ATX Support BTF

Front Panel:

Tempered Glass

Top Panel:

Tempered Glass

Side Panel:

Left:

Tempered Glass

Right:

Metal cover, GAMEMAX Proprietary Mesh

External Drive Bay(s):

5.25”(ODD):

*0

3.5”:

*0

Internal Drive Bay(s):

3.5" (HDD):

*1or2

2.5" (SSD):

*2or0

I/O:

Buttons:

*1

USB 2.0 Port(s):

*0

USB 3.0 Port(s):

*1

Type C Port(s):

*1(GEN2)

Audio Support:

*1(Combo Audio)

Card Reader (Support):

*0

P-Lock：

*0

RGB Controller：

*0

Controller Max Fans:

*0

RGB Controller max. LED strips：

*0

Remote (IR or RF)：

*0

Cooling Fan Support:

Front:

*0

Top:

*0

Rear:

3x120mm(Fan optional)

Bottom:

1x120mm(Tornado T12-R)

M/B Cover：

1x120mm(Tornado T12-R)

PSU Cover：

*0

Water Cooling Support

(Radiator Size):

Front:

/

Top:

/

Rear:

120/240/360mm

M/B Cover：

*0

Dust Cover:

Right side magnetic dust screen

Slots:

*5

Carton & Logo:

GAMEMAX

Dimensions:

Chassis:

(L)340*(W)215*(H)448mm

Full Case (Inc Fascia):

(L)340*(W)215*(H)462mm

Carton:

(L)530*(W)285*(H)415mm

Net Weight(kg):

5.7

Gross Weight(kg):

7.0

VGA Support:

Up to 382mm, Supports vertical mounting

CPU Cooler Height:

Up to 160mm

SPS Length:

Up to 140mm

Cable Management Depth:

27mm
