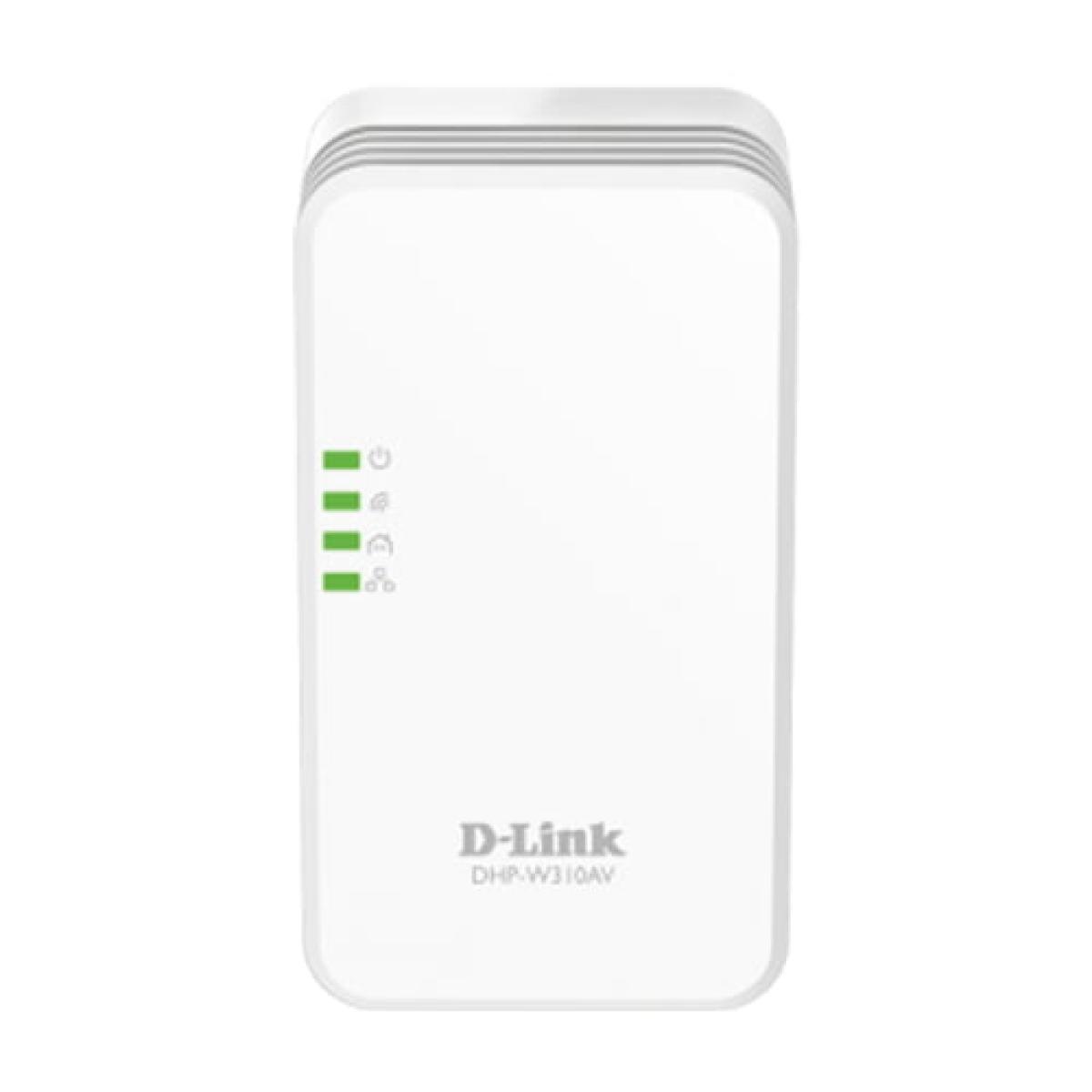

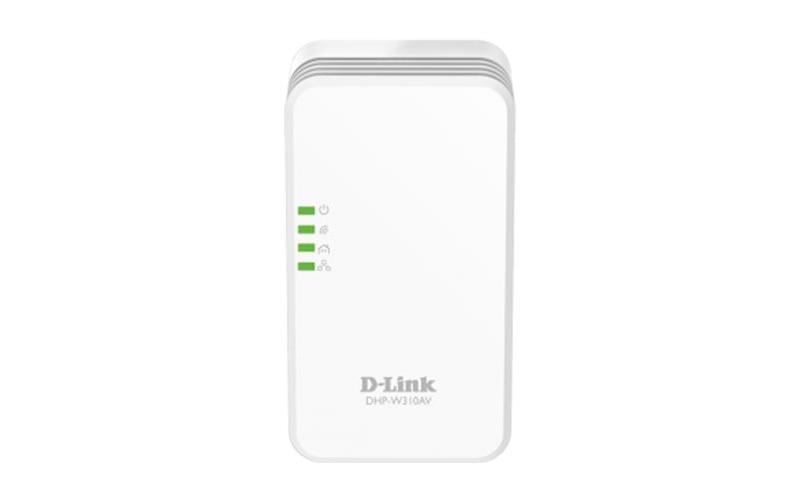

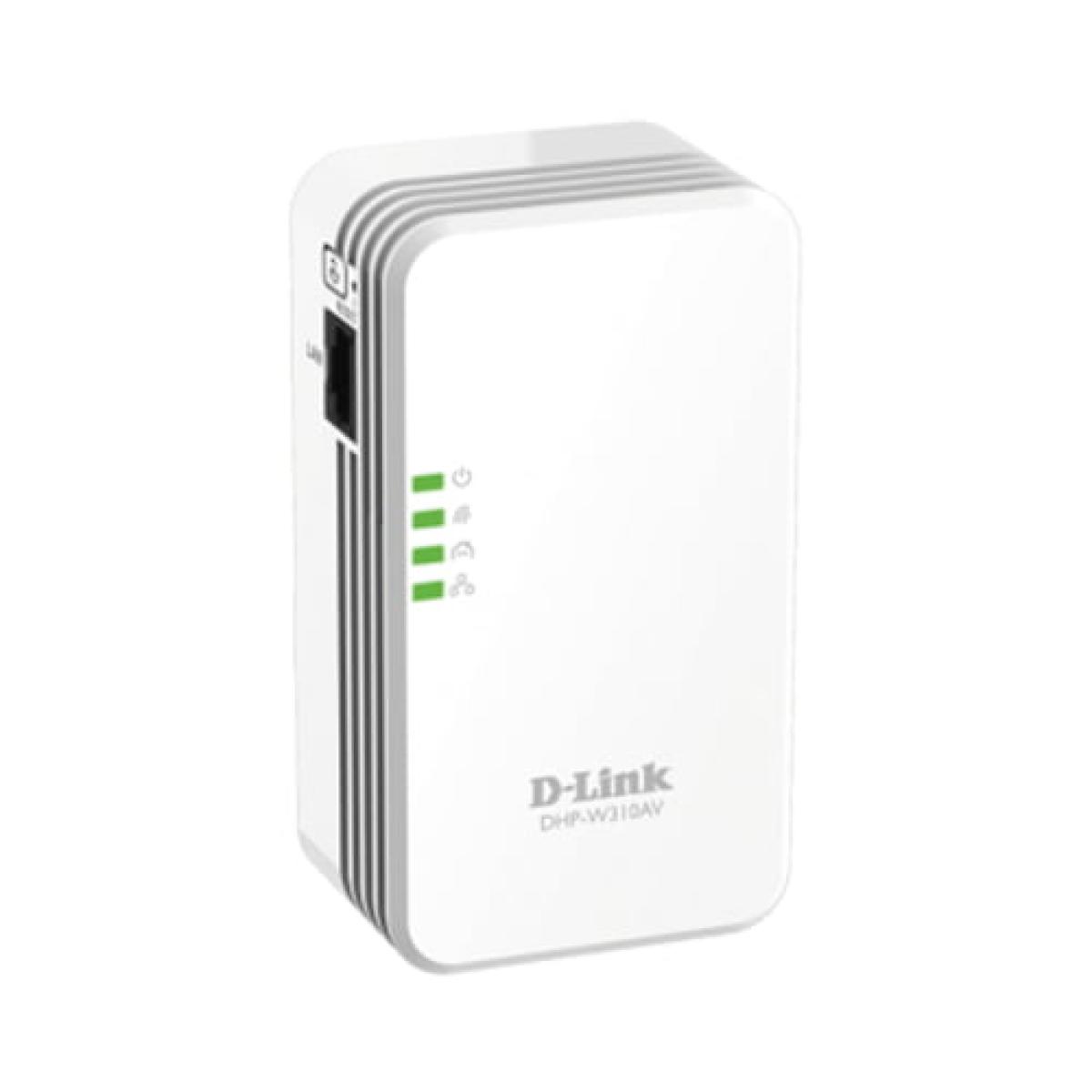

D-Link PowerLine AV500 Wireless N mini extender ( DHP-W310AV )

D-Link PowerLine AV500 Wireless N Mini Extender (DHP-W310AV)

The DHP-W310AV PowerLine AV 500 Wireless N Extender allows you to extend your existing home network to enjoy high-speed and reliable connectivity throughout your home. The PowerLine AV 500 Wireless N Mini Extender features both wireless and PowerLine. This allows you to benefit from PowerLine networking, compliant with the HomePlug AV standard that uses your existing home electrical wiring to extend your home network. The wireless ability allows you to increase the area in your home where you can use your wireless devices.

D-Link’s DHP-W310AV Powerline AV Wireless N Mini Extender makes it easy to create a high-speed network. Simply plug one adapter into your existing router to turn any power outlet in your home into an Internet connection and then plug the other adapter into the room you want to extend your connection to.

Standards

IEEE 802.3
IEEE 802.3u
HomePlug AV
IEEE 1901

PowerLine interface

Power plug (country-dependent)

Ethernet interface

10/100BASE-TX Ethernet port with Auto MDI/MDIX
RJ-45 connector

Input Power

100V ~ 240V, 50/60 Hz
6 W maximum

PowerLine modulation scheme

OFDM symbol modulation

PowerLine frequency band

2 MHz to 30 MHz

Data rates

PowerLine: up to 500 Mbps (PHY rate)
Ethernet: 10/100 Mbps (auto negotiation)

Security

128-bit AES link encryption

Minimum system requirements (For PC Utility Software)

Windows 7/Vista/XP SP3
Ethernet interface (100 Mbps)

LEDs

Power
PowerLine
Ethernet

Dimensions (H x L x W)

90 x 65 x 50 mm (each adapter)

Weight

174.8 g (EU, DHP-W310AV)
185.7 g (UK, DHP-W310AV)
110.7 g (DHP-308AV)

Operating temperature

0 to 40 ºC

Operating humidity

10% to 90% non-condensing

Certifications

FCC
CE EMC Class B
UL
CE LVD
